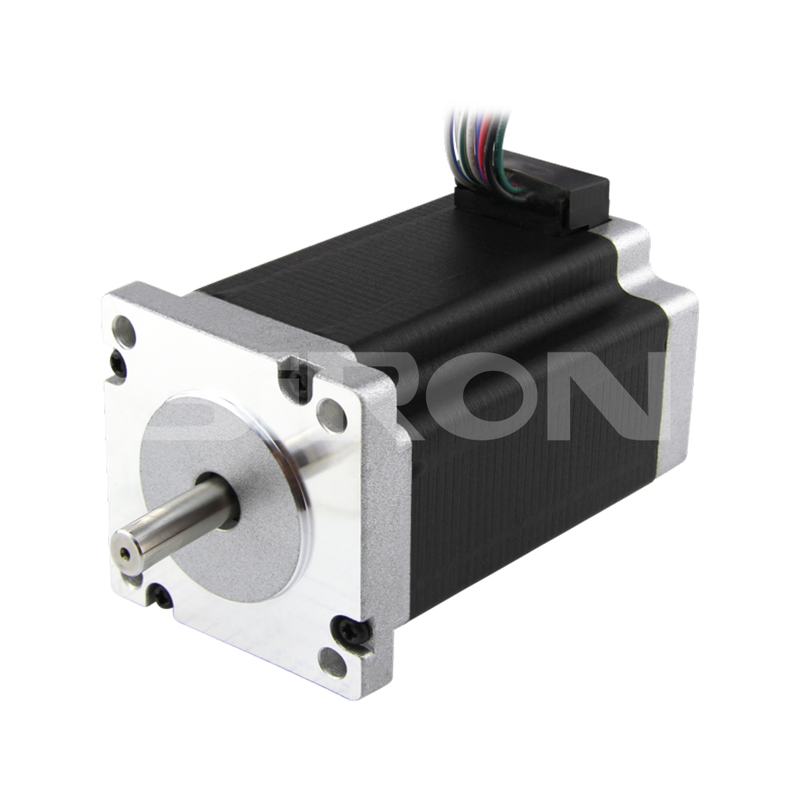

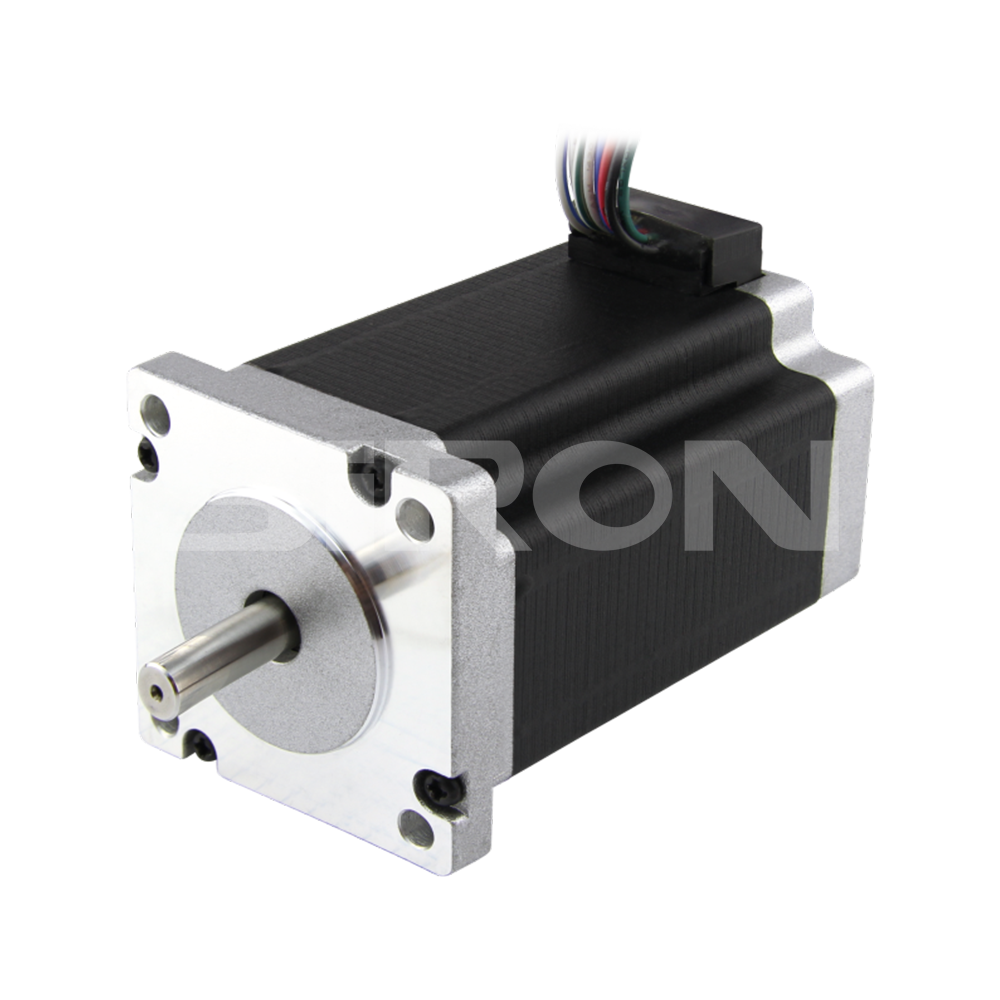

SiRON M271-60 Series Three-phase Stepper Motor

Name: SiRON M271-60 Series Three-phase Stepper Motor
Brand: SiRON
Rating: 5.0 (65 reviews)

Features

* 1.2° step angle, three-phase stepper motor;
* High resolution, low noise;
* High torque, low vibration, high efficiency;
* Precise position control;
* It can realize precise control and convenient adjustment.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M271-60
Brand:
SiRON
Code:
8501109990

1.2° step angle 60mm frame size 0.8N.m holding torque 1.1N.m holding torque

Product Description

About selection

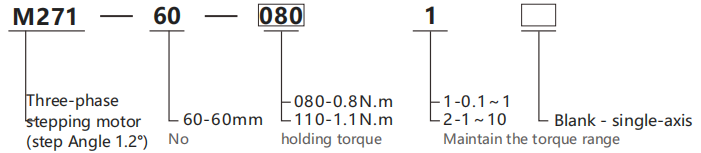

Selection example: M271-60-0801 represents the M271 series three-phase stepping motor, with a frame size of 60mm, a holding torque of 0.8N.m, and a single axis.

Specification

Model	M271-60 Series
Radial Play	0.02mm@450g	Step Angle	1.2°
Axial Play	0.08mm@450g	Step A ngle Accuracy	±5%(The entire step is unloaded)
Max.radial force	75N(20mm away from the flange）	Insulation Resistance	100MΩ,500VDC
Max.axial force	15N	Ambient Temperature	-20℃~+50℃
Dielectric Strength	600VAC/1s	Insulation Class	Class B

Electrical properties

Model	M271-60-0801	M271-60-1102
Adapter drive	M281-3606	M281-3606
Current per phase	1.5	1.5
Hokding torque	0.8	1.1
Positioning torque	0.07	0.09
Each resistance Each inductanoe	4.1 9.5	4.410
Number of lead wires	3	3
Moment ofinertia	260	460
weight	0.8	1.3

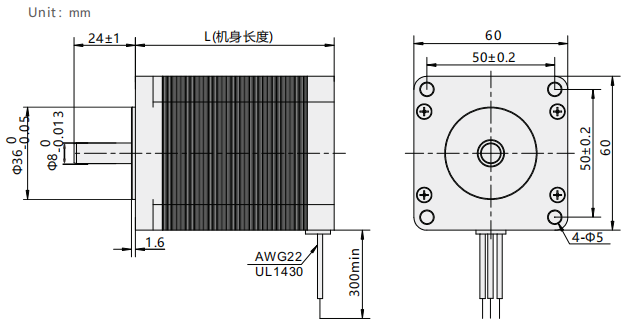

Body length	53.5	77.5
