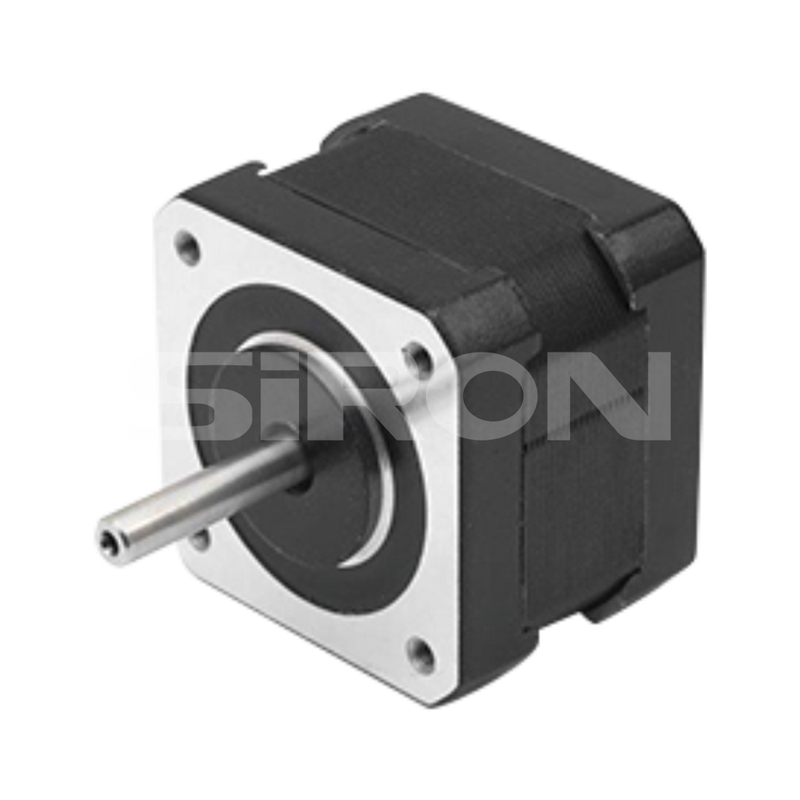

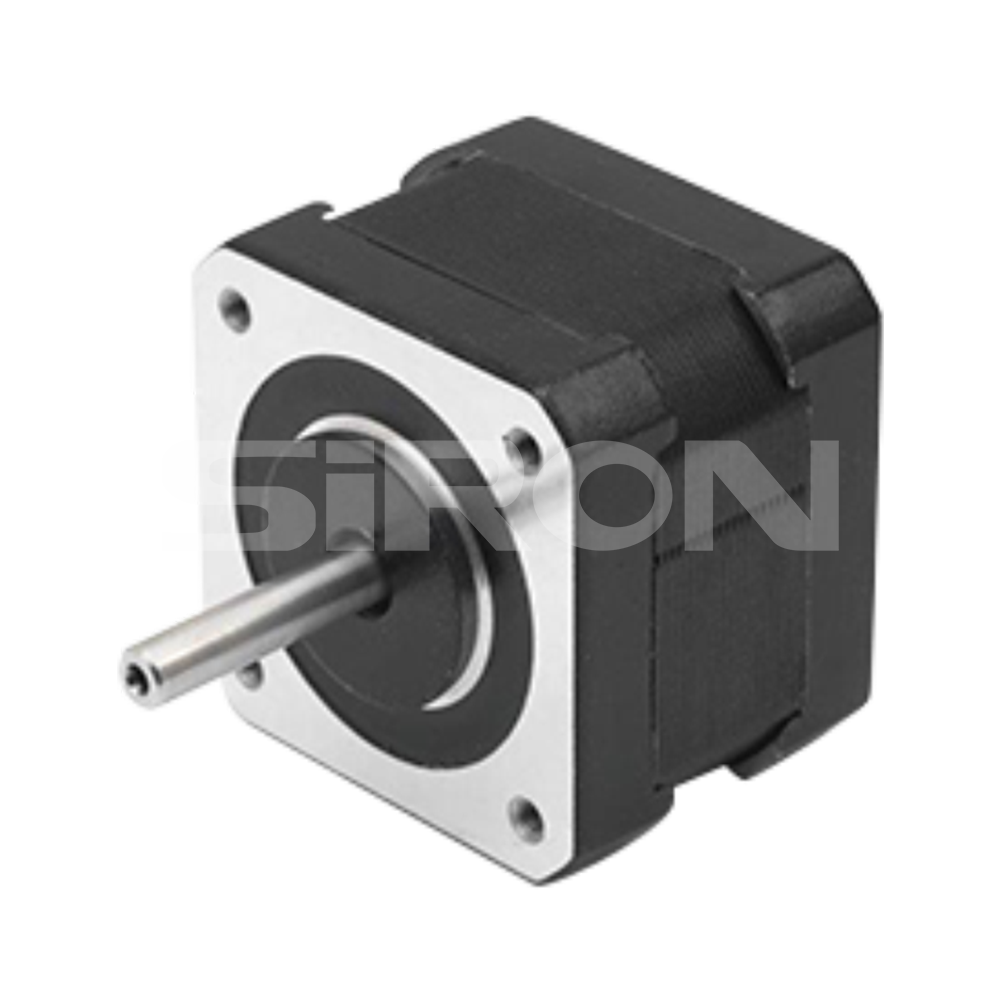

SiRON M271-42 Series Three-phase Stepper Motor

Name: SiRON M271-42 Series Three-phase Stepper Motor
Brand: SiRON
Rating: 5.0 (59 reviews)

Features

* 0.9° step angle;
* High resolution, low noise;
* High torque, low vibration, high efficiency;
* Precise position control;
* It can realize precise control and convenient adjustment.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M271-42
Brand:
SiRON
Code:
8501109990

1.2° step angle 42mm frame size 0.08N.m holding torque 0.196N.m holding torque

Product Description

About selection

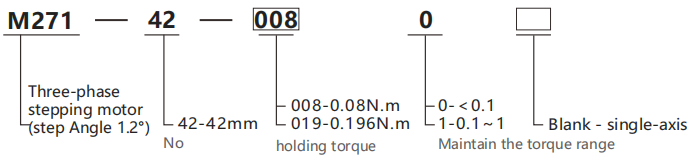

Selection example: M271-42-0080 represents the M271 series three-phase stepping motor, with a frame size of 42mm, a holding torque of 0.08N.m, and a single axis.

Electrical properties

Project	Parameter	Project	Parameter
StepAngle Accuracy	±5%(synchronizing)	Voltage resistance	500V AC1 minute
Resistance accuracy	±10%(20℃)	Radial Play	0.02mm Max(450g load)
Inductance accuracy	±20%(1KHZ)	Axial Play	0.08mm Max(450g load)
Temperaturerise	80℃ max(Rate curent,2is comected)	Insulation Resistance	100MΩ,500VDC
Ambient Temperature	-20℃~50℃

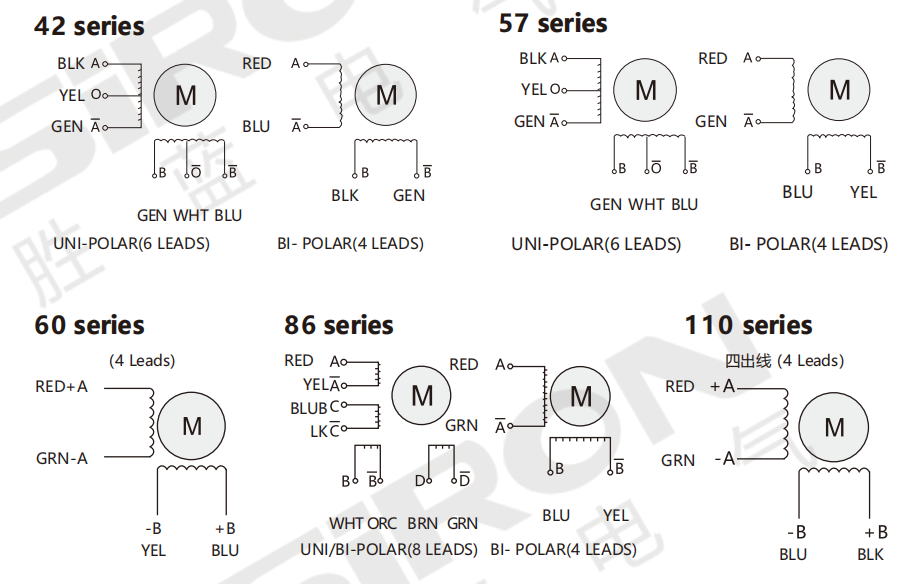

Wiring diagram

Specification

Model	M271-42 Series
Radial Play	0.02mm@450g	Step Angle	1.2°
Axial Play	0.08mm@450g	Step Angle Accuracy	±5%(The entire step is unloaded)
Max.radial force	28N(20mm away from the flange）	Insulation Resistance	100MΩ,500VDC
Max.axial force	10N	Ambient Temperature	-20℃~+50℃
Dielectric Strength	600VAC/1s	Insulation Class	Class B

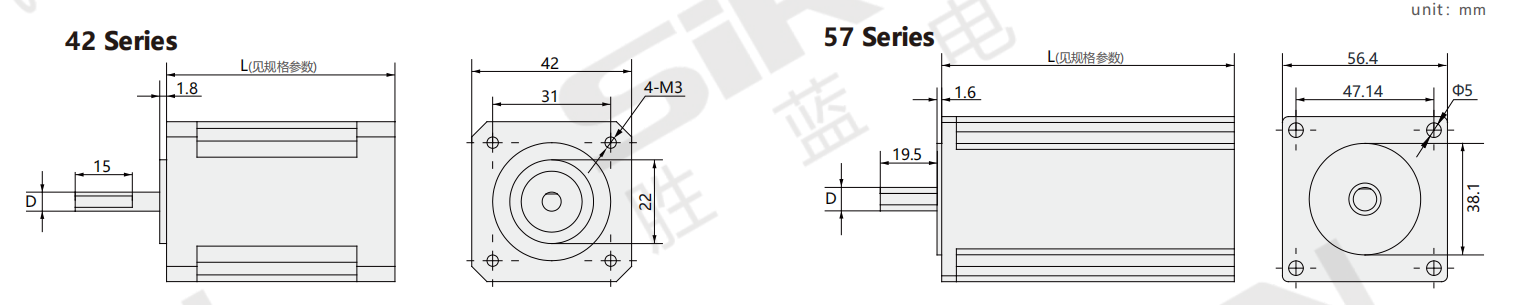

Dimensions

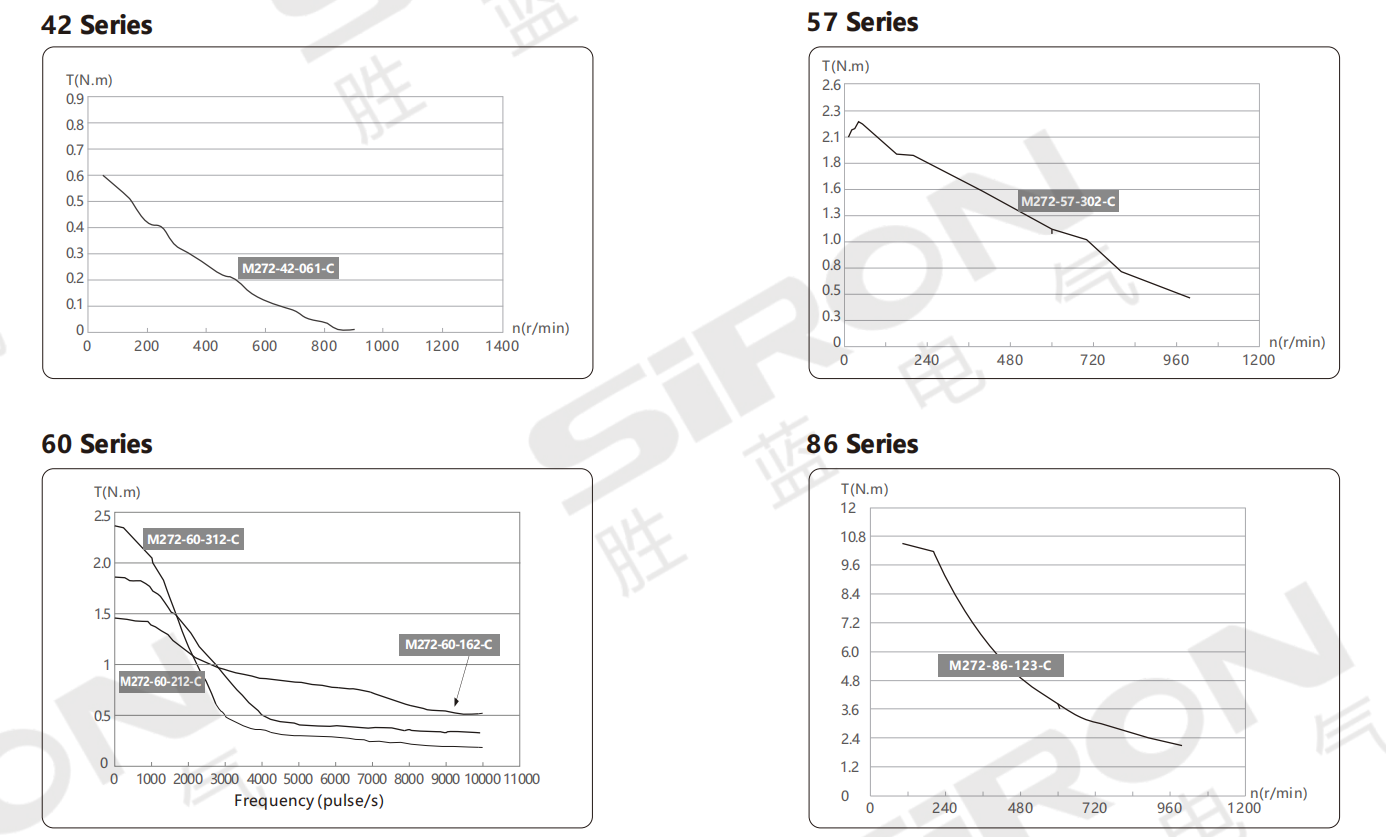

Ⅱ.57 series

Machine base number	57 series
Model	M272-57-061-C	M272-57-101-C	M272-57-152-C	M272-57-202-C	M272-57-222-C	M272-57-262-C	M272-57-302-C
Adapter drive	M280-542-C、M282-57R-C(RS485)、M282-357E-C(EtherCAT)
StepAngle	1.8°
Holding torque	0.6	1.0	1.5	2.0	2.2	2.6	3.0
Current perphase	2.5	3.0	3.0	3.0	4.0	4.0	4.0
Each resistance	1.2	0.8	0.8	1.0	1.1	1.4	1.6
Each inductance	3.2	2.4	2.3	3.5	2.1	5.5	6.8
Moment of inertia	120	300	400	480	530	700	800
Number of lead wires	4
weight	0.5	0.68	1.08	1.2	1.25	1.58	1.78
Body length	41	56	64	76	82	100	112
Shaft diameter D(mm)	φ6.35	φ6.35orφ8	φ6.35orφ8	φ6.35orφ8	φ8	φ8	φ8orφ10
Axis extension(mm)	platform 0.5×19.5
Axis length(mm)	21	21	21	21	21or24	21	21
Max.radial force	75N(20mm away from the flange)
Max.axial force	15N

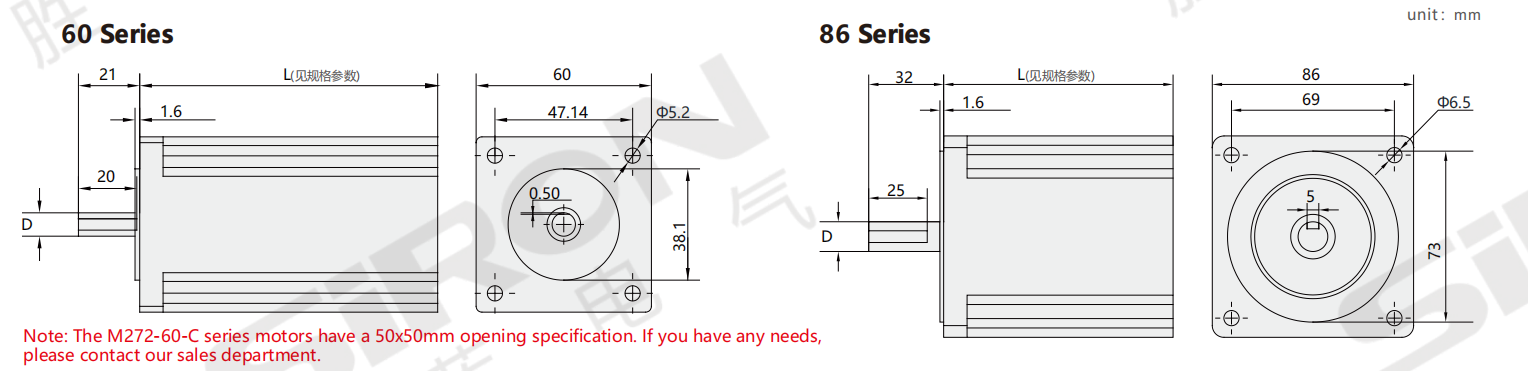

Dimensions

Ⅲ.60 series

Machine base number	60 series
Model	M272-60-162-C	M272-60-212-C	M272-60-252-C	M272-60-312-C	M272-60-352-C	M272-60-382-C
Adapter drive	M280-556-C、M282-57R-C(RS485)、M282-357E-C(EtherCAT)
StepAngle	1.8°
Holding torque	1.6	2.1	2.5	3.1	3.5	3.8
Current per phase	3.0
Each resistance	0.42	0.65	0.5	0.63	0.75	1.56
Each inductance	2.65	1.6	1.66	1.8	2.4	3.9
Moment of inertia	300	570	620	840	1000	1200
Number of lead wires	4
weight	0.85	1.0	1.1	1.29	1.65	1.807
Body length	58	65	76	84	102	112
Shaft diameter D(mm)	φ8
Axis extensian(mm)	platform 0.5×20
Axis length(mm)	21
Max.radial force	75N (20mm away from the flange)
Max.axial force	15N

Ⅳ.86 series

Machine base number	86 series
Model	M272-86-332-C	M272-86-452-C	M272-86-692-C	M272-86-852-C	M272-86-102-C	M272-86-123-C
Adapter drive	M280-860-C、M282-86R-C(RS485)、M282-386E-C(EtherCAT)
StepAngle	1.8°
Holding torque	3.3	4.5	6.9	8.5	10	12
Current per phase	3.0	5.0	5.0	6.0	6.0	6.0
Each resistance	0.6	0.7	0.98	0.49	1.3	1.4
Each inductance	1.6	3.0	4.1	3.58	5.8	9.2
Moment of inertia	1000	1400	2100	2800	3200	4000
Number oflead wires	4
weight	2.0	2.5	3.4	4.0	4.5	5.4
Body length	66	80	98	114	128	150
Shaft diameter D(mm)	中9.5	φ12.7 or φ14	φ12.7 or φ14	φ12.7 or φ14	φ12.7 or φ14	φ12.7or14 or φ15.8
Axis extension(mm)	platform 1×25	platform 1×25	flat key 5x5×25	flat key 5×5x25	flat key 5x5x25	flat key 5×5×25
Axis length(mm)	32
Max.radial force	130N (20mm away from the flange)
Max.axial force	30N

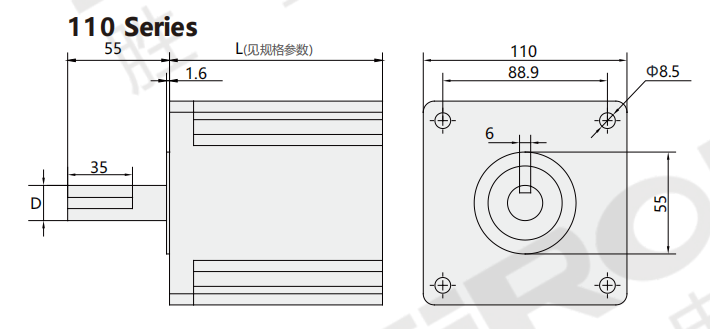

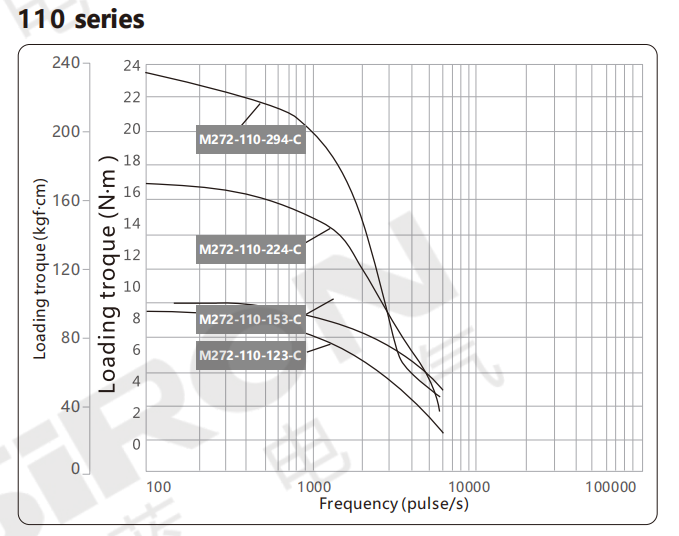

Ⅴ.110 series

Machine base number	110 series
Model	M272-110-123-C	M272-110-153-C	M272-110-224-C	M272-110-294-C
Adapter drive	M280-2280-C
StepAngle	1.8°
Holding torque	12	15	22	29
Current per phase	6.0	6.0	6.0	6.5
Each resistance	0.5	0.47	0.8	1.1
Each inductance	6.0	7.5	13.5	22
Moment of inertia	5500	7200	10900	16200
Number of lead wires	4
weight	5.0	6.0	8.4	11.7
Body length	99	115	150	201
Shaft diameter D(mm)	φ16	φ19	φ19	φ19
Axis extension(mm)	flat key 6x35
Axis length(mm)	55
Max.radial force	220N(20mm away from the flange)
Max.axial force	60N
