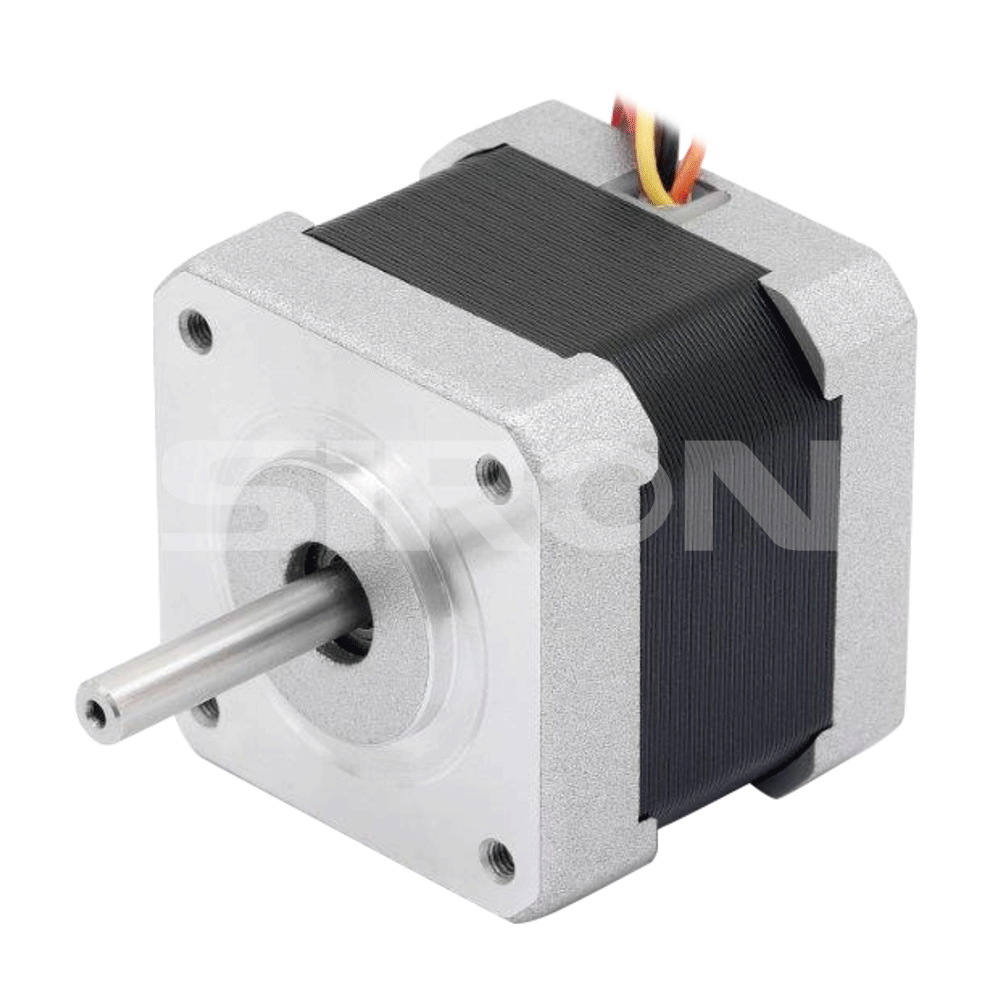

SiRON M270-39 Series Two-phase Stepper Motor

Name: SiRON M270-39 Series Two-phase Stepper Motor
Brand: SiRON
Rating: 5.0 (19 reviews)

Features

* 0.9° step angle;
* High resolution, low noise;
* High torque, low vibration, high efficiency;
* Precise position control;
* It can realize precise control and convenient adjustment.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M270-39
Brand:
SiRON
Code:
8501109990

0.9° step angle 39mm frame size 0.297N.m holding torque

Product Description

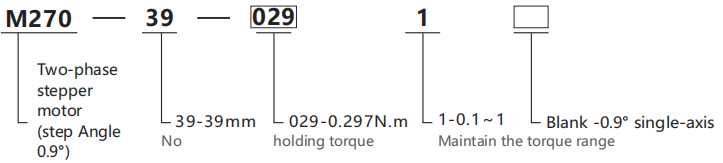

About selection

Selection example: M270-39-0291 represents the M270 series two-phase stepping motor, with a frame size of 39mm, a holding torque of 0.297N.m, and a 0.9° single-axis.

Specification

Model	M270-39-0291
Radial Play	0.02mm@450g	Step Angle	0.9°
Axial Play	0.08mm@450g	Step Angle Accuracy	±5%(The entire step is unloaded)
Max.radial force	28N(20mm away from the flange）	Insulation Resistance	100MΩ,500VDC
Max.axial force	10N	Ambient Temperature	-20℃~+50℃
Dielectric Strength	600VAC/1s	Insulation Class	Class B

Electrical properties

Model	M270-39-0291
Adapter drive	M280-430
Current per phase	0.28
Holding torque	0.297
Positioning tonque	0.02
Each resistance	60
Each inductance	145
Numberoflead wires	4
Moment of inertia	36
weight	0.29
Body length	44.5
