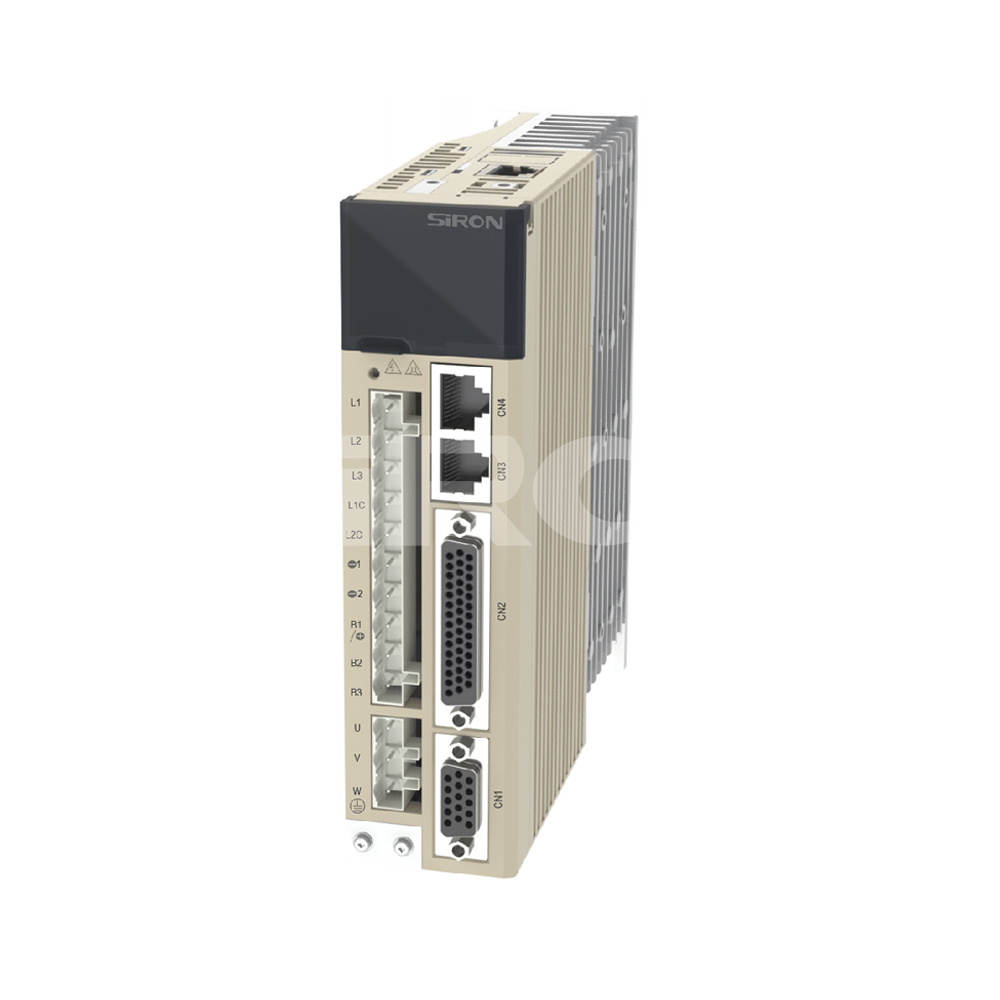

SiRON M214 AC 220V 400W Servo Motor

Name: SiRON M214 AC 220V 400W Servo Motor
Brand: SiRON
Rating: 5.0 (95 reviews)

Feature

* Fast operation speed and high positioning accuracy;
* Easy to debug, support load inertia identification function, shorten the product debugging process and save man-hours.
* Stable operation, equipped with two sets of notch filters, adjustable and notch depth, effectively overcome low-frequency
resonance and vibration at the end of the machine;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M214
Brand:
SiRON
Code:
8503009090

AC220V Servo Motor 400W Servo Motor 750W Servo Motor 1500W Servo Motor

Product Description

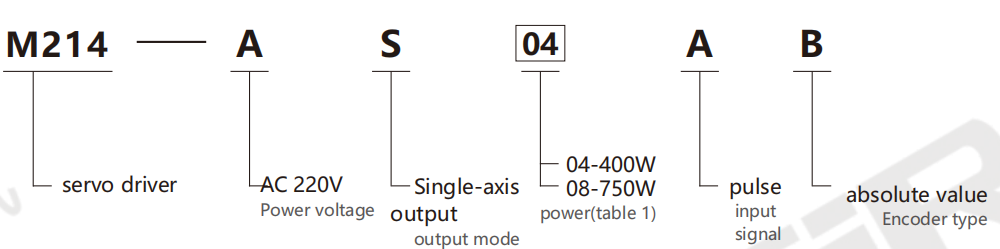

About selection

企业微信截图_17550848558842

Note: 1. Power supply voltage AC220V: The power selectable range is 400 to 3000W.The M214 series serv o drives can be matched with M203 and M203 series servo motors.

Selection example: M214-AS04AB represents the M214 series servo driver, with a power supply voltage of AC220V, single-axis output mode, power of 400W, input signal of pulse, and encoder type of absolute value.

Table 1: Power

Code	04	08	15	22	30
Power	400W	750W	1500W	2200W	3000W
Rated current	2.8A	5.5A	10A	16A	16A

Specification

Name		M214 series servo drive
Iudutpower	Control method	Three-phase PWM converter sinusoidal wave drive

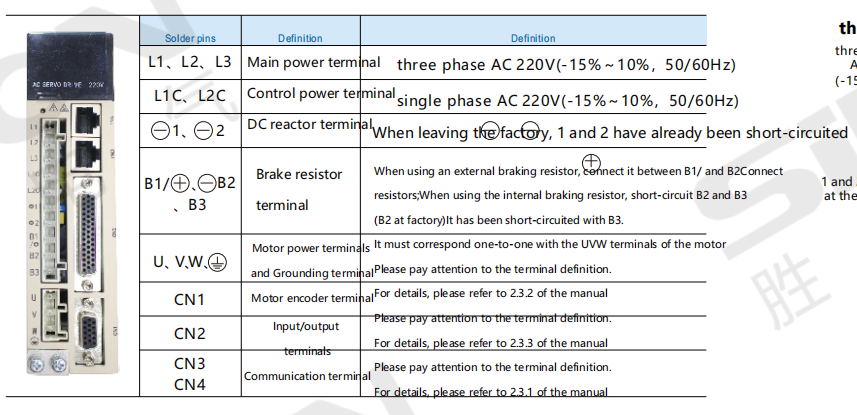

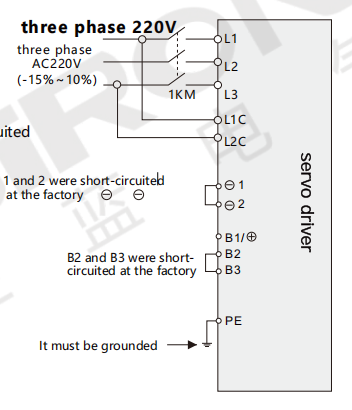

	Main circuit power supply	Three-phase 220V AC(-15～+10%,50～60Hz)
	Control power	Single-phase 220V AC(-15～+10%,50～60Hz)
	Rated current	0.4kW/2.8A,0.75kW/5.5A,1.5kW/10A,2.2kW/12A,3kW/16A

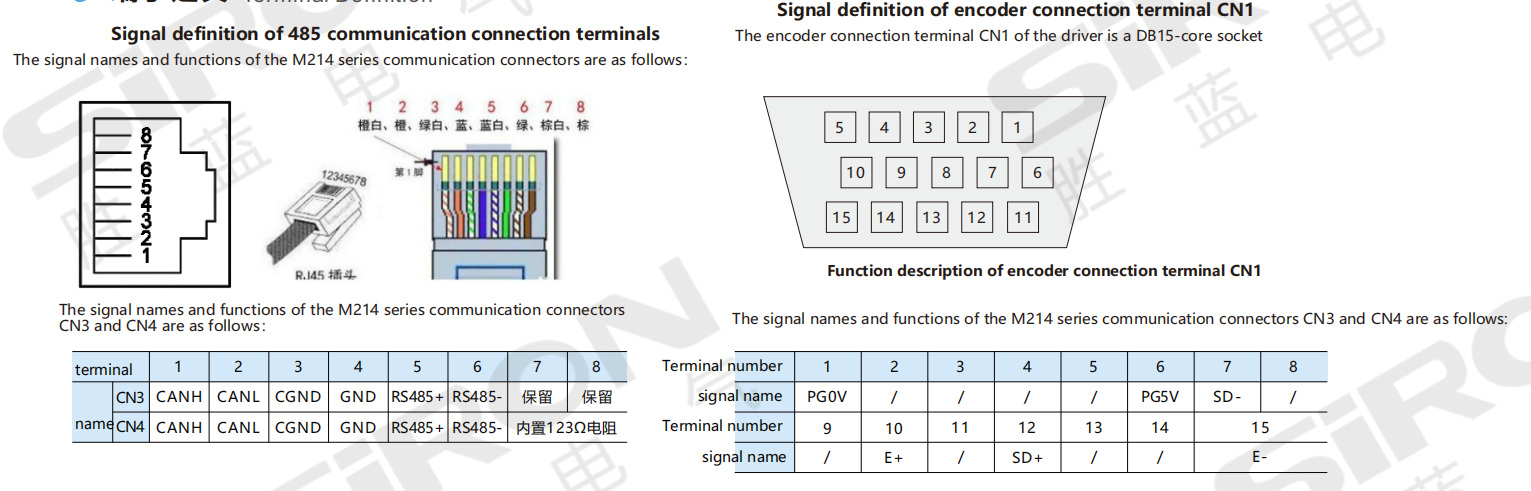

	Encoder feedback	Serial encoder,supporting the Tama River protocol
Tmperatureandhumidityenvironment	Use environment temperature	0～45℃
	Storage temperature	-20～65℃
	Use environment humidity	Below 20 to 85%RH(no condensation)
	Storage environment humidity	Below 20 to 85%RH(no condensation)
	Use to preserve ambient air	Indoors(without direct sunlight),free from corrosive gases,flammable gases,oil mists and dust
	Altitude	Below 1,000 meters in altitude
	Vibration	Below 5.8m/s 2(0.6G),10～60Hz(cannot be used continuously at resonant frequency)
	Insulation withstand voltage IO input	8 inputs (DC24V optocoupler isolation) can be selected based ON parameters for input functions: servo ON, P action, prohibition of forward rotation, prohibition of reverse rotation, alarm reset, forward rotation torque limit, reverse rotation torque limit, control mode switching, zero position fixed, deviation reset, internal set speed switching *2, motor selection direction switching

Functon introducton	IO output	4-channel optocoupler isolated output; The output functions can be selected based on parameters: alarm outp ut, positioning proximity, consistent speed detection, motor rotation detection, servo preparation, torque limit, speed limit, and brake release


	Pulse input	Differential input: 500K; Collector open circuit: 200K Supports pulse + direction, AB orthogonal pulse CW+CCW pluse

	Internal speed command	Phase A and Phase B: Differential output, with arbitrary frequency division. Phase Z: Differential output or collector open-circuit output through input
	Overload capacity	The terminal is allocated with three speeds
	Analog input	Maximum three times the torque
	Communication function	Modbus Communication
	Control mode	12 control modes: Position control, speed control, torque control, internal speed, position/speed control, position/torque control, speed/torque control, internal speed/position, internal speed/speed, internal speed/torque, speed/zero clamping, position control/command prohibition

	Regenerative resistance	400W: No external regenerative resistor; Over 750W: Yes
