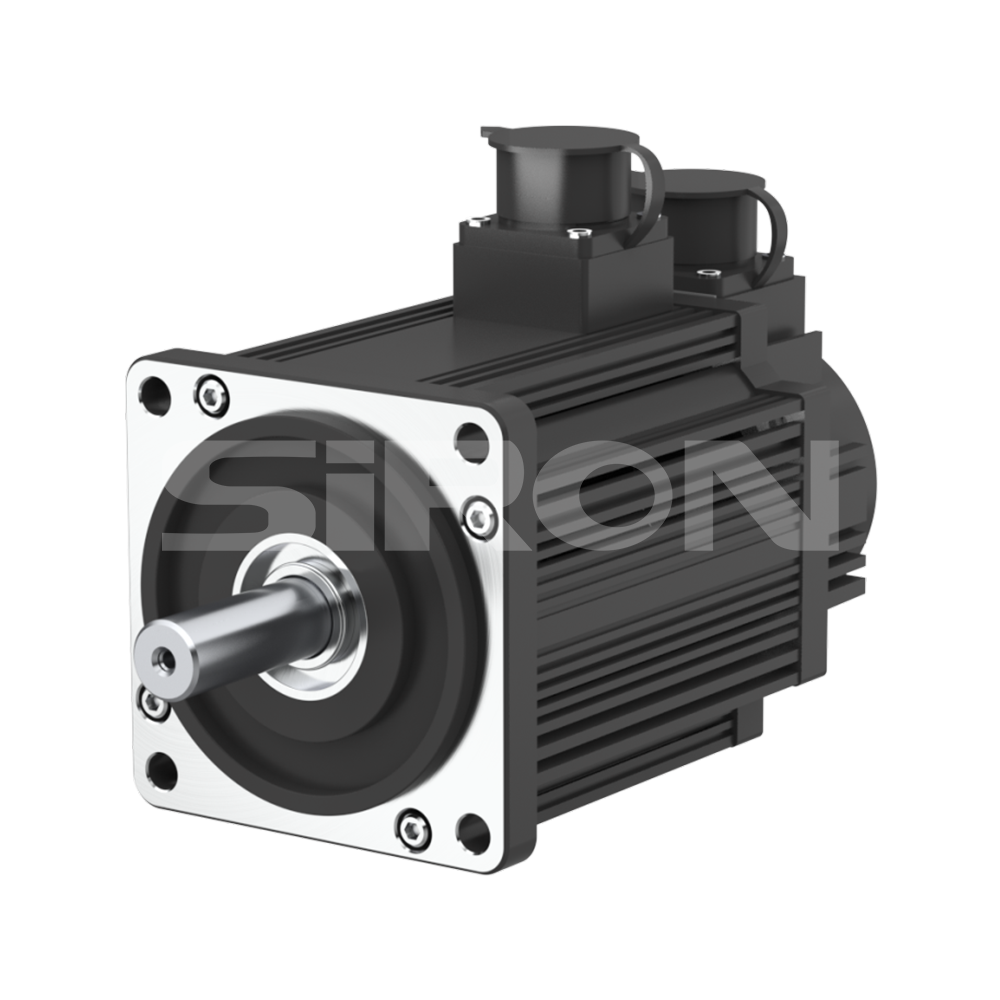

SiRON M203 AC 220V 380V 80 110 130 150 180 Flange Servo Motor

Name: SiRON M203 AC 220V 380V 80 110 130 150 180 Flange Servo Motor
Brand: SiRON
Rating: 5.0 (28 reviews)

Feature

* Encoder type: photoelectric incremental 10000 lines, multi-turn absolute value 23bit;
* Adopt new technology, compact structure, short body and small volume;
* Used in joint robots, reclaiming robots, high-end electronic equipment and CNC engraving and milling

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M203
Brand:
SiRON
Code:
8503009090

AC220V Servo Motor 110 Flange Servo Motor 130 Flange Servo Motor 80 Flange Servo Motor 150 Flange Servo Motor 180 Flange Servo Motor AC380V Servo Motor

Product Description

About selection

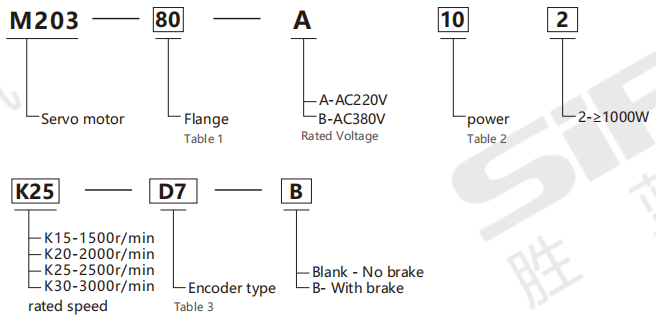

企业微信截图_17582766882175

Selection example: M203-80-A102K25-D7-B represents the M203 series servo motor, with a flange size of 80mm, a rated voltage of AC220V, a power of 1kW, a rated speed of 2500r/min, a photoelectric increment of 10,000 wires, and a brake.

Table 1: Flanges

Code	80	110	130	150	180
flange size	80mm	110mm	130mm	150mm	180mm

Table 2:Power

1.0kw～7.5kw

Code	10	12	13	15	18	20	23	26	27	29
Power	1.0kW	1.2kW	1.3kW	1.5kW	1.8kW	2.0kW	2.3kW	2.6kW	2.7kW	2.9kW
Code	30	36	38	43	45	47	55	68	75	/
Power	3.0kW	3.6kW	3.8kW	4.3kW	4.5kW	4.7kW	5.5kW	6.8kW	7.5kW	/

Table 3:Encoder Types

Code	D7			D10
Encodertype	17-bit absolute value			23-bit absolute value

Specification

Ⅰ、40 flanges (220V )

Flange series	80 flange series
Motor model	M203-80-A102K25-D7
Rated power	1.00
Rated/Maximum torque	4/12
Batedspaod	2500
RatadMaximumcurrant	4.4/13.2
Torque oonstant	0.9
Back EMF	56
Number ofpole pairs	4
Rotor inertia(without brake)	2.97×10⁻⁴
Rotorinertia(with brake)	3×10⁴
Wire resistance/Line inductance	1.83/4.72
Lwithout/with brake	191/231
Inertia type	Medium Inertia
