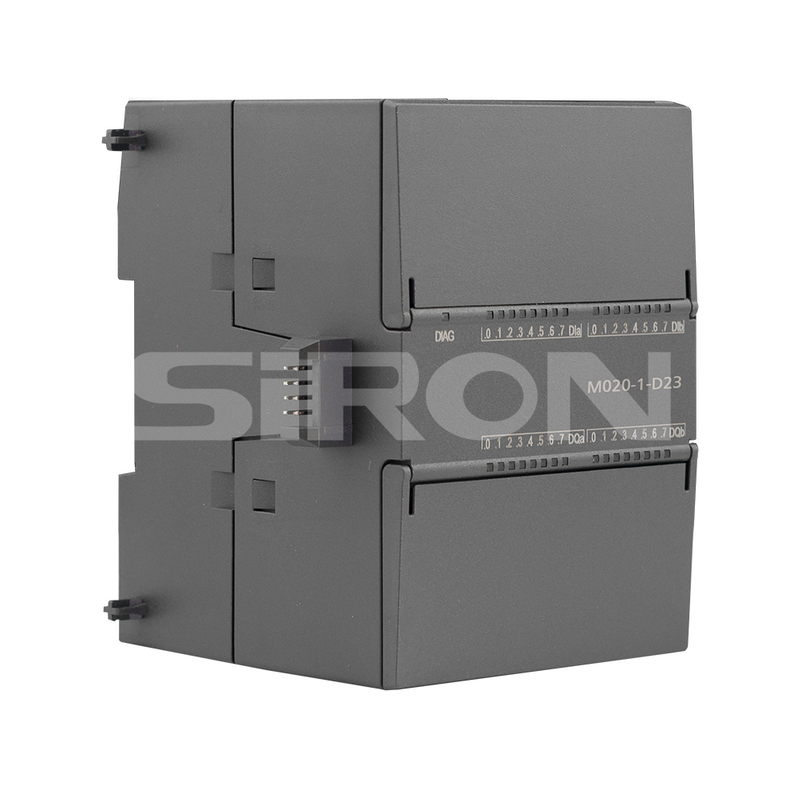

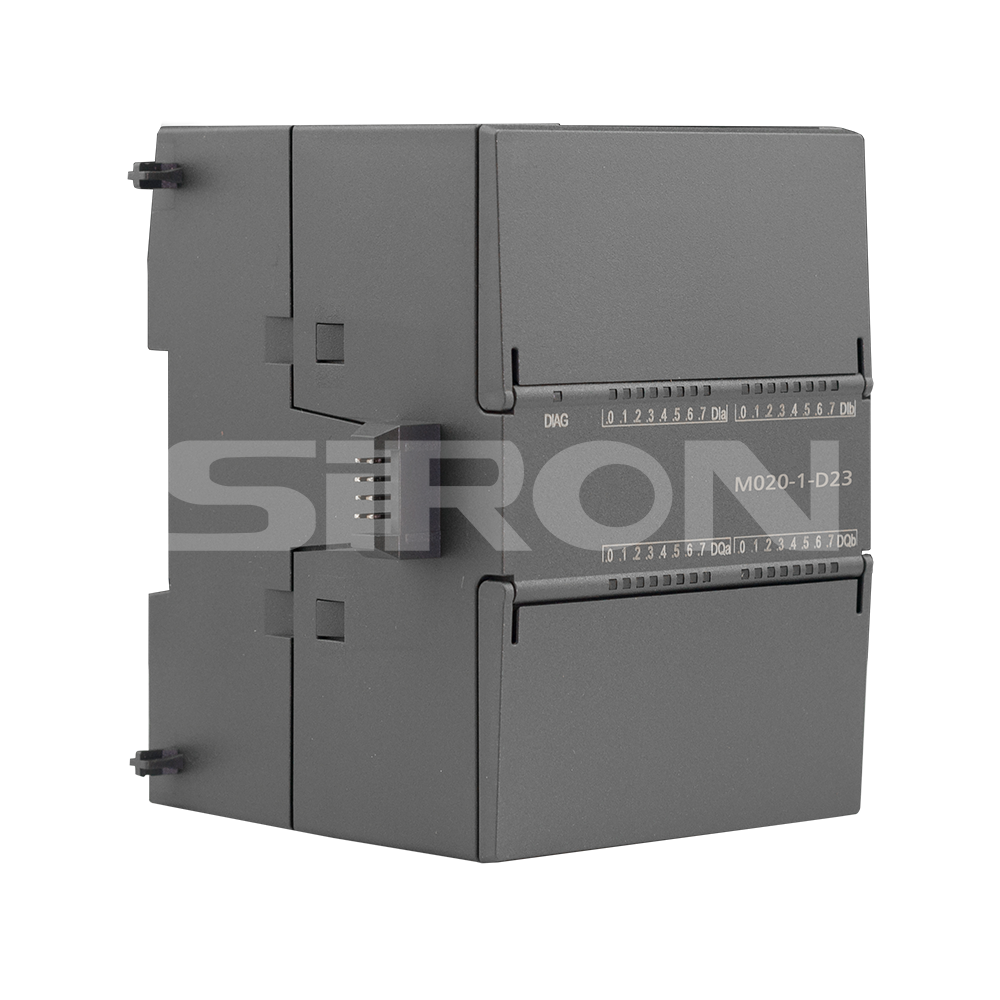

M020-1-D
SiRON
8537101101

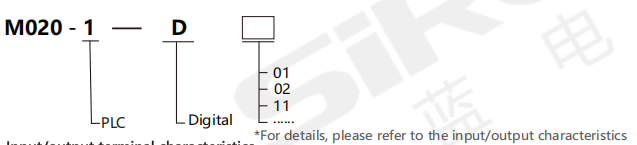

About selection
| Code | type | Input/output characteristics |
| 01 | input module | 8 digital(8x24V DC input) |
| 02 | 16 digital (16x24V DC input) | |
| 11 | output module | 8 digital(8x relay output) |
| 12 | 8 digital(8x24VDC transistor output) | |
| 13 | 16 digital(16x24VDC transistor output) | |
| 14 | 16 digital(16x relay output) | |
| 21 | input/output module | 16 digital(8x24V DC input/8x relay output) |
| 22 | 16 digital(8x24V DC input/8x24V DC transistor output | |
| 23 | 32 digital（16x24V DC input /16x relay output） | |
| 24 | 32 digital（16x24V DC input /16x24V DC transistor output) |
Environmental Conditions
| Operating Temperature | 10℃ to 60℃(horizontal installation),-10℃ to 40℃(vertical installation) |
| Trarsport Ambient Temperature | -20℃~80℃ |
| Envronmertal Pelative Humicity | 5-95%,no condensation (RH grade 2,in compliance with IEC60068-2) |
| Protective Grade | IP20 |
| Mechanical Level(Vibration) | EC6131-2 |
| Ground | Type D grounding(grounding resistance:below 100Ω)is not allowed to be grounded together with the strong currentsystem |
| Use Environmental | Locations where corrosive,flammable gases and conductive dust (dust)are not severe |
| Use High | Below 2000M (Cannot be used in an environment pressurized to above atmospheric pressure,otherwise malfunction may occur) |
Specification
Digital input module
| Model | M020-1-D01 | M020-1-D02 | |
Appearance |   |  | |
| Input/Output Module Type | Digital input module | ||
| Power Consumption | 1.5W | 2.3W | |
| CurrentConsumpton (SM bus) | 105mA | ||
| Current consumption(24VDC) | The input at each point used is 4mA | ||
| Digjita l nput | Input Point Number | 8 | 16 |
| Type | NPN/PNP | ||
| Fixed Voltage | 24VDC at 4mA,rated value | ||
| Allow Continuous Voltage | Max 30V DC | ||
| Wave Voltage | 35V DC,lasting for 0.5 seconds | ||
| Logical 1 Signal(minimum) | 15V DC at 2.5mA | ||
| Logic O signal (max) | 1mA,5V DC | ||
| Isolation(site And Logic Side) | 500V DC,lasting for 1 minute | ||
| Isolation Group | 2 | 4 | |
| Concurrent Input | 8 | 16 | |
| Cable Length | 500m(shielded),300m(unshielded) | ||
Digital output module
| Model | M020-1-D11 | M020-1-D12 | M020-1-D13 | M020-1-D14 | |
| Appearance | | | | | |
| lnput/Output Module Type | Digital output module | ||||
| Power Consumption | 4.5W | 1.5W | 4.5W | 1.7W | |
| Curent Consumption (SM bus) | 120mA | 110mA | 120mA | ||
| Digital output | Output Point | 8 | 16 | ||
| Type | Relay,dry contact | Solid-state -transistor(PNP) | Relay,dry contact | Solid-state -transistor(PNP) | |
| Woltage Range | 5~30V DC or 5~250V AC | 20.4~28.8V DC | 5~30V DC or 5~250V AC | 20.4~28.8V DC | |
| The maxmum anert bgi 1 sgnal | 一 | 20V | 一 | 20V | |
| Logit Osignalat 10 KQload | 一 | 0.1V | 一 | 0.1V | |
| Rated current per point (max) | 2.0A | 0.75A | 2.0A | 0.75A | |
| Light Load | 30W DC/200W AC | 5W | 30W DC/200W AC | 5W | |
| Grss-point Resistance | The maximum value of the new dev | ice is 02Ω 0.6Ω | The maximum value of the new devi | ce is 0.20 0.6Ω | |
| Leakage Current | 10μA | 一 | 10μA | ||
| Wave Current | It is 7A when the contact is dosed | 8A,lasting for 100ms | It is 7A when the contact is closed | 8A,lasting for 100ms | |
| Protective Protection | no | ||||
| sdation fel sdeand logit sdle) | 1500V AC,lasting for 1 minute Coil and contact: None (coil and logic side) | 500VAC,lasting for 1min | 1500V AC,lasting for1 minute Coil and contact None (coil and logic side) | 500V AC,lasting for 1min | |
| Isolation Resistance | The minimum resistance of the new device is 100MΩ | 一 | The minimum resistance of the new device is 100MΩ | 一 | |
| Insulation Between Breakpoint | 750V AC,lasting for 1min | 一 | 750VAC,lasting for 1min | 一 | |
| Isolation Group | 2 | 2 | 4 | 4 | |
| Current current(largest) | 8A | 3A | 8A | 3A | |
| Switch Delay | Up to 10ms | The maximum distance from disconnection ta connection is 50μsThe longest connection to disconnection is 200μs | Up to 10ms | The maximum distance from disconnection connection is 50μsThe longestconnection t disconnection is 200μs | |
| Mechanical Life(hee load) | 10,000,000 open/closed cycles | - | 10,000,000 open/closed cycles | - | |
| Contact life underrated load | 100,000 open/closed cycles | 一 | 100,000 open/closed cycles | 一 | |
| Output status in STOP mode | Previous value or replacement value(default value is 0) | ||||
| Concurrent Output | 8 | 16 | |||
| Cable length | 500m(shielded),150m(unshielded) | ||||
Digital input/output module
| Model | M020-1-D21 | M020-1-D22 | M020-1-D23 | M020-1-D24 | |
| Appearance | | | | | |
| lnput/Output Module Type | Digital input/output module | ||||
| Weight | 201.9g | 179.7g | 295.4g | 257.3g | |
| Power Consumption | 5.5W | 2.5W | 10W | 4.5W | |
| Current Consumption (sm Bus) | 145mA | 180mA | 185mA | ||
| Current consumption (24 VDC | The input at each point usedis 4mA | ||||
| Each relay coil used is 11mA | 一 | Each relay coil used is 11mA | 一 | ||
| Digital lnput | hnput Point | 8 | 16 | ||
| Type | NPN/PNP | ||||
| Fixed Voltage | Rated voltage:24VDC at 4mA,rated value;Permissible continuous voltage:up to 30V DC | ||||
| Wave Voltage | 35VDC,lasting for 0.5 seconds | ||||
| Signal | Logic 1 signal(minimum)15VDC;Logic O signal (maximum)5VDC | ||||
| boltion fl sileand bgic sdle) | 500VAC,asting for 1min | ||||
| Digitallnput | bsolationGroup | 2 | |||
| Concurrent Input | 8 | 16 | |||
| Cable Length | 500m (shielded),150m(unshielded) | ||||
| Model | M020-1-D21 | M020-1-D22 | M020-1-D23 | M020-1-D24 | |
| Interfd iital outputace | Output Point | 8 | 16 | ||
| Type | Relay,dry contact | Solid-state Transistor(PNP) | Relay,dry contact | Solid-state Transistor(PNP) | |
| Voltage Range | 5~30V DC or 5~250V AC | 20.4～28.8V DC | 5~30V DC or 5~250V AC | 20.4～28.8V DC | |
| The maximum curert logic 1signal | 一 | Min 20V DC | 一 | Min 20V DC | |
| Logic O signal at 10KQload | 一 | Max 0.1V DC | 一 | Max 0.1V DC | |
| Rated current per point (max) | 2.0A | 0.75A | 2.0A | 0.75A | |
| Light Load | 30W DC/200W AC | 5W | 30W DC/200W AC | 5W | |
| On-state Contact Resistance | The maximum value of the new device is 0.20 | Max 0.6Ω | The maximum value of the new device is 0.2Ω | Max 0.6Ω | |
| Leakage Current | 一 | Max 10 μA | 一 | Max 10μA | |
| Surge Current | It is 7A when the contact is closed | 8A,maximum duration 100ms | It is 7A when the contact is closed | 8A,maximum duration 100ms | |
| Overload Protection | no | ||||
| Isolation (field side and logic side) | 1500V AC,continuous for 1minute (coil and contacts)No(coil and logic side) | 500V AC,lasting for 1min | 1500VAC,continuous for 1 minute (coil and contacts)No(coil and logic side) | 500V AC,lasting for 1min | |
| Isolation Resistance | The minimum resistance of the new device is | 一 | The minimum resistance of the new device is 100MΩ | 一 | |
| suaign Between Dsconnected | 100MQ 750V AC,lasting for 1min | 一 | 750V AC,lasting for 1min | 一 | |
| lsolation Group | 2 | 2 | 4 | 3 | |
| Current current(largest) | 8A | 3A | 8A | 6A | |
| Indudance Clamping Voltage | 一 | -48V | 一 | -48V | |
| Switch Delay | The maximum distance from disconnection to connection is 50 μsThe longest connection to disconnection is 200μs | onnection is 50 Max 10ms 00μs | The maximum distance from disconnection to connection is 50 μsThe longest connection to disconnection is 200μs | Max 10ms | |
| Mechanical Lifefree Load) | 10,000,000 open/closed cycles | 10,000,000 open/closed cycles | 一 | ||
| Contact life under rated load | 100,000 open/closed cycles | 一 | 100,000 open/closed cycles | 一 | |
| Output status in STOPmode | Previous value or replacement value(default value is 0) | ||||
| Concurrent Output | 8 | 16 | |||
| Cable Length | 500m(shielded),150m(unshielded) | ||||
