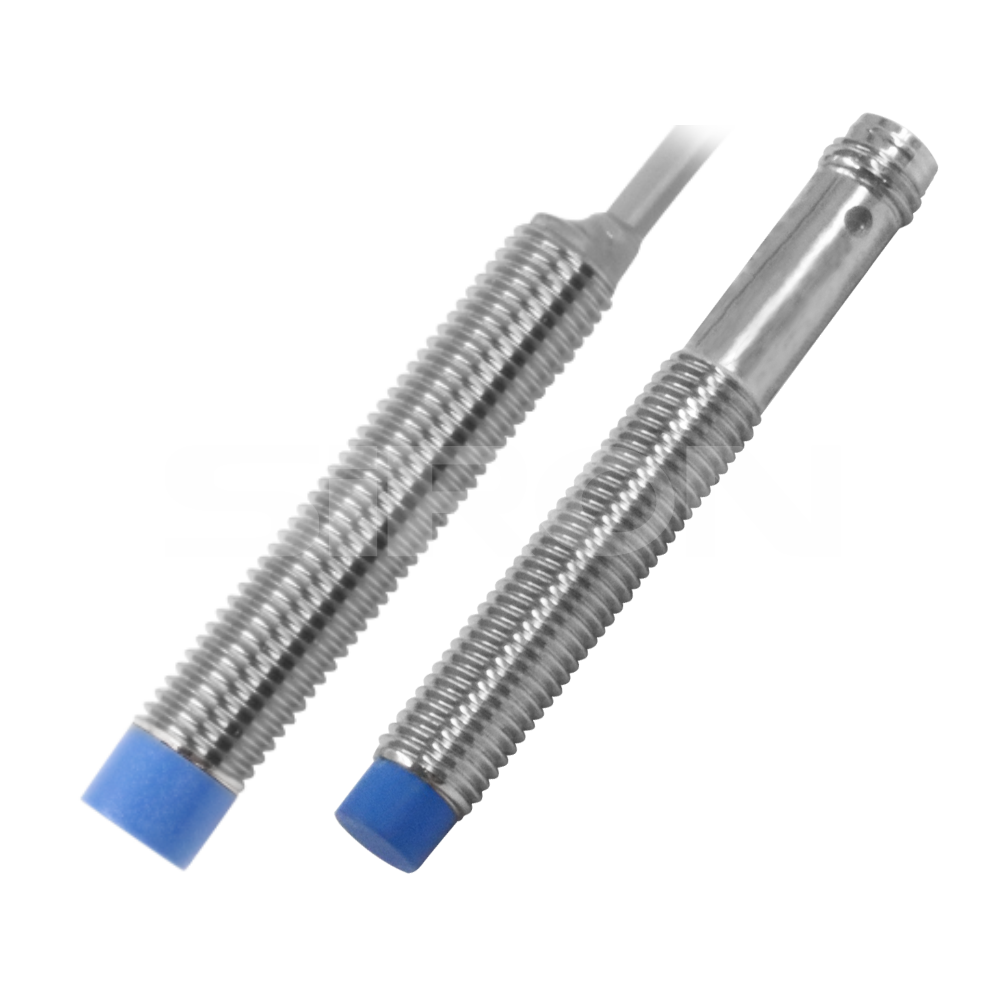

SiRON K044-1～K044-2 M8 Capacitive Proximity Switch

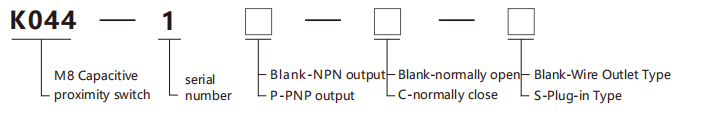

About selection

Selection example：K044-1 indicates the K044 series, serial number 1, with NPN output,                                                                                                         normally open state, Wire Outlet Type；

                                            K044-1P-S indicates the K044 series，serial number 1, with PNP output,

                                            normally open state, Plug-in Type.

Specifications

Name		M8 capacitive proximity switch
Model	NPNN.O	K044-1	K044-1-S	K044-2	K044-2-S
	NPNN.C	K044-1C	K044-1C-S	K044-2C	K044-2C-S
	PNP N.O	K044-1P	K044-1P-S	K044-2P	K044-2P-S
	PNP N.C	K044-1P-C	K044-1P-C-S	K044-2P-C	K044-2P-C-S
Wring Form		Wire Outlet Type	Plug-in Type	Wire Outlet Type	Plug-in Type

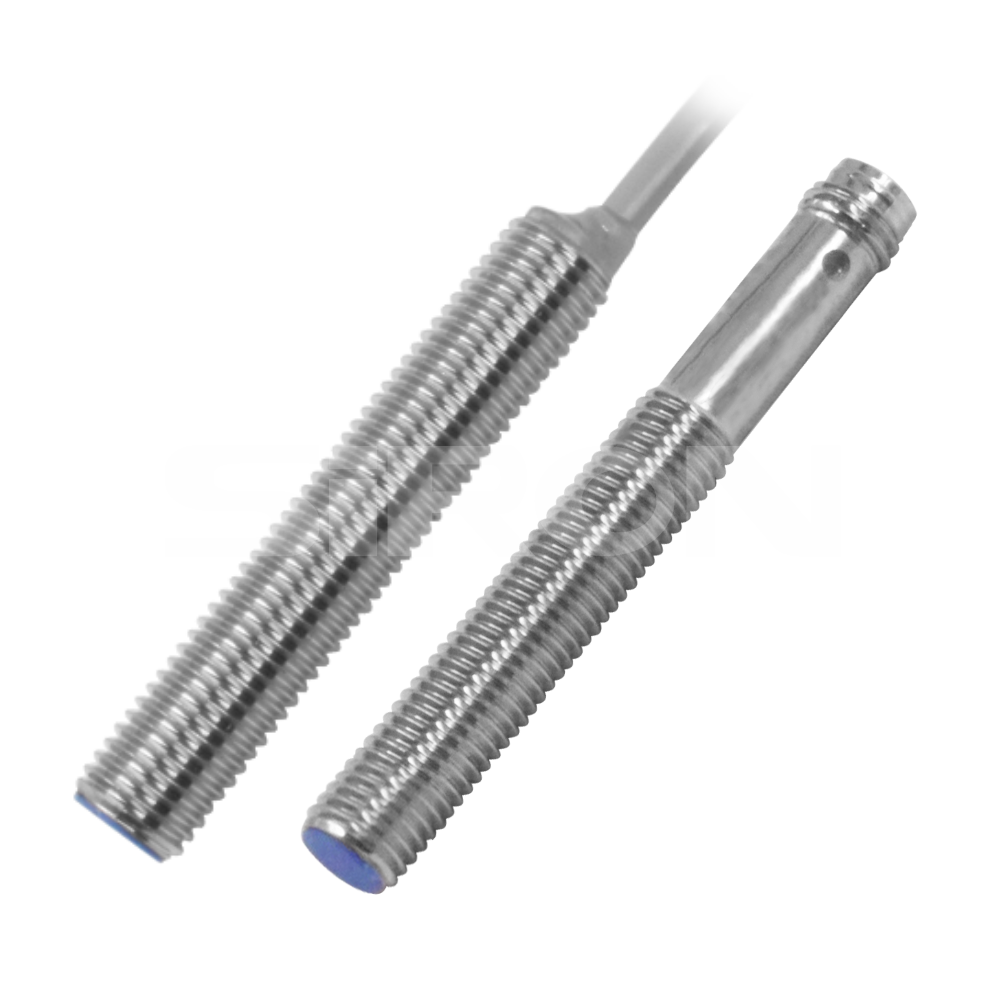

Appearance
Detection distance		1mm		2mm
Installation		Flush installation		Non-flush installation
Thread		M8×1mm
Operating Voltage		10～30V DC
On-offlevel		100Hz
Pressure drop		<2VDC
Load current		100mA
No-load current		<10mA(24V)
Hysteresis		<15%(Sr)
Repeatability		<5%(Sr)
Ambient temperature		-25～70℃
Enclosure rating		IP67
Material		Sensing surface: PBT; Shell: Copper plated with nickel
Cable		Wire Outlet Type：PVC cable；3×0.18mm²；Plug-in Type：M8 Connector
Cable length		2M

Example

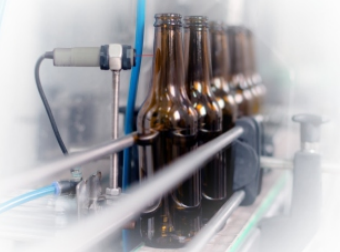

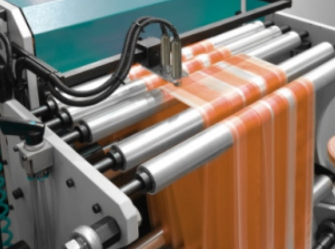

Detect the liquid level of the filled products                          Testing of printing inks
