SiRON K041-7~K041-10 Series M8 Inductive Proximity Switch

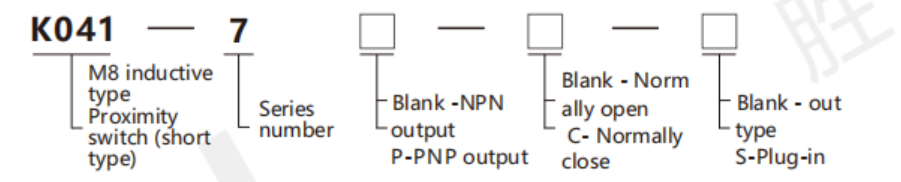

About selection

Selection example: K041-7 means K041 series, 7 serial number, NPN output, normally open, outlet type;

                                     K041-7-S means K041 series, 7 serial number, NPN output, normally open, plug-in type.

Specifications

Name		M8 inductiveproximity switch (short type)
Model	NPN N.O	K041-7	K041-7-S	K041-8	K041-8-S	K041-9	K041-9-S	K041-10	K041-10-S
	NPN N.C	K041-7C	K041-7C-S	K041-8C	K041-8C-S	K041-9C	K041-9C-S	K041-10C	K041-10C-S
	PNP N.O	K041-7P	K041-7P-S	K041-8P	K041-8P-S	K041-9P	K041-9P-S	K041-10P	K041-10P-S
	PNP N.C	K041-7P-C	K041-7P-C-S	K041-8P-C	K041-8P-C-S	K041-9P-C	K041-9P-C-S	K041-10P-C	K041-10P-C-S
Wiring Form		Outlet type	Plug-in type	Outlet type	Plug-in type	Outlet type	Plug-in type	Outlet type	Plug-in type

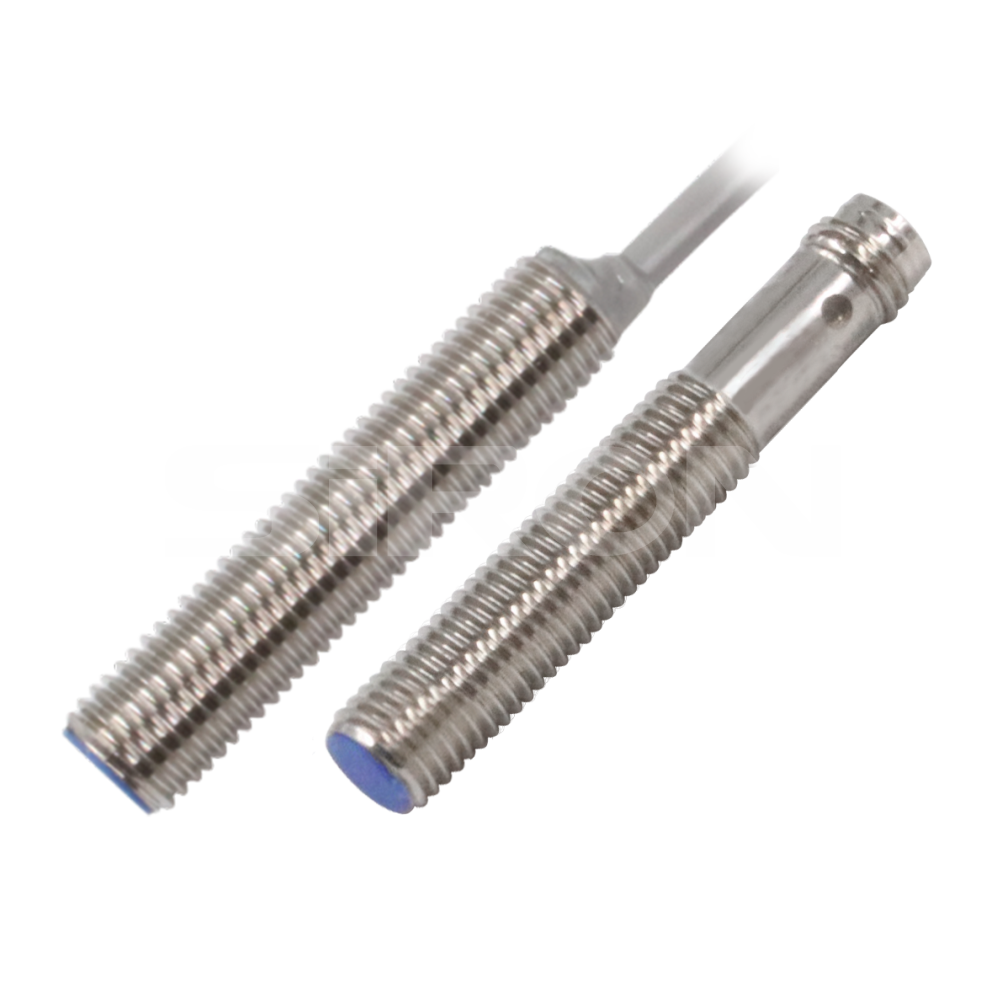

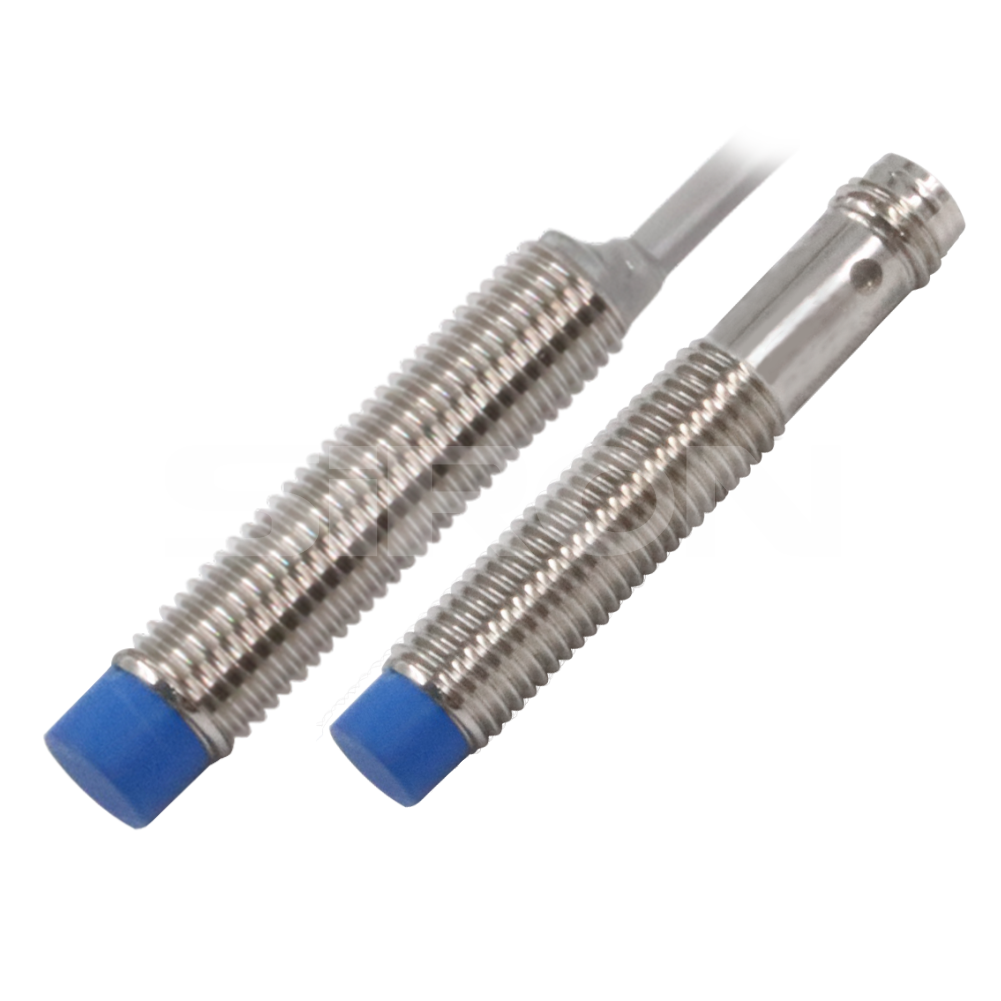

Appearance
Detection distance		2mm		3mm		4mm		6mm
Installation		Flush installation		Quasi-flush installation		Non-flush installation
Thread		M8×1mm
Operating Voltage		10～30VDC
On-off level		2000Hz		1000Hz		1000Hz		500Hz
Pressure drop		≤2.0V
Load current		100mA
No-load current		≤10mA(24V)
Hysteresis		<15%(Sr)
Repeatability		<1.0%(Sr)
Ambient temperature		-25~70℃
Enclosure rating		IP67
Material		Sensing surface:POM;Housing:Stainless steel
Cable		Outlet type:PVC cable;3×0.18mm2;Plug-in type:M8 connector
Cable length		2M

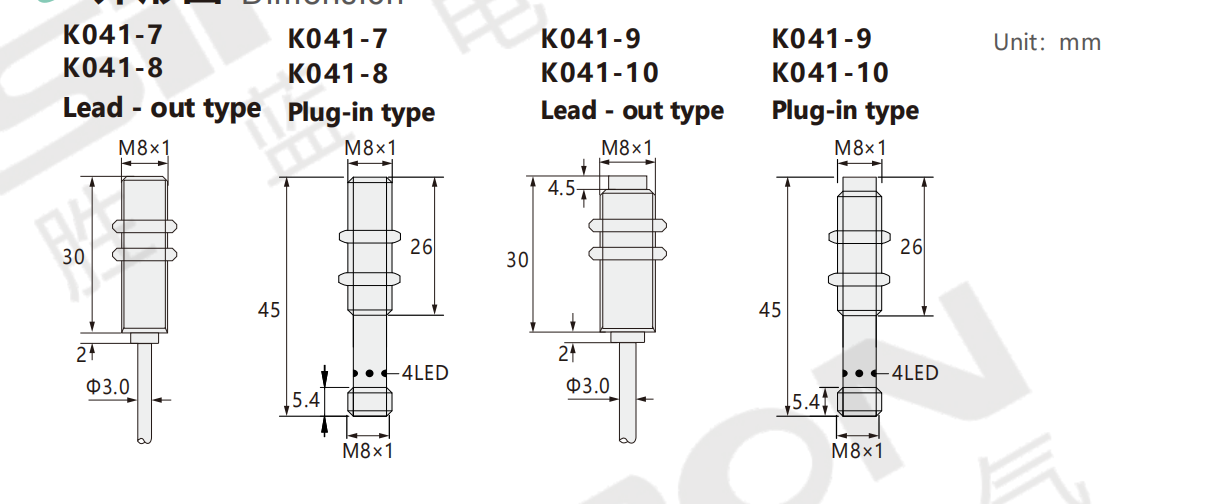

Dimension

Wiring diagram
