D123 Series
SiRON
9405410000
ABOUT SELECTION
|
| ||

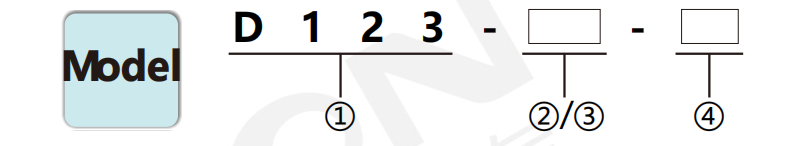

| Type analysis | ||
| ① | Smart indicator light | D123 |
| ② | Light source color | 3:Red yellow green (RYG) |
| ③ | Color selection | R:red Y:yellow G:green |
| ④ | Signal polarity | Blank: NPN P:PNP |
Specifications
| The material | Lamp shade opal PC+lamp shell aluminum alloy | Service life | 50000h | |
| Nominal voltage | 12~30 V DC | Environment temperature | -25~55℃ | |
| Current | Red light 0.035A, yellow light 0.058A, green light 0.023A | Signal polarity | NPNcommonpositive /PNPcommonnegative | |
| Working status | Always on | Standard wiring length | Standard 1500mm | |
| Colo number | Three-colour | Luminescent lamp source color | ![]()
Red Yellow Green | |
| Protection grade | III | |||
| Bean Angle | 360° | - | - | |
