SiRON D100 Series LED Indicator Light Highlight Light Beads

Name: SiRON D100 Series LED Indicator Light Highlight Light Beads
Brand: SiRON
Rating: 5.0 (25 reviews)

Features:

*360°no angle irradiation, improved long distance visibility.

*Bright color recognition effect. Can meetvarious needs.

*Cylindrical shape Contains, long-life LED light.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

ABOUT SELECTION

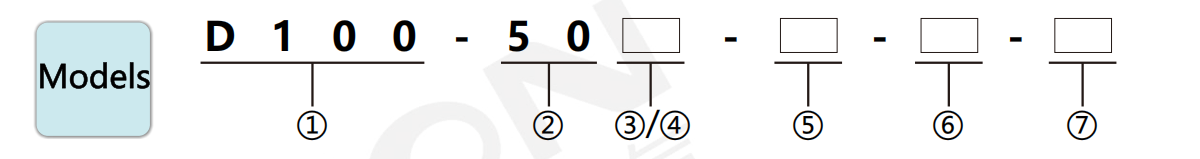

Type analysis
①	Indicator light series	D100
②	Diameter	50:φ50 60:φ60
③	Light source color	3:Red yellow green(RYG) 7:Red yellow green blue cyan purple white
④	Color selection	R:Red Y:yellow G:green B:blue Q:blue P:purple W:white
⑤	Working status	Blank:Always on B:Always on with buzzer
⑥	Signal polarity	Blank:NPN P:PNP
⑦	Connection method	Blank:Direct output M12:output M12 connector

Specifications

Model	D100-503	D100-603	D100-507	D100-607
Appearance
Luminescent lamp source color	Red Yellow Green		Red Yellow Green Blue Cyan Purple White

Color number	Three-colour		Seven colours
The material	Lamp shade opal PC+lamp shell ABS
Nominal voltage	24VDC
Current	Red light 0.02A,yellow light 0.03A,green light 0.01A, blue light 0.01A,green light 0.02A,purple light 0.03A,white light 0.05A
Working status	Always on/Always on with buzzer
Protection grade	IP20
Bean Angle	360°
Service life	50000h
Environment temperature	-25～55℃
Signal polarity	NPN common positive electrode /PNP common negative electrode
Standard wiring length	Standard 1500mm
