SiRON D101 Series LED Indicator Light Highlight Light Beads

Name: SiRON D101 Series LED Indicator Light Highlight Light Beads
Brand: SiRON
Rating: 5.0 (31 reviews)

Features:

*360°no angle irradiation, improved long distance visibility.

*Bright color recognition effect. Can meetvarious needs.

*Cylindrical shape Contains, long-life LED light.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

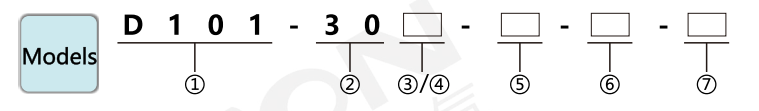

ABOUT SELECTION


Type analysis
①	Indicator light series	D101
②	Diameter	30:φ30 50:φ50
③	Light source color	3:Red yellow green(RYG) 7:Red yellow green blue cyan purple white
④	Color selection	R:Red Y:yellow G:green B:blue C:Cyan P:purple W:white
⑤	Working status	Blank:Always on B:Always on with buzzer
⑥	Signal polarity	Blank:NPN P:PNP
⑦	Connection method	Blank:Direct output M12:output M12 connector

Specifications

Model	D101-303	D101-503	D101-307	D10-507
Appearance
Luminescent lamp source color	Red Yellow Green		Red Yellow Green Blue Cyan Purple White

Color number	Three-colour		Seven colours
The material	Lamp shade opal PC+ lamp shell aluminum alloy
Nominal voltage	24V DC
Current	Red light 0.02A,yellow light 0.03A,green light 0.01A, blue light 0.01A,green light 0.02A,purple light 0.03A,white light 0.05A
Working status	Always on/Always on with buzzer
Protection grade	IP69K/IP54(buzzer)
Bean Angle	360°
Service life	50000h
Environment temperature	-25～55℃
Signal polarity	NPN common positive /PNP common negative
Standard wiring length	Standard 1500mm
