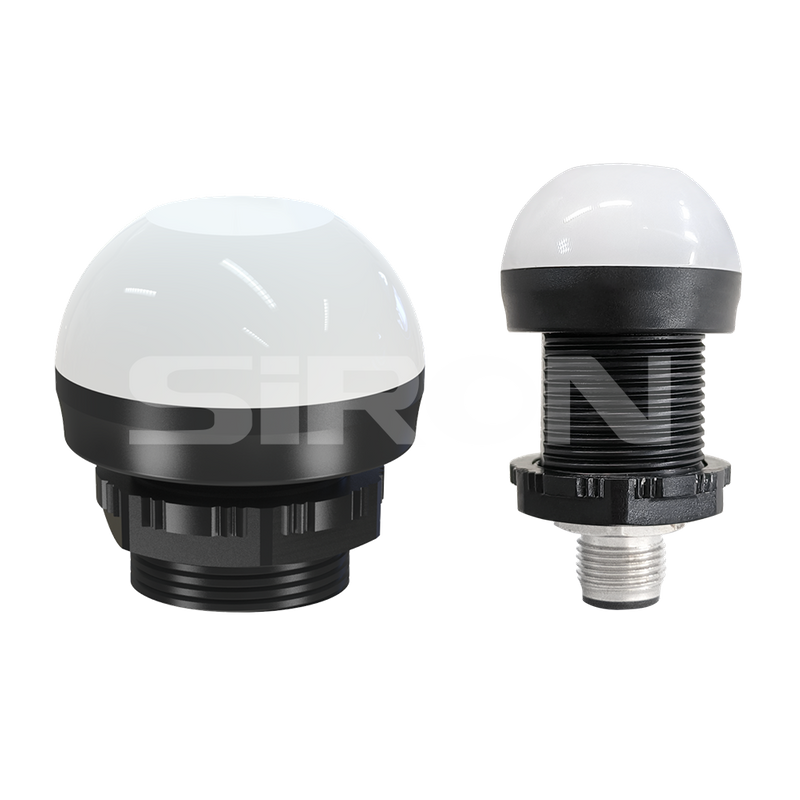

D103 Series
SiRON
9405410000
ABOUT SELECTION
|
| ||
| Type analysis | ||
| ① | Indicator light series | D103 |
| ② | Diameter | 50: Φ50 |
| ③ | Light source color | 1:Single color 3:three colors 5:five colors 7:seven colors |
| ④ | Color selection |
R:Red Y:yellow G:green B:blue W:white C:Cyan P:purple |
| ⑤ | Working status | Blank:Always on B:Always on with buzzer |
| ⑥ | Signal polarity | Blank:NPN P:PNP |
| ⑦ | Connection method | Blank: Direct outgoing M12: outgoing M12 connector |
Specifications
| Model | D103-30 | D103-50 | |||
| Appearance |  | | |||
| The material | Lamp shade opal PC+ lamp shell plastic | ||||
| Nominal voltage | 24V DC | ||||
| Current | Red light 0.02A, yellow light 0.02A, green light 0.01A | ||||
| Working status | Always on/Always on with buzzer | ||||
| Number of lamp source colors | One color/three colors/five colors/seven colors | ||||
| Protection grade | IP69K/IP54(Buzzer) | ||||
| Bean Angle | 360° | ||||
| Service life | 50000h | ||||
| Environment temperature | -25~55℃ | ||||
| Signal polarity | NPN common positive electrode /PNP common negative electrode | ||||
| Standard wiring length | Standard 1500mm | ||||
| Luminescent lamp source color |
Red Yellow Green Blue White Cyan Purple | ||||
