SiRON D043 Series LED Signal Lamp

ABOUT SELECTION

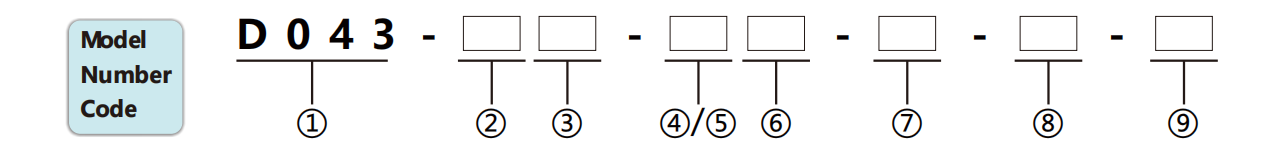

Type analysis
①	LED signal lamp series	D043

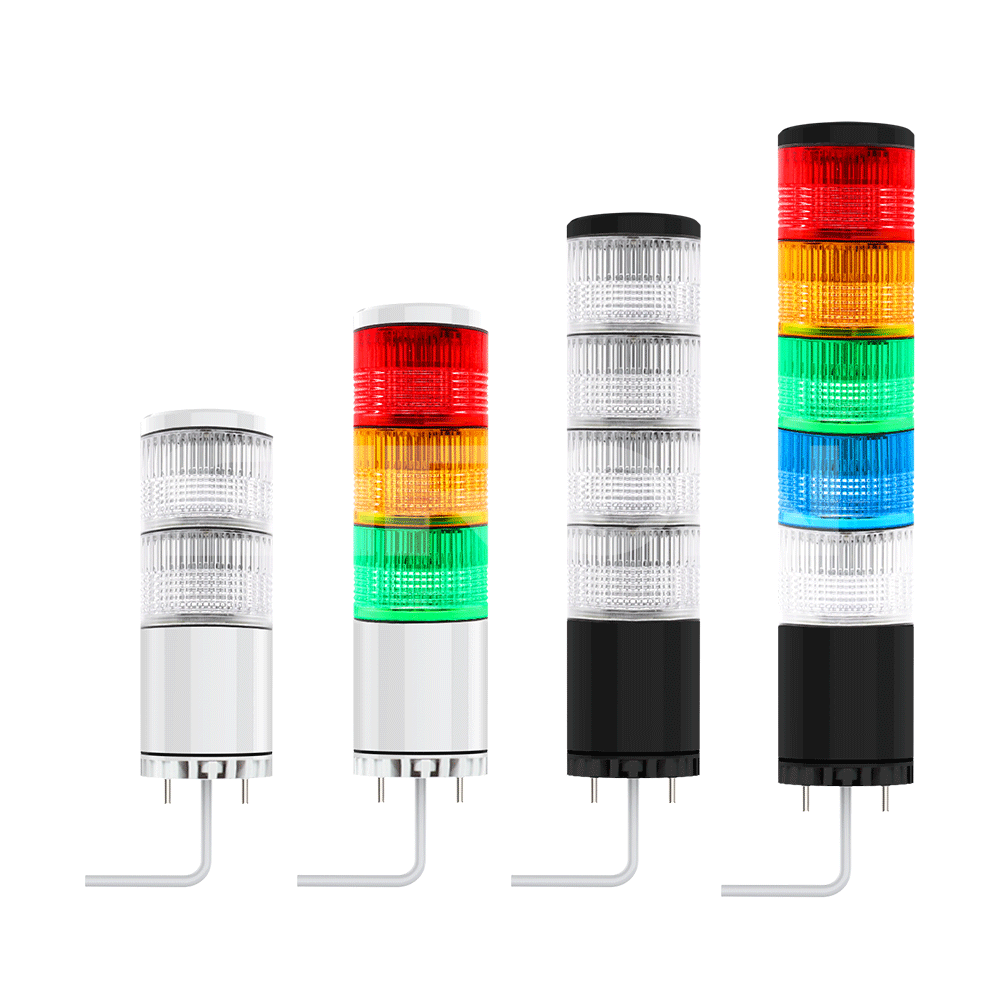

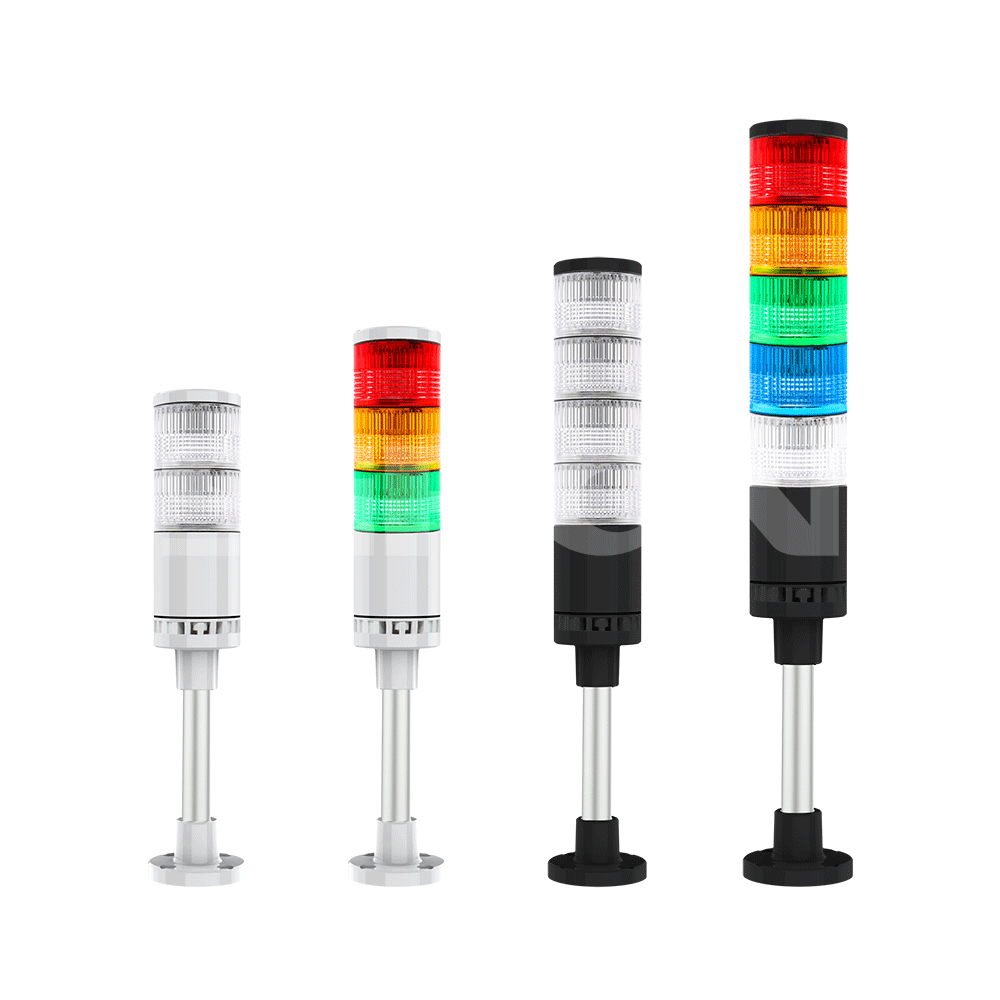

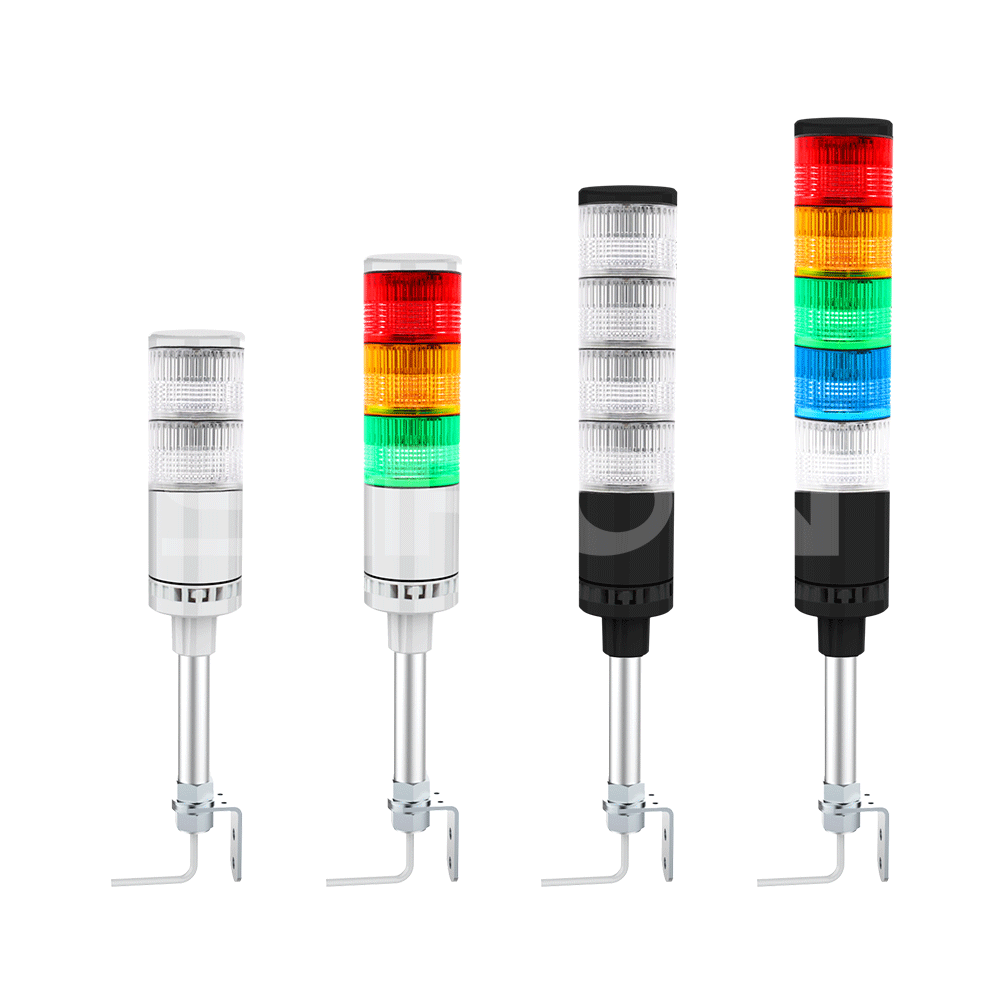

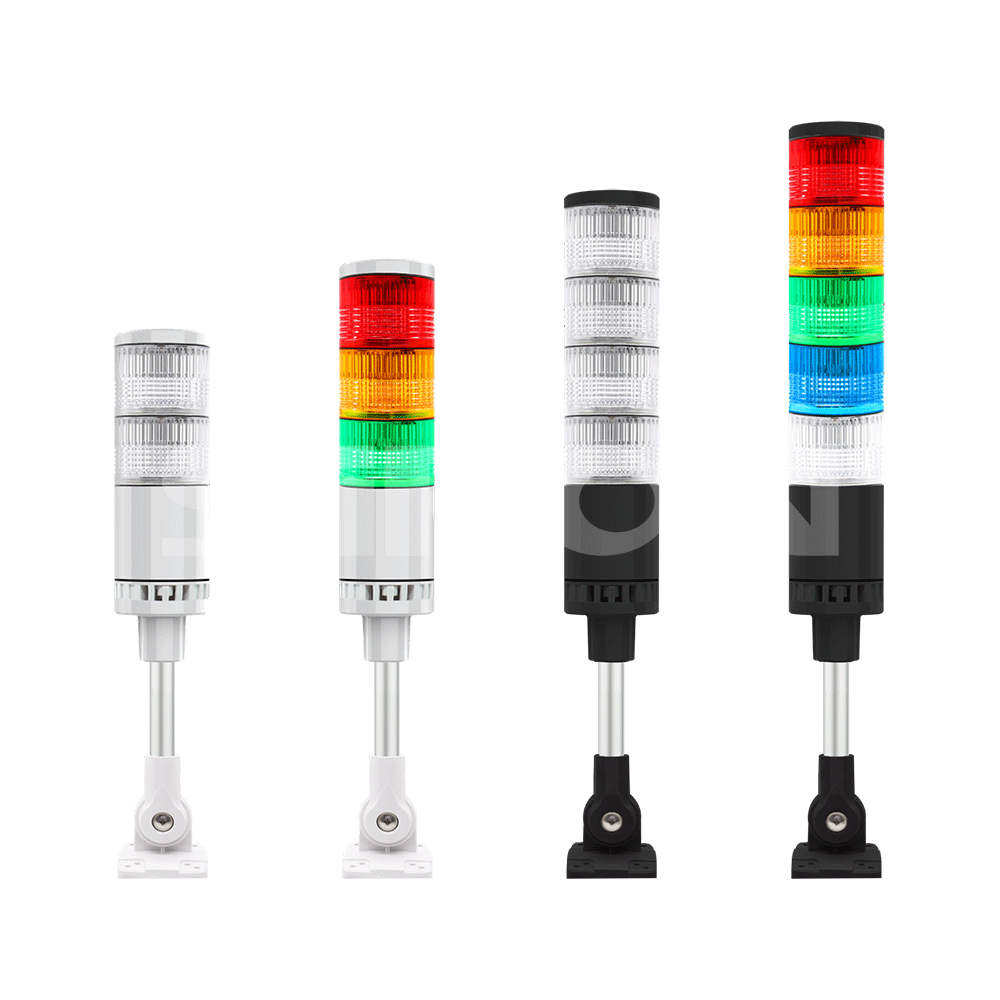

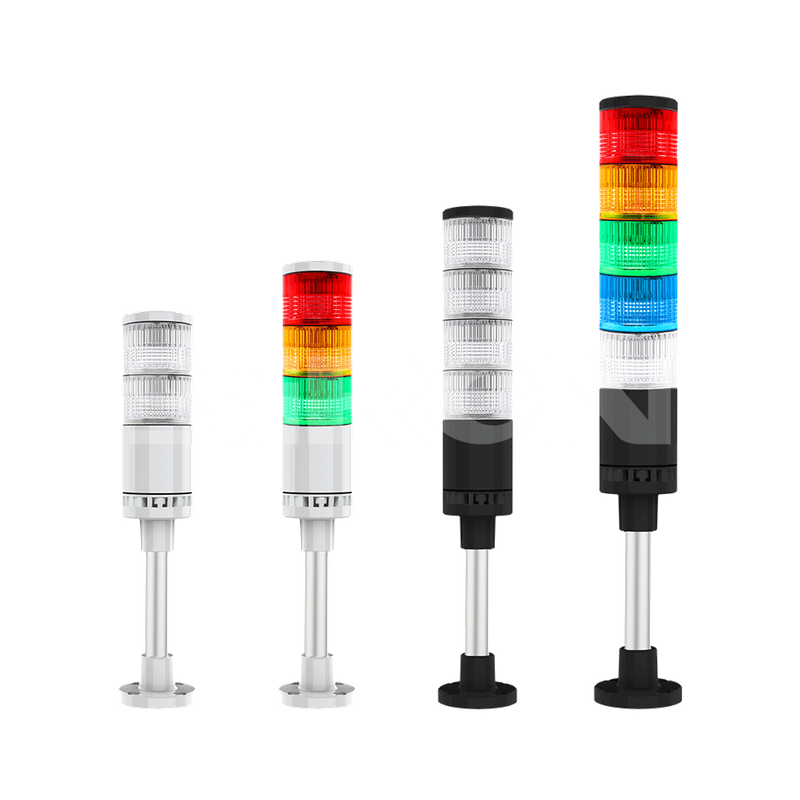

②	Installation mode	1. Direct install                     2.Upright type  3.L-shaped bracket              4. Bent type
③	Rodlength   (Install directly without selecting this option)	Blank：150mm
④	Number of color layers (multicolor)	1: One layer (RYG)                     2: Twolayers (RG) 3:  Threelayers (RYG)                 4:Four layers (RYGB) 5:Five Layers (RYGBW)
⑤	Number of color layers (monochrome)	R: Red                 Y: Yellow              G: Green  B: Blue               W: White
⑥	Shade color	Blank：standard type          C：translucency type
⑦	Working condition	Blank：Always on B：Always on with buzzer (continuous tone) Q：Always on + flashing with buzzer(intermittent tone)
⑧	Body color	Blank：White                H：Black
⑨	Rated voltage	Blank：24VAC/DC                       12：12VAC/DC 110：110VAC                                220：220VAC

Note: 1. Installation method: Direct installation method with nooption for pole length;

            2. Working status:The option"Always on  + flashing light with buzzer (intermittent tone)"                                                             means that customers can choose the wiring according to their needs to achieve either

                 "Always on with buzzer" or "flashing light with buzzer".

Specifications

Model number	D043-1	D043-2	D043-3	D043-4
Appearance
Rated voltage	24VAC/DC;12VAC/DC;110V AC;220V AC
Working condition	60~≥85db/1m(Manually adjustable)
Material	lamp shade PC +lamp housing ABS
Number of color layers	1~5 floor
Working temperature	-15℃~+40℃(No icing)
Storage temperature	-20℃~+70℃(No icing)
Working humidity	40~85%RH(No frosting)
Anti-vibration	10~55Hz,amplitude 0.75mm
Installation method	Direct install,Upright type,L-shaped bracket,Bent type
Protection grade	IP65
Signal polarity	NPN/PNP general
Standard wiring length	1500mm
Luminescent lamp  source color	Red    Yellow     Green  Blue      White

PRODUCT DETAILS

OUTLINE

Wiring diagram
