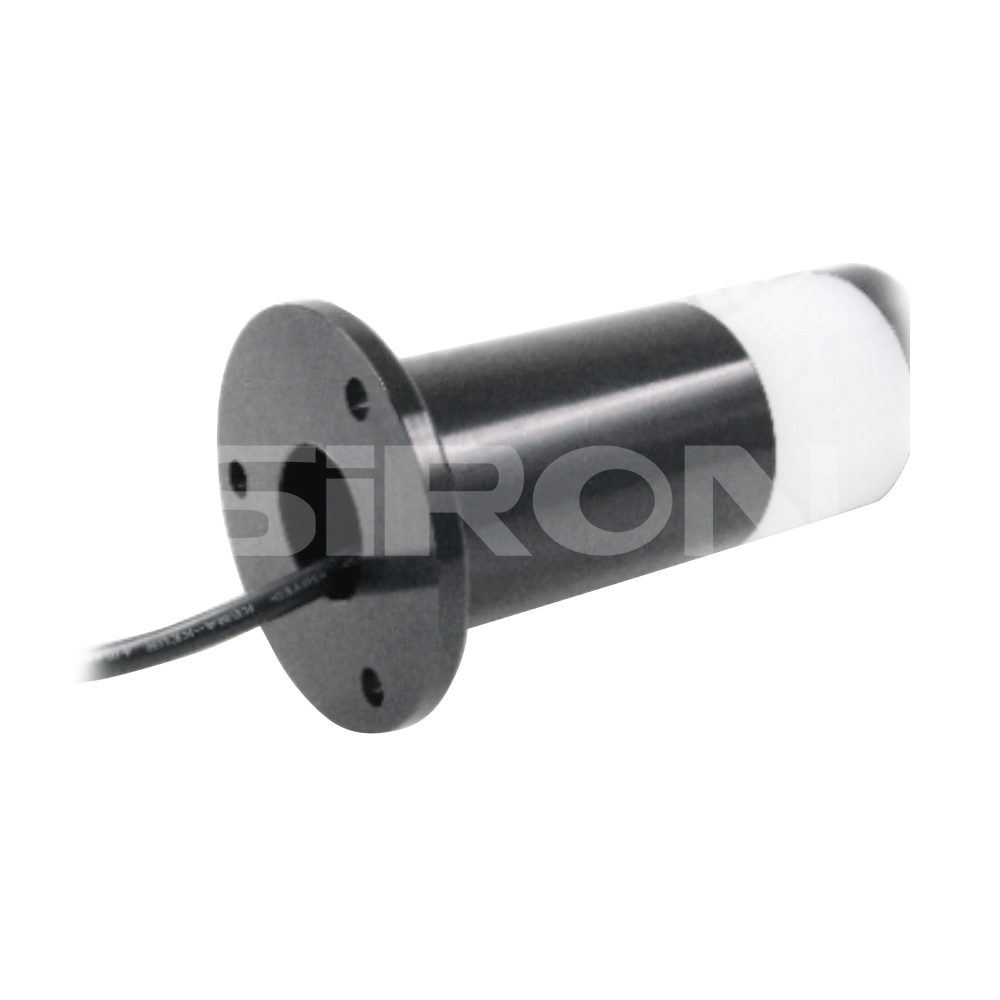

SiRON D037 Series LED Signal Lamp Buzzer Warning

Name: SiRON D037 Series LED Signal Lamp Buzzer Warning
Brand: SiRON
Rating: 5.0 (62 reviews)

Features:

*High brightness LED light source. Improved visibility over long distances.

*Vivid color recognition effect. Can meet a variety of needs.

*Heat and shock resistance. Fashionable appearance.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

ABOUT SELECTION

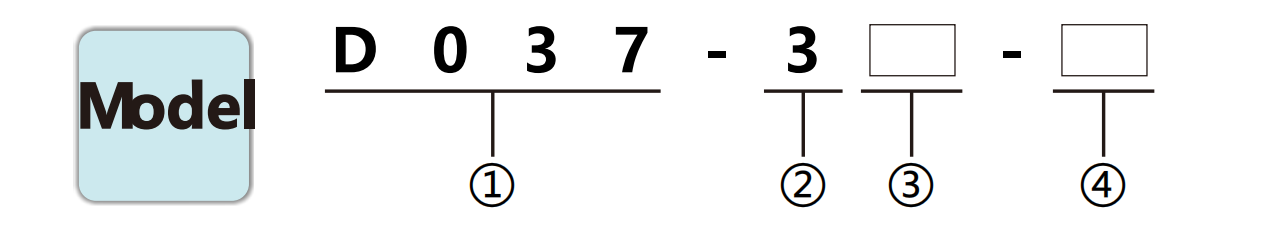

Type analysis
①	LED signal lamp series	D037
②	Number of color layers	3：red yellow green (RYG） 4: red yellow green blue (RYGB) 5：Red yellow green blue white (RYGBW）
③	Working status	Blank:Always on B:Always on withbuzzer S:Flashing Q: Flashing withbuzzer
④	Signal polarity	Blank：NPN P：PNP

Note: Only PNP isselected when the D037 series operates in shiny and shiny with buzzer.

Specifications

Model number	D037-3	D037-4	D037-5
Appearance
Luminescent lamp source color	Red Yellow Green	Red Yellow Green Blue	Red Yellow Green Blue White
Layer number of color	Three layers and three colors	Four layers and four colors	Five layers and five colors
The material	Lamp shade opal PC+lamp shell aluminum alloy
Rated voltage	24V DC
Rated current	Red light 0.052A,yellow light 0.048A,green light 0.020A,blue light 0.02A,white light 0.02A
Installation method	Up-right
Working status	Always on/Always on with buzzer/Flashing/Flashing with buzzer
Protection grade	IP20
Bean Angle	360°
Service life	50000h
Environment temperature	-25~55℃
Signal polarity	NPN common positive electrode /PNP common negative electrode
Standard wiring length	Standard1500mm
