D031-B Series
SiRON
9405410000
ABOUT SELECTION
|
| ||

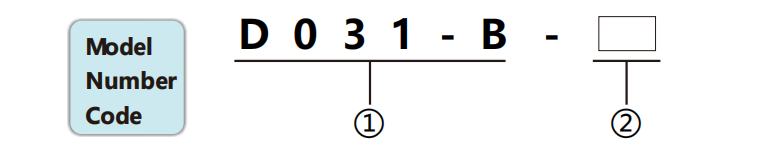

| Type analysis | ||
| ① | LED signal lamp series | D031-B |
| ② | Working status | Constant On with Buzzer |
Specifications

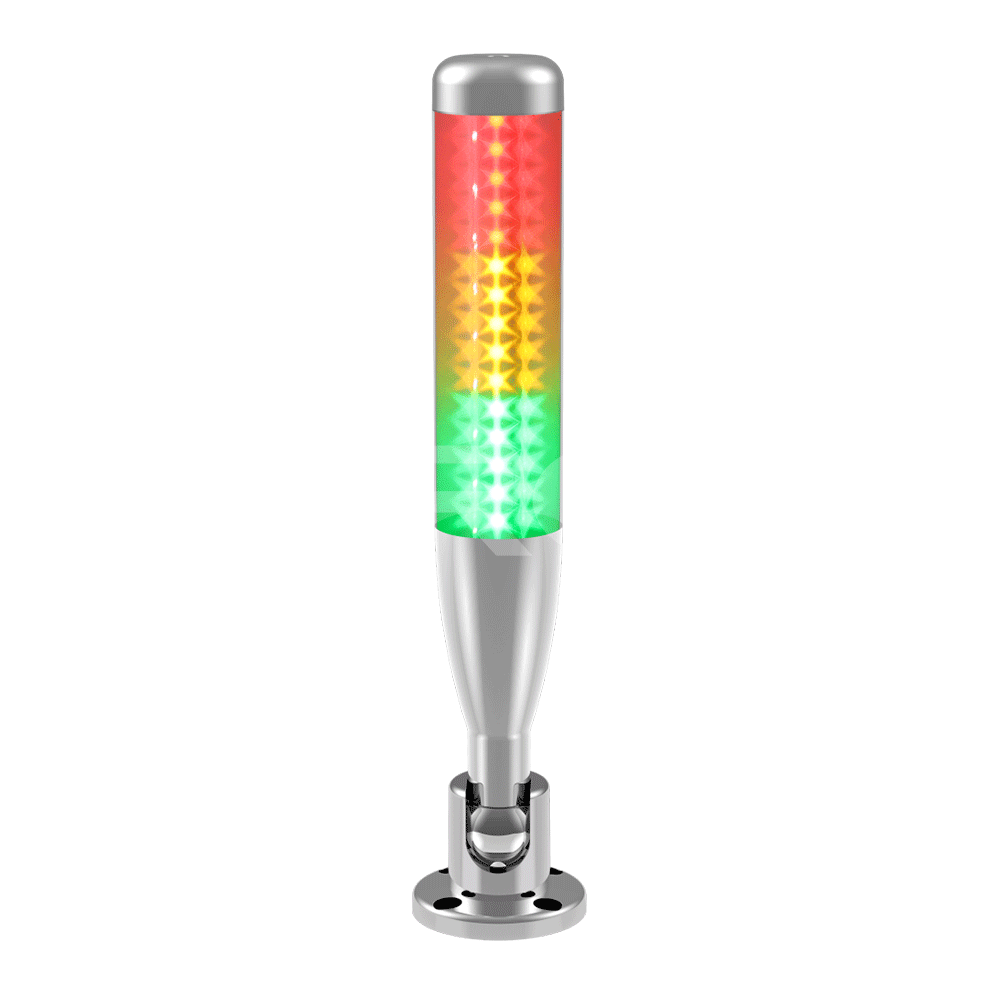

Model number | D031-B-B |
Appearance | ![]() |
Input voltage | DC 24V |
Working current | 50mA |
The material | ABS+PC |
Luminous angle | 360° |
Sound intensity | >85dB |
Color layer | Three layers, three colors |
Working condition | Constant On with Buzzer |
Connection mode | NPN / PNP universal |
Falding Angle | 90° |
nstallation mode | Four-hole base fixed with screws |
Surface temperature | <60℃ |
Standard wiring length | 500mm |
Luminescent lamp source color | ![]() Red Yellow Green |
