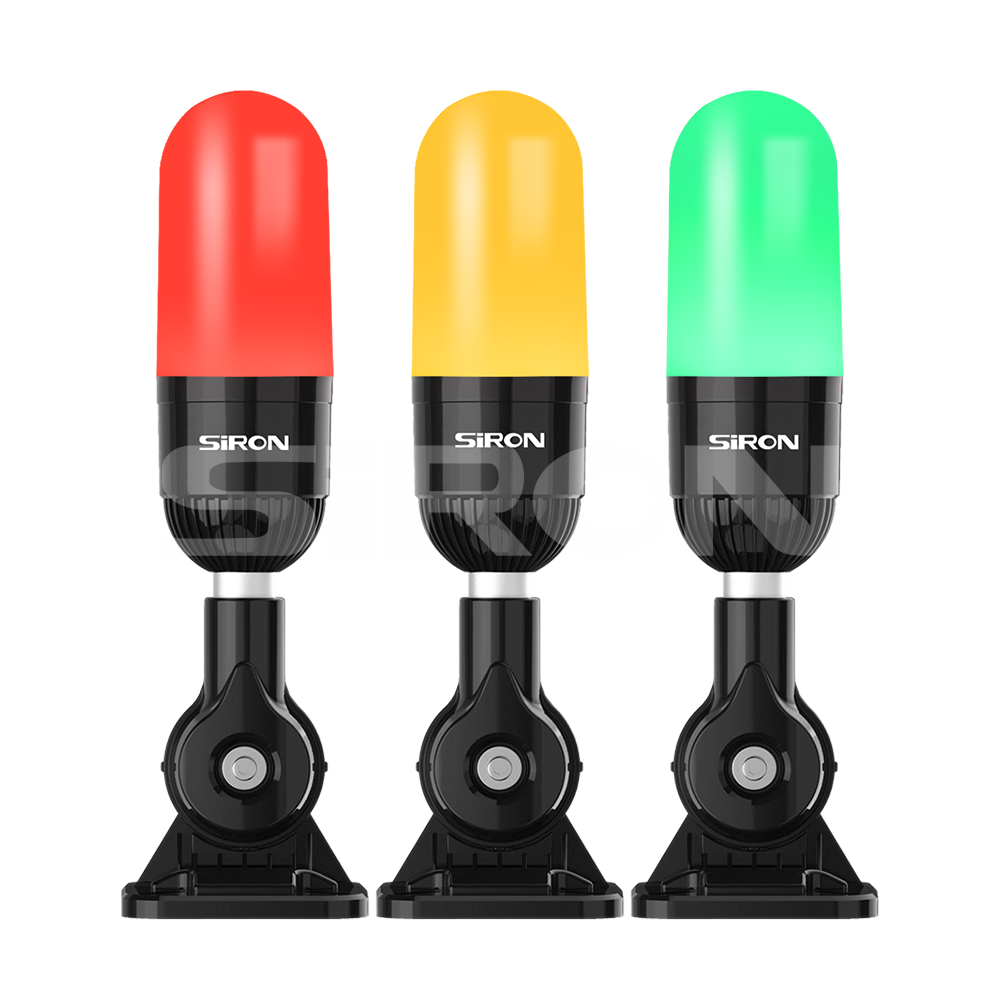

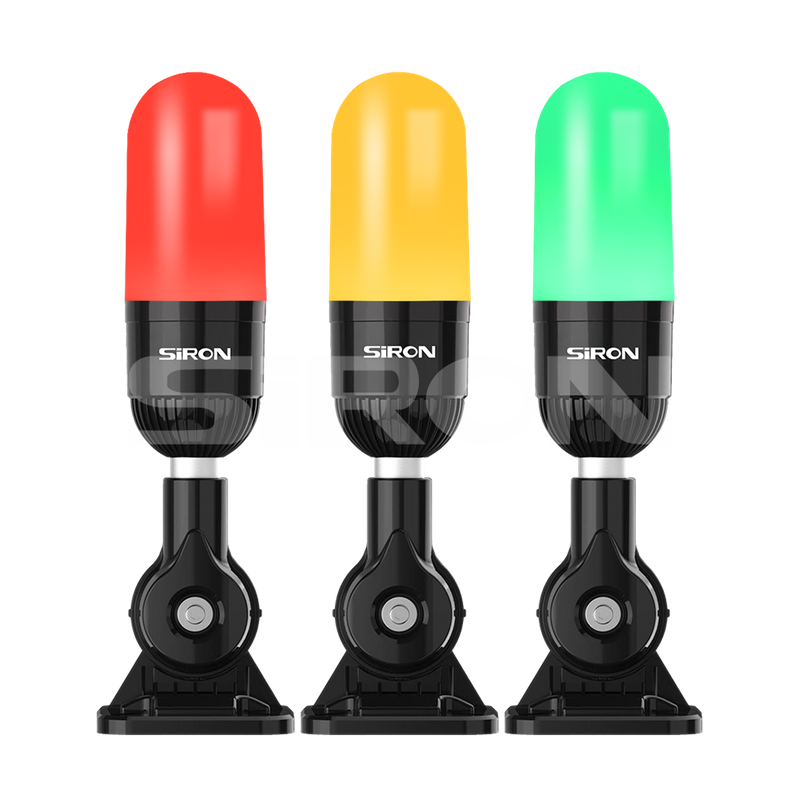

SiRON D020-2 Series LED Signal Lamp Highlight Light Beads

Name: SiRON D020-2 Series LED Signal Lamp Highlight Light Beads
Brand: SiRON
Rating: 5.0 (12 reviews)

Features:

*Exquisite and beautiful structure, unique and innovative appearance. Fully functional and cost-effective.

*High light LED patch. High brightness, large Angle, low thermal resistance.

*The overall structure design has good heat dissipation. The high quality drive plate guarantees the overall life of the lamp.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

ABOUT SELECTION

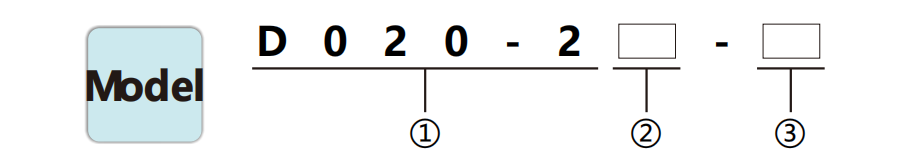

Type analysis
①	LED signal lamp series	D020-2
②	Working condition	B：Always on with buzzer Q：Flashing with buzzer
③	Case color	Blank: White H: Black

Specifications

Model number	D020-2B	D020-2B-H
Appearance
Input voltage/lnput current	Input voltage:DC 24V Input current:monochrome 50mA Buzzer 15mA
The material	PC lamp shade +ABS lamp shell
Power	1.2W～2W
Lhigt source/Luminous angle	Light source:Patch 2835 LED luminous Angle:360°
Sound intensity/Class of protection	Sound intensity:>90dB Protection level:IP54
Color layer	Single layer tricolor
Working condition	Always on with buzzer/ Flashing with buzzer
Installation mode/Number of flashes	Installation mode:Bent 180° Number of flashes:60-70/min
Service life/Standard wiring length	Working life:70000h Distribution length:500mm
Connection mode	NPN/PNP common
Ambient temperature/storage temperature	-20~45℃/-40~70℃
Ambient humidity/Storage humidity	10~90%
Luminescent lamp source color	Red Yellow Green
