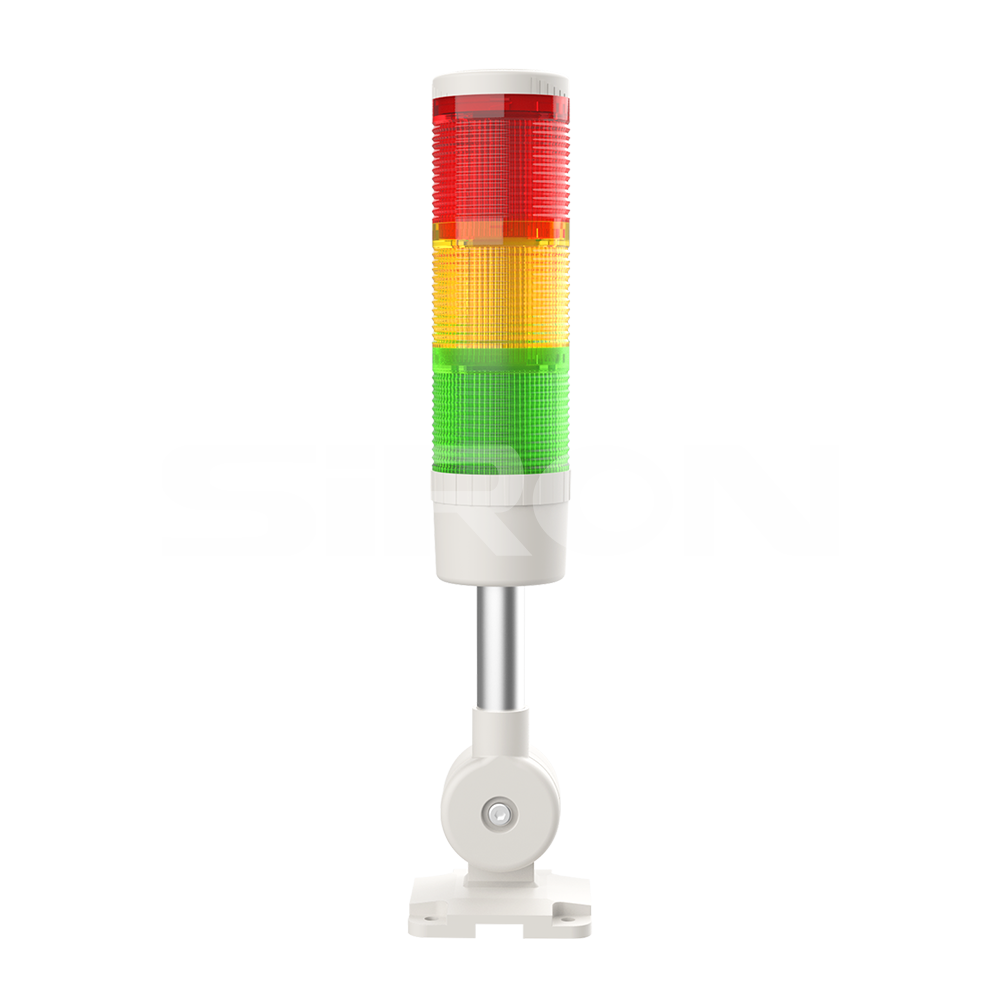

D017 Series
SiRON
9405410000
ABOUT SELECTION
|
| ||

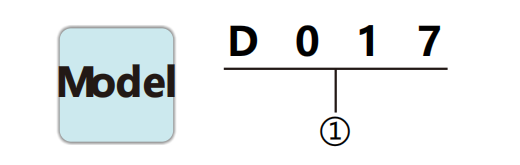

| Model analysis | ||
| ① | LED signal lamp series | D017 |
Specifications
| Voltage | 24V DC | Soundintensity | 85dB |
| Installation mode | Bend | Service life | 50000h |
| Working condition | Always on with buzzer | Ambient temperature | -25~55℃ |
| Chromaticnumber | Three-colour | Signal polarity | NPN/PNP General |
| Material | Lamp shade PC+lamp case ABS | Standard wiring length | Standard 1500mm |
| Class of protection | IP20 | Luminescent lamp source color |
Red Yellow |
