SiRON D016 Series LED Signal Lamp Highlight Light Beads

Name: SiRON D016 Series LED Signal Lamp Highlight Light Beads
Brand: SiRON
Rating: 5.0 (62 reviews)

Features:

*High brightness LED. light source improved, visibility over long distance.

*Built-in noiseless, high-decibel buzzer, obvious warning effect.

*Collapsible lamp body design, convenient installation, convenient, transportation of equipment.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

ABOUT SELECTION

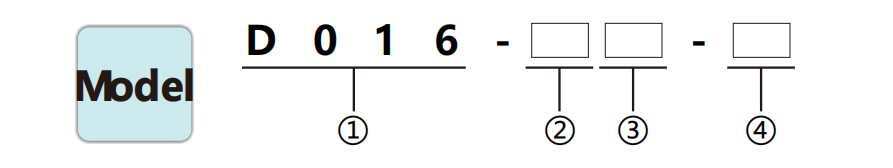

Model analysis
①	LED signal light series	D016
②	Number of color layers	3: Red Yellow Green (RYG) 4: Red Yellow Green Blue (RYGB)
③	Working status	Blank: Always on B: Always on with buzzer S: Flashing Q: Flashing with buzzer B：Black W: Gray white
④	Signal polarity	Blank：NPN P：PNP

Note: 1. Select PNP only when the working state is shiny or shiny with buzzer.

2. In the working state of D016-4, shiny and shiny tape buzzer are not optional.

3. Standard wiring length 1500mm, if you need to customize the size, please contact our sales.

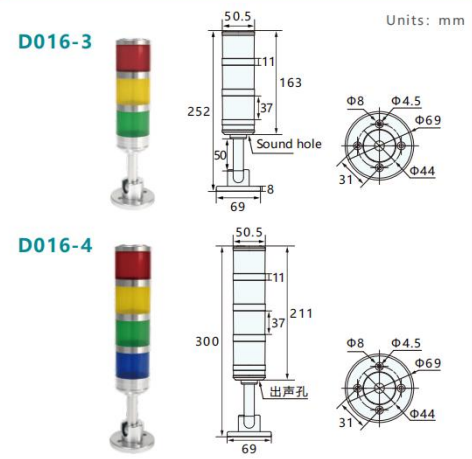

Specifications

Model	D016-3	D016-4
Appearance
Input voltage/Rated current	Voltage:24V DC Current:Red light 0.05A, yellow light 0.06A, green light 0.02A, blue light 0.02A
Material/installation mode	Material:Lamp shade PC+lamp shell ABS Installation method:bent
Class of protection/Beam Angle	IP20/360°
Service life/Ambient temperature	50000h/-25~55℃

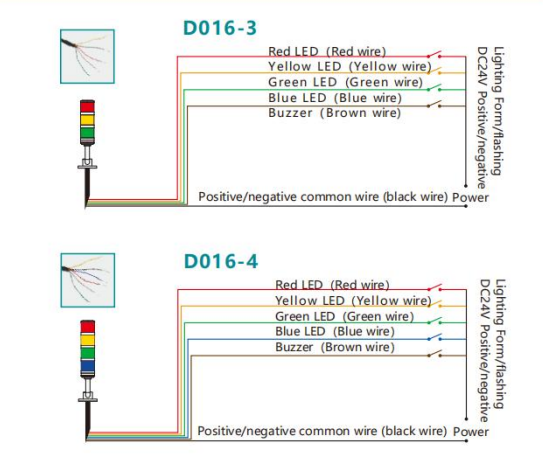

Signal polarity/Standard wiring length	Signal polarity:NPN common positive /PNP common negative Standard wiring length:1500mm standard
Working condition	Always on/Always on with buzzer/flashing/flashing with buzzer	Always on/Always on with buzzer
Chromatic number	Three-colour	Four-colour
Luminescent lamp source color	Red Yellow Green	Red Yellow Green Blue
