SiRON D009-1B Series Machine Tool Signal Light Highlight Light Beads

Name: SiRON D009-1B Series Machine Tool Signal Light Highlight Light Beads
Brand: SiRON
Rating: 5.0 (85 reviews)

Features:

*High transparent crystal scrub process

*High-end atmosphere delicate and beautiful, obvious light transmission

*Customizable LOGO
*Highlight brand strength

*Foldable base multi-hole mounting
*Save installation space and facilitate transportation

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

ABOUT SELECTION

Type analysis
①	Machine tool special signal lamp series	D009-1B

Specifications

Model number	D009-1B
Appearance
nput voltage	DC 24V
Working current	50mA
The material	ABS+PC+aluminium alloy
Luminous angle	360°
Sound intensity	>85dB
Color layer	Single-layer three-color
Working condition	The constant light is accompanied by a buzzer

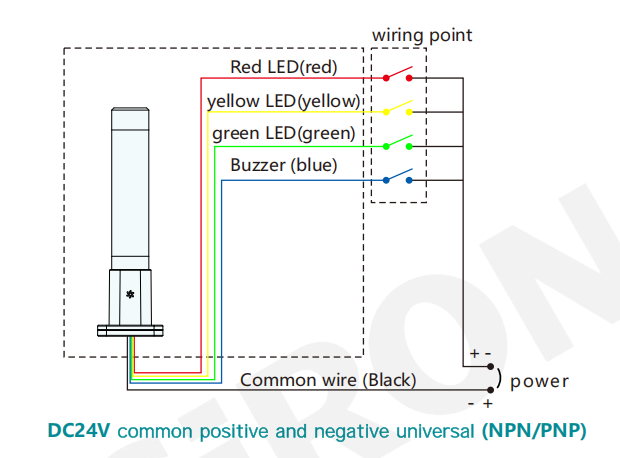

Connection mode	NPN/PNP

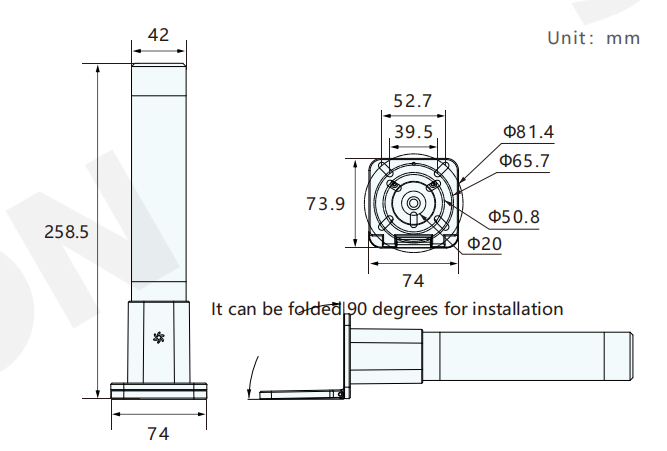

FoldingAngle	90°
Installation mode	The four-hole base is fixed with screws
Surface temperature	<60℃
Standard wiring length	500mm
Luminescent lamp source color
