In industrial automation, relays play a pivotal role in controlling electrical circuits efficiently. When integrated into a Programmable Logic Controller (PLC) system, relays provide a critical interface between the controller and the devices it governs. They act as intermediaries, translating the PLC’s low-voltage digital signals into higher power outputs capable of driving motors, solenoids, and other machinery. Understanding the function, types, and advantages of a relay in a PLC is essential for engineers, technicians, and automation professionals seeking to design reliable and safe control systems.

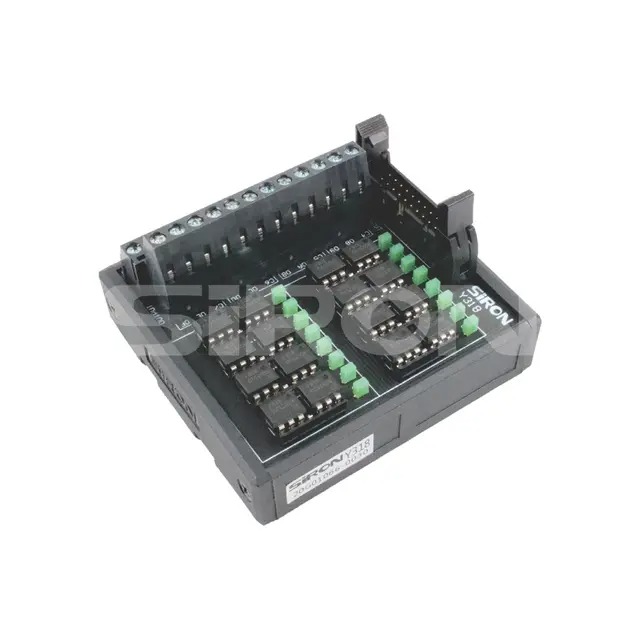

A relay in a PLC, often referred to as a relay PLC output, serves as an electromechanical switch that controls electrical devices based on the PLC’s programmed logic. Unlike solid-state devices, traditional relays use a coil to generate a magnetic field that mechanically opens or closes contacts. This action allows the relay to manage circuits with voltages and currents beyond the PLC's direct capacity.
Relays in PLCs serve multiple purposes:
Signal Amplification: They amplify the low-power output from the PLC to operate high-power devices.
Isolation: They isolate sensitive PLC components from high-voltage or high-current circuits.
Logic Implementation: By integrating multiple relays, complex control sequences can be executed without additional PLC programming.
| Feature | Description | Benefit |
|---|---|---|
| Electromechanical Switching | Uses a coil and contacts to switch circuits | Handles higher power than PLC outputs directly |
| Isolation | Separates PLC circuits from field devices | Protects PLC hardware from damage |
| Signal Amplification | Converts low-voltage control to high-power output | Enables control of motors and actuators |
PLC systems employ a variety of relay types depending on the application:
Electromechanical Relays (EMR)
These relays use physical contacts that move in response to an electromagnetic coil. They are highly reliable for applications where switching large currents is necessary.
Solid-State Relays (SSR)
SSRs use semiconductor components to switch electrical loads without moving parts. They offer faster switching, longer life, and reduced maintenance.
Time-Delay Relays
These relays incorporate a built-in timer, allowing the PLC to trigger events after a specified delay.
| Relay Type | Switching Mechanism | Advantages | Typical Applications |
|---|---|---|---|
| EMR | Electromagnetic coil | High current handling, low cost | Motors, solenoids, heaters |
| SSR | Semiconductor switching | Fast operation, no mechanical wear | High-speed control, repetitive cycles |
| Time-Delay | Electromechanical or SSR with timer | Delayed actions, sequential control | Conveyor systems, batching processes |
A relay PLC output is usually connected to the PLC through output terminals. When the PLC executes its program, it sends a control signal to the relay’s coil. The relay then either closes or opens its contacts, controlling the connected load.
Key integration points include:
Voltage Compatibility: The relay coil must match the PLC output voltage.
Load Rating: The relay contacts should handle the current and voltage of the connected devices.
Response Time: SSRs provide rapid switching suitable for high-frequency applications, while EMRs may suffice for slower operations.
Diagrammatically, the process can be summarized as:
PLC Output Signal → Relay Coil → Contact Closure → Device Activation
This simple yet powerful interaction is fundamental in industrial automation for reliable control over various machinery.
Relays enhance PLC functionality in several ways:
Electrical Isolation: Relays physically separate the PLC’s low-voltage logic from high-voltage devices, protecting sensitive components.
Load Flexibility: They enable PLCs to control devices of higher current or voltage than the PLC can directly manage.
Cost-Effective Expansion: Adding relays to a PLC system is often cheaper than upgrading to higher-rated PLC outputs.
Fail-Safe Operation: Many electromechanical relays are inherently fail-safe, ensuring devices default to safe states during power loss.
| Advantage | Impact on PLC Systems |
|---|---|
| Electrical Isolation | Protects PLC circuits and reduces risk of damage |
| Load Flexibility | Allows control of a wide range of industrial devices |
| Cost Efficiency | Expands capabilities without replacing PLC hardware |
| Fail-Safe | Enhances system reliability and safety |
PLC outputs are generally categorized into relay outputs, transistor outputs, and triac outputs. Understanding the distinctions helps in selecting the right output type:
Relay Outputs: Can switch AC or DC loads, capable of handling high currents, but slower switching speed.
Transistor Outputs: Best for low-current DC applications with high-speed switching.
Triac Outputs: Suitable for AC loads, particularly in phase-control applications.
| Output Type | Suitable Load | Switching Speed | Longevity |
|---|---|---|---|
| Relay | AC/DC high current | Moderate | High (mechanical wear over time) |
| Transistor | DC low current | Fast | Very high |
| Triac | AC loads | Moderate | High |
By analyzing load requirements, switching speed, and lifecycle expectations, engineers can optimize relay selection for PLC applications.
Relays in PLC systems are widely used across industries:
Motor Control: Starting, stopping, and reversing motors in conveyor systems and pumps.
Lighting and Heating Control: Managing industrial lighting and heating elements with on/off control.
Safety Interlocks: Ensuring machines operate only when safety conditions are met.
Sequential Operations: Using time-delay relays to coordinate multi-step processes such as batching or packaging.
These applications highlight the versatility of relays in bridging the gap between PLC logic and real-world operations.
Effective troubleshooting ensures system reliability. Common issues include:
Coil Burnout: Usually caused by excessive voltage or continuous energizing.
Contact Welding: Overloaded contacts may stick, preventing proper switching.
Improper Timing: Misconfigured time-delay relays can disrupt sequential operations.
| Issue | Possible Cause | Solution |
|---|---|---|
| Coil Burnout | Overvoltage or continuous energizing | Verify voltage ratings, use protective devices |
| Contact Welding | Overload on relay contacts | Ensure load does not exceed relay rating |
| Timing Errors | Misconfigured relay timer | Check and adjust delay settings in PLC logic |
Routine maintenance, proper sizing, and protective circuitry are critical for ensuring relay PLC systems function reliably over time.
Relays are indispensable components within PLC systems, enabling precise control of high-power devices while maintaining electrical isolation and system safety. By understanding the different types of relays, their integration methods, advantages, and troubleshooting practices, engineers and technicians can design robust automation systems that meet the demanding requirements of modern industry. The synergy between relay PLC outputs and programmable logic provides both flexibility and reliability, forming the backbone of countless industrial processes worldwide.
1. What is a relay in a PLC?
A relay in a PLC is an electromechanical or solid-state switch controlled by the PLC to manage electrical loads that exceed the PLC’s direct output capacity.
2. Can a PLC operate without relays?
Yes, but relays are essential when controlling high-current or high-voltage devices that the PLC cannot drive directly.
3. What is the difference between a relay output and a transistor output in a PLC?
Relay outputs can handle higher current and AC or DC loads but switch slower, while transistor outputs are faster, suitable for low-current DC loads, and have no moving parts.
4. How do I choose the right relay for a PLC?
Consider voltage and current ratings, type of load (AC/DC), switching speed, and whether isolation or time-delay functionality is needed.
5. What are the common failures of relays in PLC systems?
Typical failures include coil burnout, contact welding, and timing errors. Correct sizing, protection, and maintenance mitigate these issues.
