In modern industrial automation, control cabinets serve as the nerve center for managing electrical systems, machinery, and processes. At the heart of these systems lies a small but crucial component—the relay module. This device plays an essential role in ensuring safe, efficient, and reliable control of electrical loads. Without relay modules, the smooth operation of automated production lines, HVAC systems, or robotic cells would be nearly impossible. Understanding what a relay module is, how it functions, and why it is indispensable in an industrial control cabinet is vital for engineers, maintenance technicians, and system integrators seeking to build high-performance, durable control systems.

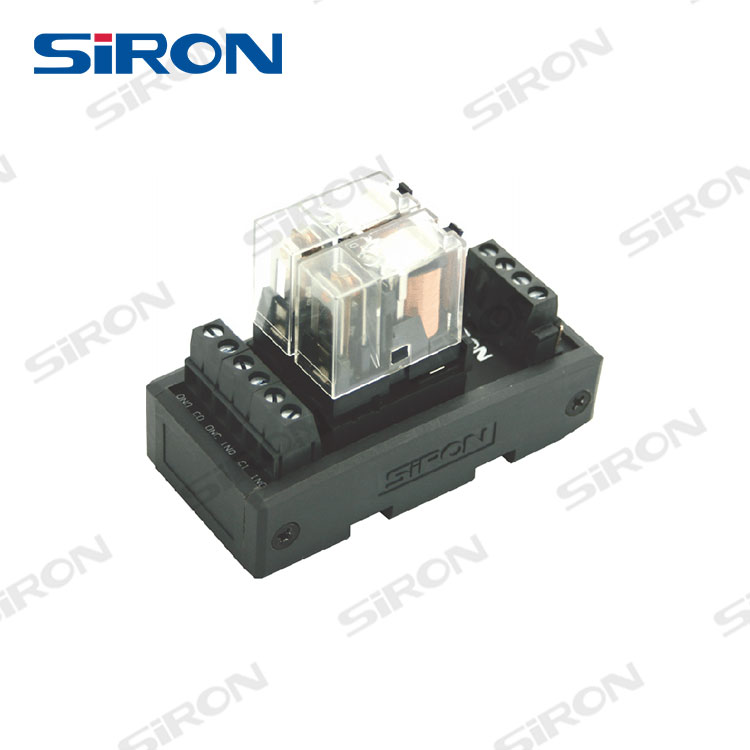

A relay module is an electromechanical or solid-state device designed to control high-power electrical circuits using low-power signals. In industrial control cabinets, it acts as a bridge between logic-level control systems (such as PLCs or microcontrollers) and power-consuming equipment (motors, heaters, solenoids, etc.).
When a low-voltage control signal activates the relay coil, it closes or opens its internal contacts to switch on or off a connected circuit. This allows the control system to safely manage heavy loads without directly handling high voltage or current.
| Component | Function | Description |
|---|---|---|
| Coil | Actuation mechanism | Energized by control signal to move internal contacts |
| Contacts | Switching element | Opens or closes the high-power circuit |
| Common Terminal | Connection point | Connects input and output circuits |
| Normally Open (NO) | Default off | Closes when coil is energized |
| Normally Closed (NC) | Default on | Opens when coil is energized |
By isolating control signals from high-power circuits, relay modules protect sensitive electronics from voltage spikes, surges, and electrical noise. This isolation is especially critical in environments with motors and inductive loads.
Industrial control cabinets are designed to centralize automation control, housing essential components like PLCs, power supplies, sensors, and actuators. Within this architecture, the relay module serves as an intermediary interface—translating low-voltage control signals into actionable power operations.
A relay module enables:
Safe signal amplification: Allowing low-voltage PLC outputs to drive high-current devices.
Electrical isolation: Preventing feedback currents that could damage control electronics.
Flexible configuration: Supporting multiple circuits and load types.
Fault protection: Acting as a safeguard during overload or short-circuit conditions.
In essence, the relay module enhances operational reliability, modularity, and scalability within the control cabinet—qualities indispensable for industrial automation systems.
Different industrial environments demand different relay types. Choosing the right relay module depends on the load characteristics, control logic, and safety requirements.
These are the most traditional type, using physical contacts and coils. They are valued for their simplicity, low cost, and suitability for AC/DC switching. However, they wear out mechanically over time.
SSR modules use semiconductor components instead of moving contacts. They offer faster switching speeds, longer lifespans, and silent operation, making them ideal for high-speed or noise-sensitive applications.
These combine the advantages of EMR and SSR designs. They provide fast switching capability with reduced wear, suitable for applications requiring both durability and precision.
| Type | Switching Mechanism | Advantages | Limitations | Common Applications |
|---|---|---|---|---|
| EMR | Mechanical contacts | Cost-effective, easy to replace | Mechanical wear, slower | General-purpose switching |
| SSR | Semiconductor-based | Silent, durable, fast | Higher cost, heat dissipation | High-speed automation |
| Hybrid | EMR + SSR combo | Balanced performance | Complex design | Motor control, PLC systems |
Selecting the proper relay module type ensures long-term efficiency, cost savings, and reliability of the control cabinet.
Proper integration of relay modules requires attention to design, layout, and electrical specifications. Poorly planned relay placement can cause signal interference, overheating, or even electrical failure.
Voltage and Current Ratings – Ensure the relay can handle both the control voltage and load current safely.
Contact Configuration – Choose between SPST, SPDT, or DPDT based on the switching needs.
Isolation Voltage – Verify sufficient isolation to protect control circuits from high voltage spikes.
Mounting Method – Use DIN-rail mounted relay modules for easier installation and maintenance.
Environmental Factors – Consider temperature, humidity, and vibration conditions inside the control cabinet.
| Parameter | Typical Value | Description |
|---|---|---|
| Control Voltage | 24V DC | Signal voltage from PLC or controller |
| Load Voltage | 250V AC | Maximum voltage controlled |
| Load Current | 10A | Maximum switching current |
| Contact Form | SPDT | Single-pole double-throw |
| Isolation | 2000V | Electrical isolation between coil and contacts |
Properly rated relay modules ensure long-term system safety and prevent costly downtime.
Programmable Logic Controllers (PLCs) are the brains of industrial automation. Relay modules function as the muscles, executing the electrical actions dictated by the PLC’s logic.
PLCs often output low-level control signals (e.g., 24V DC), insufficient to drive high-power devices. Relay modules act as amplifiers—translating these signals into robust switching commands that control actuators, motors, and valves.
By connecting relay modules to the PLC’s output terminals, system designers gain:
Flexible output expansion
Simplified wiring architecture
Protection from overload and surges
Modular scalability for future upgrades
This integration is the foundation of modern automation systems, combining precision control with robust power management.
Relay modules offer multiple performance and safety benefits that make them indispensable in industrial control applications.
Electrical Isolation – Protects sensitive PLC and sensor circuits from voltage transients.
Load Control Flexibility – Enables switching of AC/DC loads with the same control system.
Safety Enhancement – Allows separation of control and power circuits for maintenance and fault handling.
Signal Amplification – Boosts weak control signals to operate high-current devices.
Cost Efficiency – Reduces system complexity and the need for heavy-duty control electronics.
Furthermore, using relay modules enables predictive maintenance through easy monitoring of contact status and performance degradation, minimizing unplanned downtime.
Relay modules are found across nearly every industrial sector due to their versatility and reliability.
Motor Control Systems – Switching pumps, conveyors, and fans.
Lighting Control – Managing industrial or outdoor lighting systems.
Heating and Cooling Circuits – Controlling electric heaters and HVAC systems.
Safety Interlock Systems – Ensuring machinery operates only under safe conditions.
Signal Conversion – Translating low-voltage PLC signals into high-power actuation.
These applications illustrate the relay module’s central role in automation infrastructure—bridging logic and power in a safe, modular, and maintainable manner.
To ensure reliability and longevity, periodic inspection and maintenance of relay modules are essential.
Visual Inspection: Check for discoloration, corrosion, or contact wear.
Load Testing: Verify switching response under operational loads.
Thermal Monitoring: Ensure proper ventilation to avoid overheating.
Replacement Cycles: For EMRs, replace contacts periodically; SSRs require less frequent maintenance but must be checked for thermal damage.
| Issue | Possible Cause | Corrective Action |
|---|---|---|
| Relay not switching | Coil failure or wiring issue | Verify voltage and continuity |
| Intermittent operation | Loose terminal or vibration | Secure all mounting points |
| Overheating | Overload or poor ventilation | Reduce load or improve airflow |
| Contact sticking | Excessive current | Use higher-rated relay module |
Routine maintenance extends the lifespan of both the relay module and the control cabinet, ensuring consistent system performance.
A relay module is more than just a switching device—it’s a vital control component that ensures safety, efficiency, and flexibility in industrial control cabinets. By isolating low-power control logic from high-power circuits, relay modules protect systems, enhance reliability, and simplify automation design. Whether electromechanical, solid-state, or hybrid, the right relay module can significantly improve operational performance and reduce maintenance costs. In any industrial control system, the relay module remains an indispensable link between intelligent control and powerful action.
1. What is the main purpose of a relay module in a control cabinet?
It allows low-voltage control systems, like PLCs, to safely switch high-voltage or high-current devices while maintaining electrical isolation.
2. How does a relay module differ from a contactor?
While both control electrical loads, relays are designed for low to medium current switching, whereas contactors handle much higher power levels typically used in heavy motor applications.
3. Can solid-state relay modules replace electromechanical ones?
Yes, in many cases. SSRs offer faster switching, longer lifespan, and silent operation, though they are more expensive and require heat management.
4. How many relays can be installed in a single control cabinet?
This depends on cabinet size, wiring layout, and power distribution design. DIN-rail relay modules allow compact, modular installations.
5. What safety precautions should be taken when handling relay modules?
Always disconnect power before maintenance, verify correct voltage ratings, and ensure proper grounding and ventilation inside the cabinet.
