How Does An 8-channel Relay Board with Base Work

Introduction

An 8-channel relay board with base is a powerful and flexible control module widely used in automation, IoT, robotics, smart home systems, and industrial control DIY setups. Its appeal lies in consolidating multiple relay channels in a single module—combined with a “base” (often meaning a mounting board, socket, or breakout base) that simplifies wiring, mechanical support, and integration. In this article, I will dissect how an 8-channel relay board with base works, exploring its internal architecture, signal flow, power handling, practical wiring, common pitfalls, and design trade-offs. You will finish with actionable insights on selecting or deploying one in your next project.

Core Functional Blocks of an 8-Channel Relay Board with Base

To understand how an 8-channel relay board with base operates, it helps to break it down into its essential submodules. Typically, such a module comprises:

1. Relay coils and switching contacts

2. Driver circuitry and isolation

3. Control logic interface (digital inputs)

4. Power supply and distribution

5. Base / socket / mounting substrate

Each of these blocks works in concert to allow control of eight independent high-voltage (or high-current) circuits from low-voltage control signals. Below is a more detailed view of each block’s role.

When the control logic triggers one of the eight channels, the driver circuit activates the corresponding coil, which then mechanically or magnetically switches the relay’s contacts (from Normally Open to Closed, or vice versa). The “base” supports connection to external load wiring and ensures a stable mechanical interface.

Signal Flow: From Logic Command to Switching Output

Walking through a single channel’s signal path helps clarify how an 8-channel relay board with base works in practice. The following steps describe the journey of a control signal until the load is switched.

1. Control input (digital logic signal):
   A microcontroller, PLC, or control board sends a digital signal (e.g. HIGH or LOW) to the channel’s input pin (often labelled IN1 through IN8). This pin senses the control logic voltage relative to board ground.

2. Driver stage and optionally isolation:
   The input signal drives a transistor or MOSFET that in turn supplies current to the relay coil. Often, an optocoupler (optical isolator) is inserted between the control logic and the driver to isolate high-voltage interference from the control side. The transistor must be sized to handle coil current and switch rapidly.

3. Relay coil energizes:
   When the transistor allows current flow, the coil generates a magnetic field. That magnetic field rearranges the position of a mechanical arm or contact, connecting or disconnecting the common terminal (COM) to either the Normally Open (NO) or Normally Closed (NC) terminal.

4. Snubber or suppression elements (optional):
   To mitigate voltage transients (especially for inductive loads), the board often includes a flyback diode (for DC coils) or RC snubber across the contact or coil.

5. External load switching via base interface:
   The switched output is relayed through screw terminals, pin headers, or socketed contacts on the base, connecting to external devices (motors, lights, solenoids, etc.). The “base” ensures each relay’s output lines are clearly separated and arranged for easy wiring.

6. Feedback indicators (LEDs, status lines):
   Most 8-channel relay boards include channel status LEDs (one per relay) to show when a given channel is active, aiding debugging and monitoring.

Repeated across eight channels in parallel, this architecture enables independent control of multiple devices while sharing a common logic and power infrastructure.

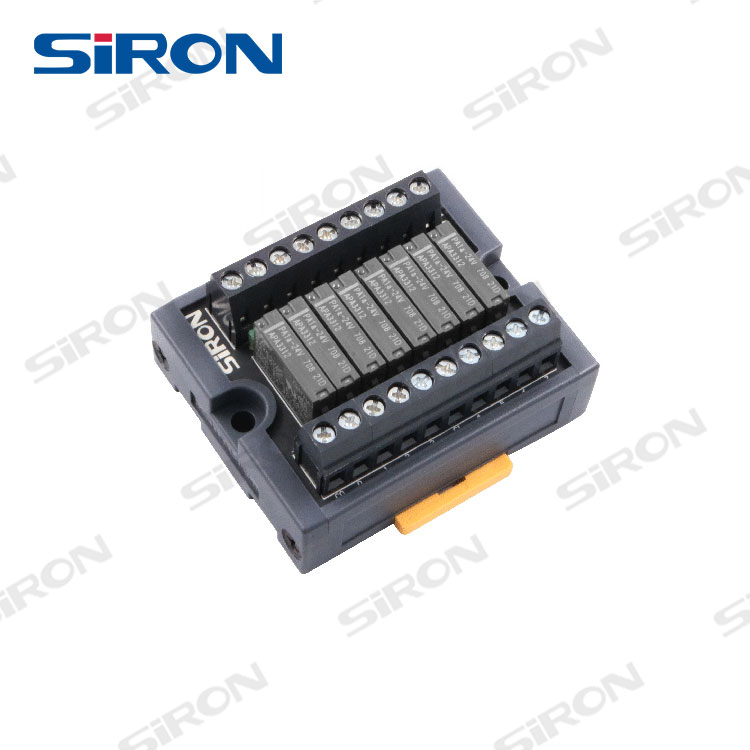

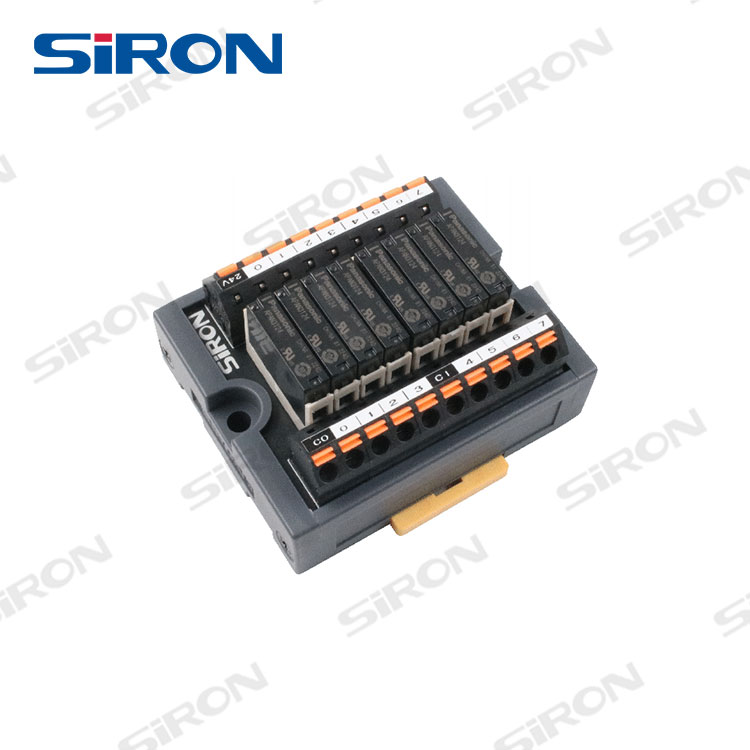

Role and Design of the Base

Often the term “with base” implies the relay module includes or is intended for use with a mounting base, socket, or breakout board that handles mechanical and wiring aspects. That base contributes in several meaningful ways:

• Ease of wiring: Instead of soldering wires to small pads, users can use screw terminals, barrier strips, or pin headers mounted on the base for robust connections.

• Modularity / plug-in design: The relay board can plug into a base (or socket) so that boards can be swapped without re-wiring the load side permanently.

• Physical stability and spacing: The base ensures consistent spacing, clearance for high-voltage isolation, and mounting holes to affix the module securely.

• Power & ground distribution: The base often routes the supply voltage and common ground lines to each channel, simplifying the layout so that each relay has access to the shared bus without redundant traces.

• Keying and alignment: The base can enforce correct orientation, prevent mis‐insertion, and sometimes carry labels or color codes for clarity.

Thus the base serves as the interface layer between the relay board’s internal switching electronics and the external environment (loads and control wiring). Its design must maintain isolation, avoid crosstalk, and meet safety clearance standards.

Practical Wiring & Power Considerations

A large portion of failures or malfunction in real systems arises not from the relay board itself, but how one wires it and provisions power. Here’s what to watch out for and best practices when working with an 8-channel relay board with base.

Power budgeting and supply isolation

• Each relay coil typically consumes tens to a few hundred milliamps (for example, a 5 V relay might draw ~70–100 mA). Eight relays, if all active simultaneously, could require 600–800 mA or more.

• The control logic (e.g. MCU) should not be tasked to power the relay coils directly—use a dedicated power rail or supply.

• If the board supports opto-isolation, separate the coil supply (JD-VCC or equivalent) from the logic VCC. That reduces shared interference. Many users report that a board may not be “true isolated” unless the ground is decoupled and optoisolators are properly placed. Reddit

• Always connect common ground (control side) to the relay board ground unless the design deliberately isolates via optocouplers.

Input logic conventions: active-high vs active-low

• Some boards treat a LOW signal (0 V) as activation (active-low), others treat HIGH (e.g. 5 V) as activation (active-high). This behavior is often selectable via a jumper or depends on the driver circuit arrangement. For instance, some boards use “low-level trigger” style where sending a logic LOW activates the coil.

• Confirm the logic convention of your specific board before wiring to avoid unintentionally triggering all relays.

Snubber circuits and inductive load protection

Switching inductive loads (motors, solenoids, coils) can generate large voltage spikes (back-EMF). To protect both the relay contacts and the driver electronics:

• Ensure a proper flyback diode across DC coil relays (if present).

• For AC load switching, incorporate an RC snubber network or MOV (metal-oxide varistor) across the contacts.

• Use contact suppression networks (RC or varistor) in parallel with the load (only if the load tolerates it).

• Keep wiring leads short and twisted to reduce parasitic inductance and interference.

Wiring layout, isolation, and safety

• Maintain creepage and clearance distances between high-voltage lines—especially important when relays switch mains voltage.

• Route low-voltage control wires separately from high-voltage switched lines to reduce interference.

• Use shielded cables or twisted pairs for long control runs.

• Fuse or protect each load channel appropriately to guard against overloads or short circuits.

• If the base is socketed, ensure a firm mechanical connection and confirm pins are fully seated.

Example wiring matrix

Here is a simplified wiring table for one channel of an 8-channel relay board:

One must scale that wiring eight times, but the base usually routes common rails so that you don’t have to wire VCC and GND eight times separately.

Use Cases & Performance Trade-offs

Understanding how an 8-channel relay board with base works also means knowing where it excels and where it is less suitable. Below are some use cases, along with comparative trade-offs.

Common use cases

• Smart Home / Building Automation: controlling lights, fans, valves, door locks, HVAC zones

• Industrial control panels: driving pumps, solenoids, alarms, actuators

• Robotics / mechatronics: switching motors or actuator circuits

• Test rigs / labs: multiplexing high-current loads under software control

• Remote I/O expansion: as a slave to microcontroller or PLC, aggregating multiple outputs

Performance trade-offs

When selecting your 8-channel relay module, consider your worst-case loads, switching frequency, environmental conditions, and whether you’ll benefit from opto-isolation or galvanic separation.

Example: Operating a 5V 8-Channel Relay Board with Arduino

Let me walk you through a practical example to illustrate how an 8-channel relay board with base works in a real setup: using an Arduino (5 V logic) to drive a relay module that controls several DC loads.

Components and assumptions

• Arduino Uno (5 V logic)

• 8-channel relay board rated for 5 V coil and supports low-level trigger

• External 5 V power supply able to deliver ≥ 1 A

• Several DC loads (e.g. small motors or LEDs) of moderate current (e.g. < 2 A each)

Wiring steps

1. Power the relay board separately
   Connect the 5 V external power supply to the relay board’s JD-VCC (or coil supply) and GND.

2. Logic connection between Arduino and relay
   Connect Arduino’s 5 V output to the relay board’s VCC (logic) pin. Also connect Arduino GND to relay board GND (common ground).

3. Select trigger mode
   If your module has a jumper for “HIGH/LOW” trigger, set it appropriately (for instance, to “LOW” for active-low behavior).

4. Connect control lines
   Wire Arduino digital output pins D2–D9 to the relay board IN1–IN8.

5. Load wiring
   Connect your load between the relay module’s NO (or NC) output and your supply, with the other side of the load returning to supply ground.

6. Write and upload code
   In the Arduino sketch, set D2–D9 as OUTPUT and drive them HIGH or LOW as needed. Use caution to energize one or multiple relays, monitoring current draw.

7. Test stepwise
   Activate one relay at a time, confirm the corresponding LED on the relay board lights, and verify the attached load behaves (turning on/off) correctly.

Observations and considerations

• Ensure the external 5 V supply can support current surges when multiple coils switch simultaneously.

• Use delays or staggering of relay activation if needed to avoid drawing a large inrush current.

• Watch for voltage drops—if the relay board voltage dips significantly under load, the relays might chatter or fail.

• Use protection (diodes, snubbers) if the loads are inductive.

This hands-on example reinforces how the driver, power, logic, and base wiring all coordinate in a real system.

Common Pitfalls & Troubleshooting

Even with a good understanding of how an 8-channel relay board with base works, users often encounter problems. Below are frequent pitfalls and how to troubleshoot them.

Pitfall 1: Relay chatter, flicker, or misoperation

Cause: insufficient power supply, voltage drop, interference, or inadequate decoupling.
Solution: use a stable supply with sufficient current headroom, add decoupling capacitors, ensure wiring is robust and voltage drops minimal.

Pitfall 2: All relays activate inadvertently

Cause: incorrect trigger logic (active-low vs active-high), floating inputs, or shared noise coupling.
Solution: pull-up or pull-down resistors on input lines, verify jumper settings, avoid floating inputs, isolate wiring.

Pitfall 3: Loss of isolation / ground loops

Cause: improper connection of grounds or use of non-isolated modules.
Solution: follow datasheet instructions carefully, only tie grounds when required, use optoisolated units if needed.

Pitfall 4: Contact welding or failure

Cause: switching loads beyond relay rating, arcing, or absence of suppression.
Solution: use snubbers, ensure ratings are respected, possibly use external contactors for heavy loads.

Pitfall 5: No clicking or LED feedback

Cause: missing power, reversed supply polarity, faulty driver transistor, damaged module.
Solution: check power rails, confirm supplies to coil and logic, test individual channels, measure coil current.

Choosing or Designing a Better 8-Channel Relay Module

When deciding on or designing your own 8-channel relay board with base, keep the following criteria in mind to ensure you get a robust and useful module:

1. Coil voltage matching your system — 5 V, 12 V, etc.

2. Coil current and board-level current capability — ensure the power supply and traces support full activation of all relays.

3. Isolation / optocouplers — if you care about noisy loads or protecting your control circuitry.

4. Trigger logic flexibility — ability to configure active-high vs active-low.

5. Robust base and terminal layout — screw terminals, good spacing, clear labeling.

6. Voltage and current ratings of relay contacts — make sure the relay contacts can reliably switch your intended loads.

7. Protection circuits — snubbers, diodes, MOVs, EMI suppression.

8. Thermal considerations — if many relays are on, heat accumulation matters.

9. Mechanical durability and serviceability — ease of replacing an individual relay or module.

When well designed and properly deployed, an 8-channel relay board with base becomes a dependable, scalable, and elegant solution for controlling multiple circuits from compact control logic.

Conclusion

An 8-channel relay board with base integrates eight independent relay switching channels into one modular unit, offering a coherent, maintainable, and scalable way to interface microcontrollers or control systems with real-world power loads. By pairing relay coils, driver electronics, logic interface, and a socketed base, the module abstracts much of the wiring complexity while preserving clear control paths. Understanding how it works—from input logic to coil activation and output switching—enables you to design better systems, avoid common mistakes, and confidently choose or design your own board. With attention to power distribution, isolation, load suppression, and wiring layout, such a board can reliably manage numerous actuators, lights, motors, or other loads in your smart system.

FAQ

Q1: What does “base” mean in “8-channel relay board with base”?
It typically refers to a mounting socket, breakout board, or terminal board that serves as the interface between the relay module and external wiring. The base provides mechanical stability, routing of supply and ground rails, screw terminals or connectors for loads, and alignment keying.

Q2: Can I drive all eight relays simultaneously?
Yes—provided your power supply and board traces are rated for the total coil current. If each coil draws ~80 mA, eight relays demand ~640 mA (plus overhead). Always size appropriately and ensure minimal voltage drop.

Q3: Why do some relay boards use optocouplers?
Optocouplers (optical isolators) help decouple the high-voltage switching side (relay coils or loads) from the control logic, reducing noise feedback or interference. They provide more robust protection of the control device, especially in environments with inductive loads or long wiring runs.

Q4: Is it safe to switch mains (AC) loads with these boards?
Yes, if properly designed. Ensure the relay contact rating exceeds the voltage and current of the mains load, maintain adequate isolation and clearance, use suppression (snubbers, MOVs) to control arc formation, and observe electrical safety guidelines (e.g., fuse protection, insulation).

Q5: What’s the difference between active-high and active-low trigger modes?
In active-high mode, applying a HIGH digital signal (e.g. 5 V) activates the relay. In active-low mode, pulling the input LOW triggers the relay. Many modules allow selecting either mode (via jumper or solder pad). It’s critical to match this with your control logic to avoid unexpected behavior.
