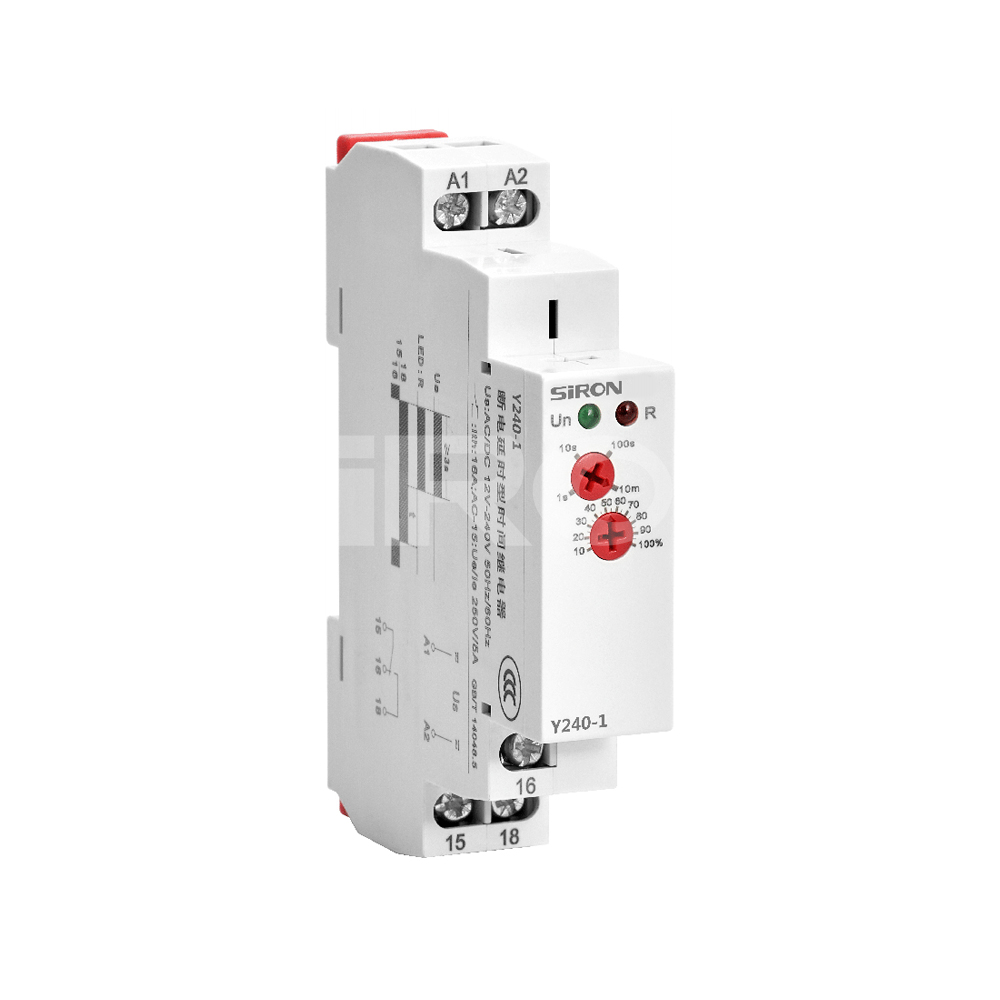

SiRON Y24 Series One Group Conversion Power Off Delay Time Relay

Name: SiRON Y24 Series One Group Conversion Power Off Delay Time Relay
Brand: SiRON
Rating: 5.0 (27 reviews)

Features

Delayrange,adjustable from 0.1s-10min (set by button)
OptionalAC/DC12V-240Vultra wide operatingvoltage specification.
There is no need for the true power off delay of auxiliary power, after the relay power offRely on internal energystorage capacitors to work.
Used when the backup power is delayed off (emergency lighting, electricity)Pressure failure,emergencyventilator, fire door control).

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

For Selection

Y24

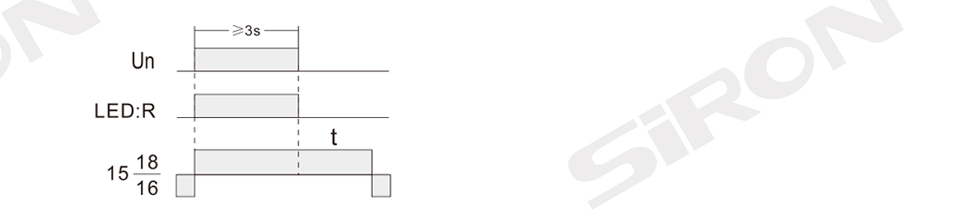

Product function

Model	Y240-1

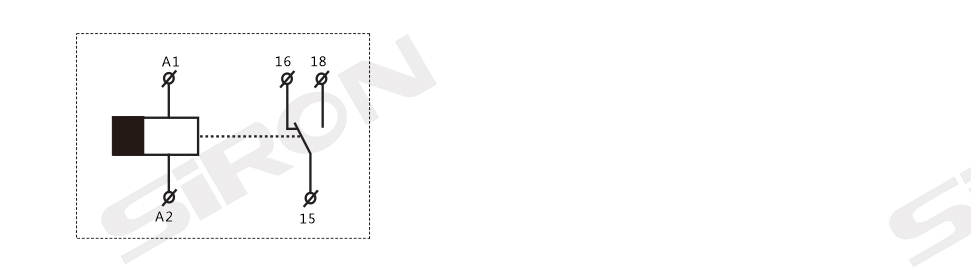

Ouput number of contact groups	A set of conversion contacts
Output contact Current	1×16A(AC1)
Ouput contact voltage	250VAC/24VDC
Rated control Supply voltage	AC/DC12-240V(50-60Hz)
Consumed power	AC0.09-3VA/DC0.05-1.7W
Power supply allowable fuctuation range	-15%;+10%
Power indicator light	Green LED
Delay range	0.1s-10min
Set way	knob
Setting preclsion	10%
Repeat accuracy	0.2%
Temperature fluctuation error	0.05%/℃,at=20℃(0.05%°F,at=68°F)
Minimum switching power	500mW
Output relay indication	Red LED
Mechanical life	1×10⁶
Electrical life (resisthve load)	1×10°
Reset the time	maximum 200ms
Operatingen Mironment temperature	-20℃~+55℃
Store and transport ambient temperatures	-35℃~+75℃
Installation	35mm Rail mounting
Protection grade	IP20
Installation position	Any
Installation altitude	≤2000M
Pollution levels	2
Wiring ability	1×2.5mm² or 2×1.5mm²0.4N.m

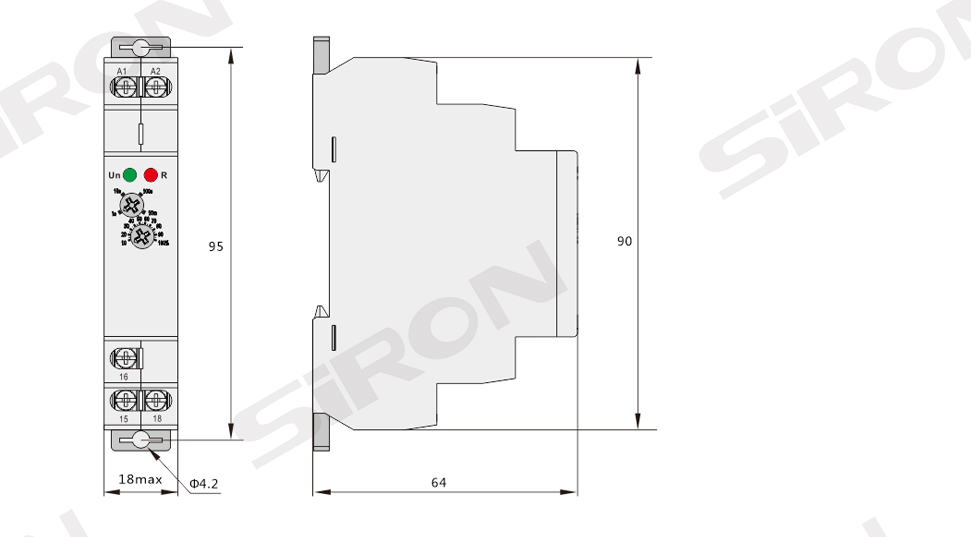

Overall dimensions	90mm×18mm×64mm
Confom to the standard	GB14048.5,IEC60947-5-1,EN61812-1
