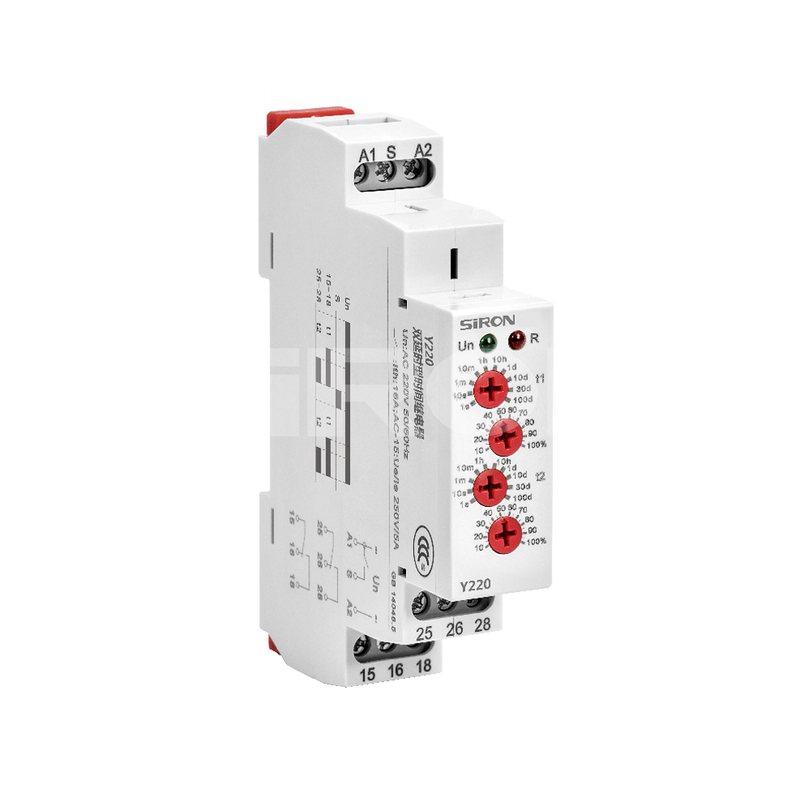

SiRON Y22 Series Group Two Conversion Double Delay Time Relay

Name: SiRON Y22 Series Group Two Conversion Double Delay Time Relay
Brand: SiRON
Rating: 5.0 (92 reviews)

Features

Ultra-wide delayrange,0.1 SEc -10 days can be set (10 gears).
Optional AC/DC12V-240V ultra wideoperating voltage specification.
Relay working stateis indicated by LED indicator light.
Multi-function time relay can be used for industrial equipment, lighting control,Heating element control,motor control, fan control, with 10 kinds ofextension, the delay range covers 0.1 second to 10 days.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

For Selection

Y22

Specifications

Model	Y220	Y220-1

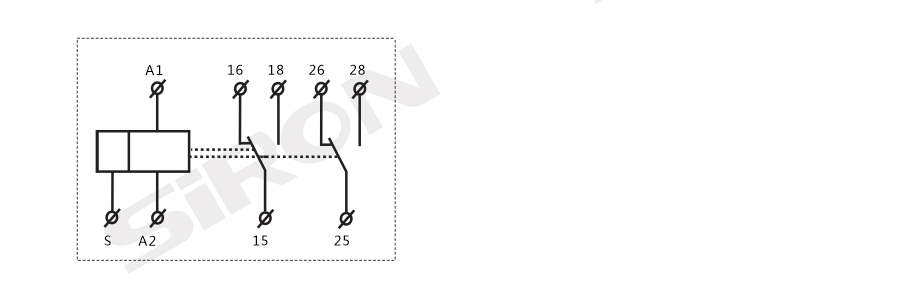

Output number of contact groups	Two groups conversion contacts
Output contact current	2×16A(AC1)
Output contact voltage	250VAC/24VDC
Rated control supply voltage	AC 220V(50-60Hz)	AC/DC 12-240V(50-60Hz)
Consumed power	ACmax.6va/1.9W	AC 0.09-3VA/DC 0.05-1.7W
Power supply allowable fluctuation range	-15%;+10%
Power indicator light	Green LED

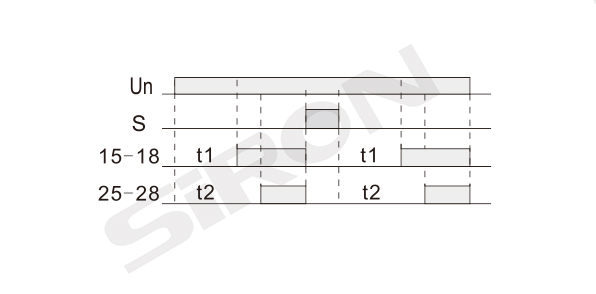

Delay range	0.1 seconds to 10 days, always open, always closed
Set way	Rotary knob
Setting precision	10%
Repeat accuracy	0.2%
Temperature fluctuation error	0.05%/℃,at=20℃(0.05%°F,at=68°F)
Minimum switching power	500mW
Output relay indication	Red LED
Mechanical life	1×10⁷
Electrical life (resistive load)	1×10⁵
Reset the time	Max 200ms
Operating environment temperature	-20℃~+55℃
Store and transport ambient temperatures	-35℃~+75℃
Installation	35mm Rail mounting
Protection grade	IP20
Instalation position	Any
Installation altitude	≤2000M
Pollution levels	2
Wiring ability	1×2.5mm²or 2×1.5mm²0.4N.m

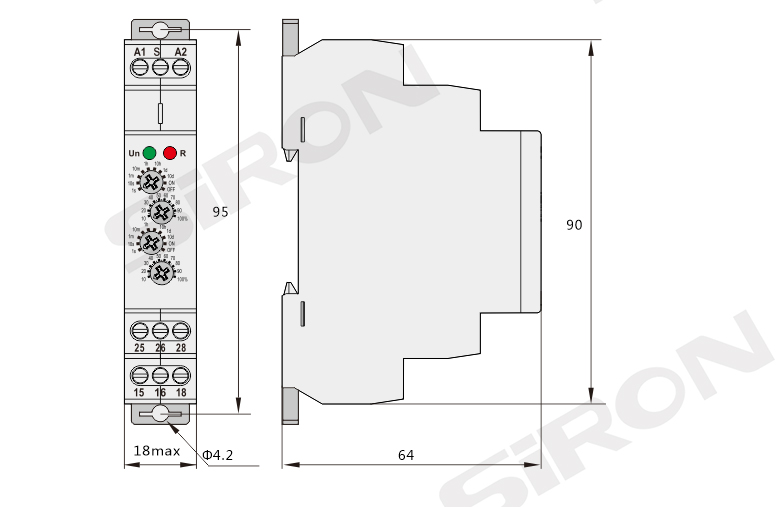

Overal dimensions	90mm×18mm×64mm
Conform to the standard	GB14048.5,IEC60947-5-1,EN61812-1
