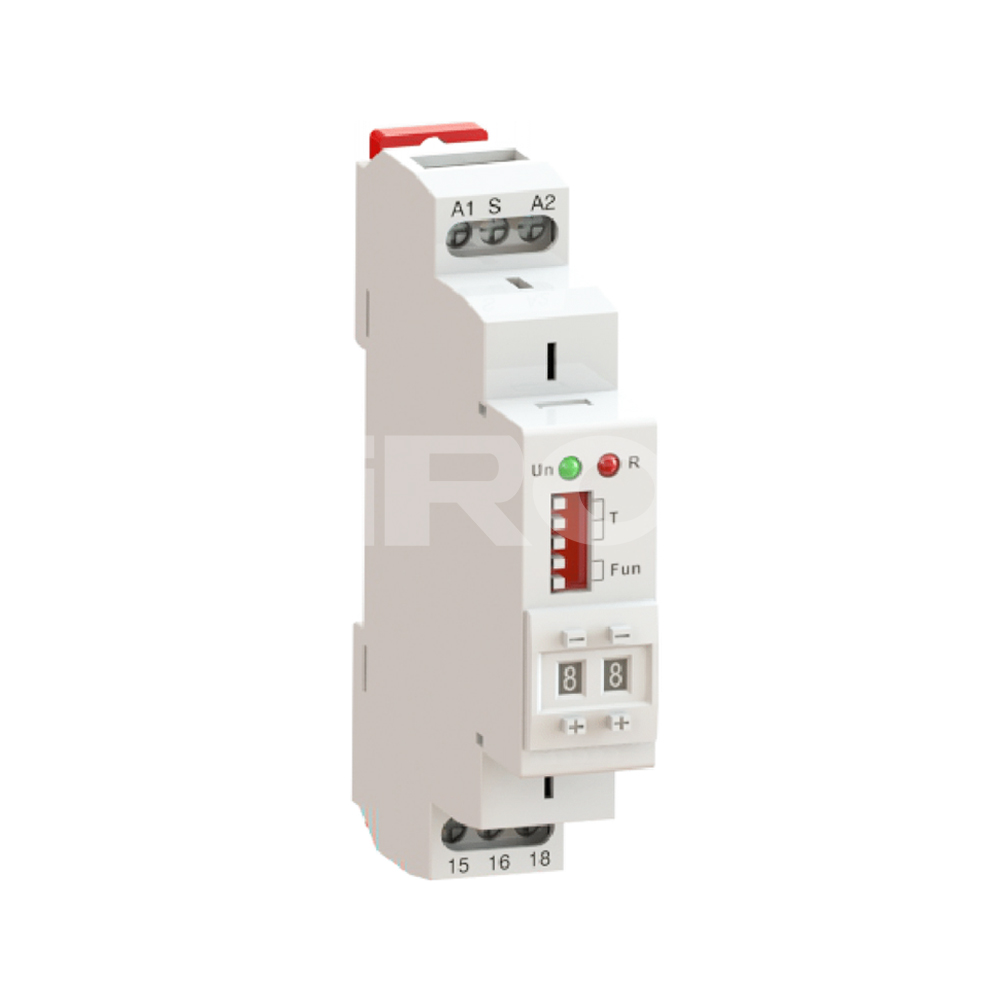

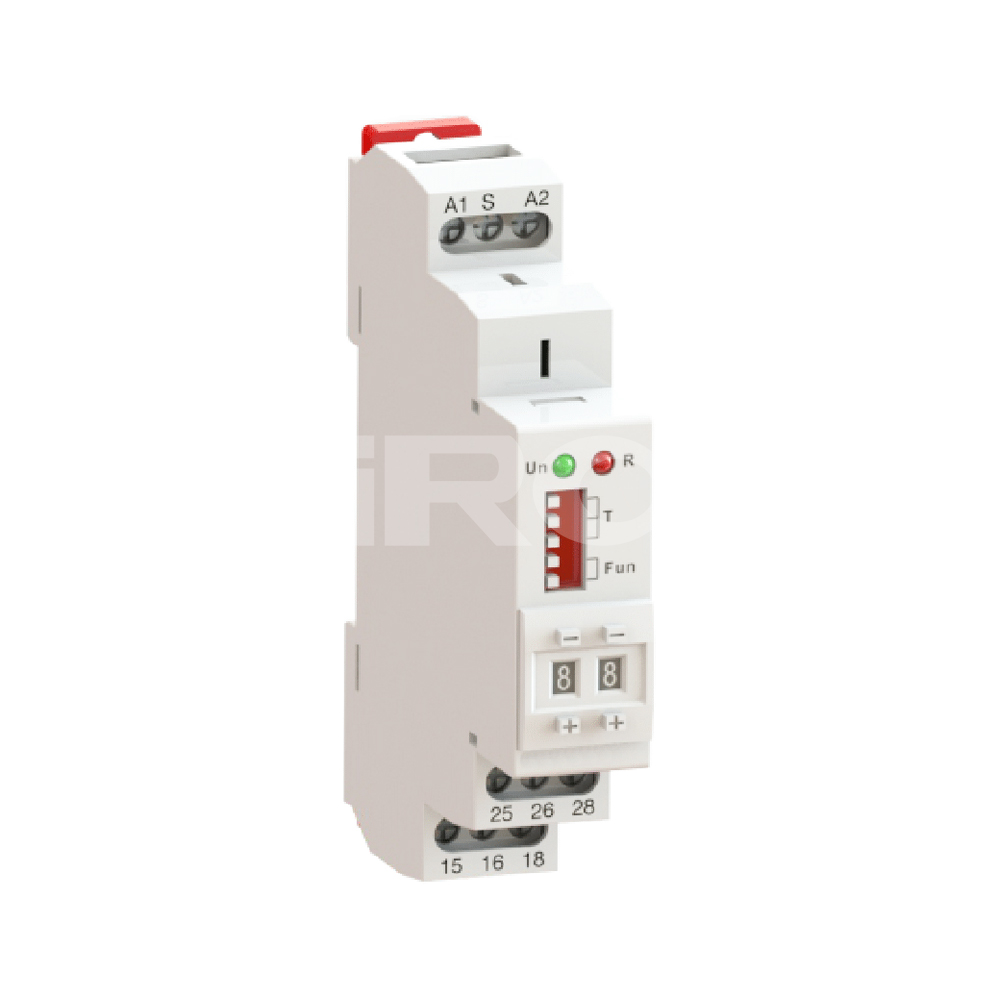

Y201-K1~Y201-K2
SiRON
8536901100
For Selection
Specifications
| Model | Y201-K1 | Y201-K1-1 | Y201-K2 | Y201-K2-1 |
| Function | A,B,E,F | |||
| Power teminal | A1-A2 | |||
| Rated impulse withstand voltage | 2.5kV | |||
| Rated insulation woltage | 250V | |||
| Output Contact Parameters | One set of conversion contacts Ith:16A;AC-15:Ue/le:250V/5A | Two sets of conversion contacts Ith:8A;AC-15:Ue/le:250V/1.5A | ||
| Rated control supply voltage | A220:AC 220V(50-60Hz) | W240:AC/DC 12-240V(50-60Hz) | A220:AC 220V(50-60Hz) | W240:AC/DC 12-240V(50-60Hz) |
| Consumed power | AC max.6VA/1.3W | W240:AC 0.09-3VA/DC 0.05-1.7W | AC max.6VA/1.9W | W240:AC 0.09-3VA/DC 0.05-1.7W |
| Power supply alowable fuctuantion range | -15%;+10% | |||
| Power indicator light | Green L E D | |||
| Delay range | 0.1 seconds to 99 hours, always open, always closed | |||
| Set way | Digital dial setting | |||
| Delay accuracy | 1% | |||
| Repeat accuracy | 0.2% | |||
| Temperature fluctuation error | 0.05%/℃,at=20℃(0.05%at=68°F) | |||
| Minimum switching power | 500mW | |||
| Output relay indicabion | Red LED | |||
| Mechanical life | 1×10⁷ | |||
| Electrical life (resistive load) | 1×10⁵ | |||
| Reset the time | Max 200ms | |||
| Operating environment temperature | -20℃~+55℃ | |||
| Store and transport ambient temperatures | -35℃~+75℃ | |||
| Installation | 35mm rail clip installation | |||
| Protection grade | IP20 | |||
| Installation position | Any | |||
| Insallation altitude | ≤2000M | |||
| Pollution levels | 2 | |||
| Wiring ability | 1×2 . 5mm² or 2×1 . 5mm²0 . 4Nm | |||
| Overall dimensions | 90mm×18mm×64mm | |||
| Weight | W240-64g.A220-62g | W240-72g.A220-70g | ||

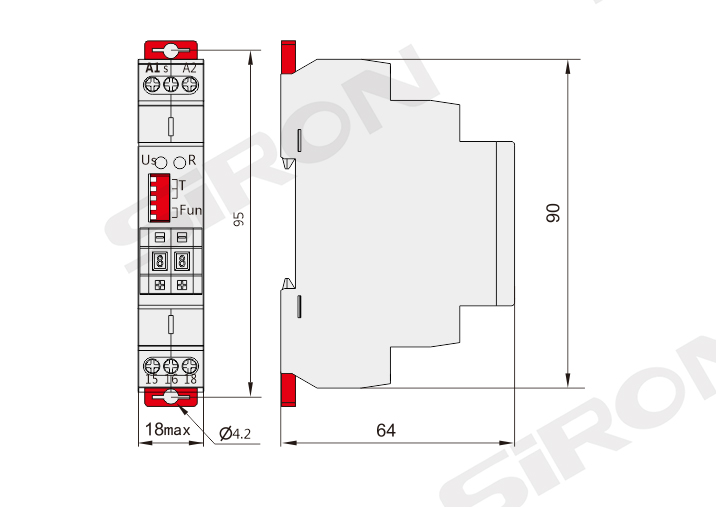

Dimensions

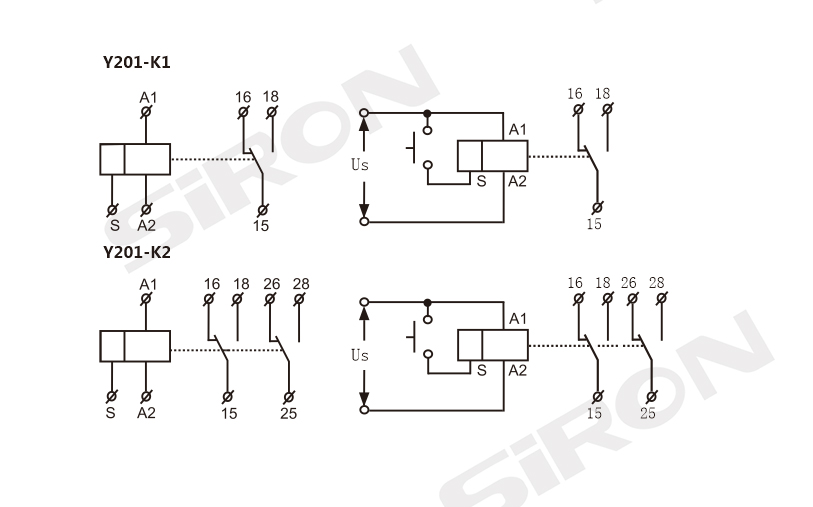

Wiring diagram

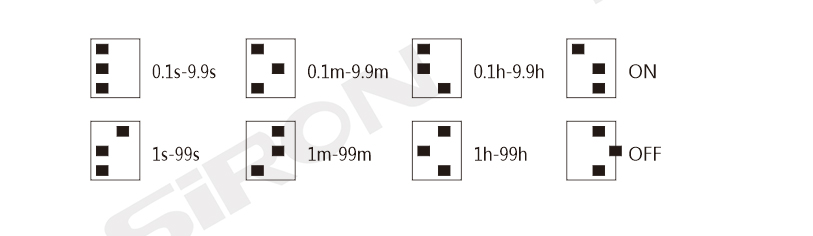

Set the time delay
