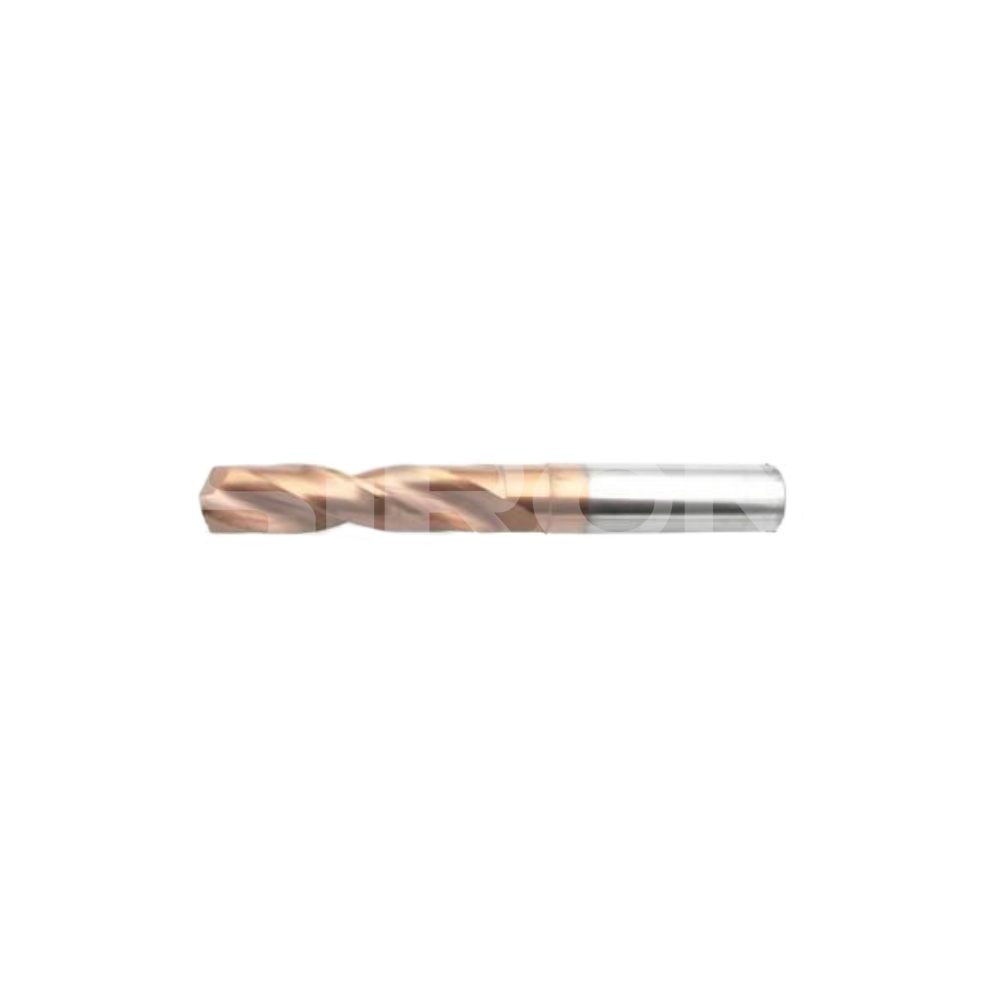

SiRON MT-K-ZW Series Twist drill.3D (external cooling type

Features
Drilling is a basic method of hole making. Drilling is often carried out on drilling machines and lathes, and can also be carried out on boring machines or milling machines. Commonly used drilling machines are desktop drilling machines, vertical drilling machines and radial drilling machines.
Availability:
Quantity:
Inquire Add to Basket

PDF Export
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • MT-K-ZW

  • SiRON

  • 8207901000

Product Description

Specification

企业微信截图_17583551094742 Application Featuers
企业微信截图_17583551157126 The F-shaped drill tip design and the optimized slot structure achieve a unity of sharpness
and strength, making the chip extraction more smooth.
An appropriate top Angle enables excellent self-centering ability and improves the quality
of hole processing.
It has a wide range of applications and can achieve efficient processing of various materials
such as P-class (steel), M-class (stainless steel), K-class (cast iron), and S-class (heat-resistant alloys).
Model MT-K-ZW specification
Twist drill.3D(external cooling type) diameter Dcinch size handle length flute length total length handle diameter handle length
D9.13*47*SD10*89 9.13 23/64 35 47 89 10 40
D9.25*47*SD10*89 9.25 35 47 89 10 40
D9.30*47*SD10*89 9.30 35 47 89 10 40
D9.50*47*SD10*89 9.50 35 47 89 10 40
D9.52*47*SD10*89 9.52 3/8 35 47 89 10 40
D9.80*47*SD10*89 9.80 35 47 89 10 40
D9.92*47*SD10*89 9.92 25/64 35 47 89 10 40
D10.00*47*SD10*89 10.00 35 47 89 10 40
D10.20*55*SD12*103 10.20 40 55 103 12 45
D10.32*55*SD12*103 10.32 13/32 40 55 103 12 45
D10.50*55*SD12*103 10.50 40 55 103 12 45
D10.70*55*SD12*103 10.70 40 55 103 12 45
D11.00*55*SD12*103 11.00 40 55 103 12 45
D11.11*55*SD12*103 11.11 40 55 103 12 45
D11.20*55*SD12*103 11.20 40 55 103 12 45
D11.50*55*SD12*103 11.50 40 55 103 12 45
D11.70*55*SD12*103 11.70 40 55 103 12 45
D11.91*55*SD12*103 11.91 40 55 103 12 45
D12.00*55*SD12*103 12.00 40 55 103 12 45
D12.50*60*SD14*107 12.50 43 60 107 14 45
D12.70*60*SD14*107 12.70 43 60 107 14 45
D13.00*60*SD14*107 13.00 43 60 107 14 45
D13.50*60*SD14*107 13.50 43 60 107 14 45
D13.70*60*SD14*107 13.70 43 60 107 14 45
D14.00*60*SD14*107 14.00 43 60 107 14 45
D14.29*65*SD16*115 14.29 9/16 45 65 115 16 48
D14.50*65*SD16*115 14.50 45 65 115 16 48
D14.70*65*SD16*115 14.70 45 65 115 16 48
D15.00*65*SD16*115 15.00 45 65 115 16 48
D15.50*65*SD16*115 15.50 45 65 115 16 48
D15.70*65*SD16*115 15.70 45 65 115 16 48
D16.00*65*SD16*115 16.00 45 65 115 16 48
D16.50*73*SD18*123 16.50 51 73 123 18 48
D17.00*73*SD18*123 17.00 51 73 123 18 48
D17.50*73*SD18*123 17.50 51 73 123 18 48
D18.00*73*SD18*123 18.00 51 73 123 18 48
D18.50*79*SD20*131 18.50 55 73 79 20 50
D19.00*79*SD20*131 19.00 55 73 79 20 50
D19.50*79*SD20*131 19.50 55 73 79 20 50
D20.00*79*SD20*131 20.00 55 73 79 20 50
