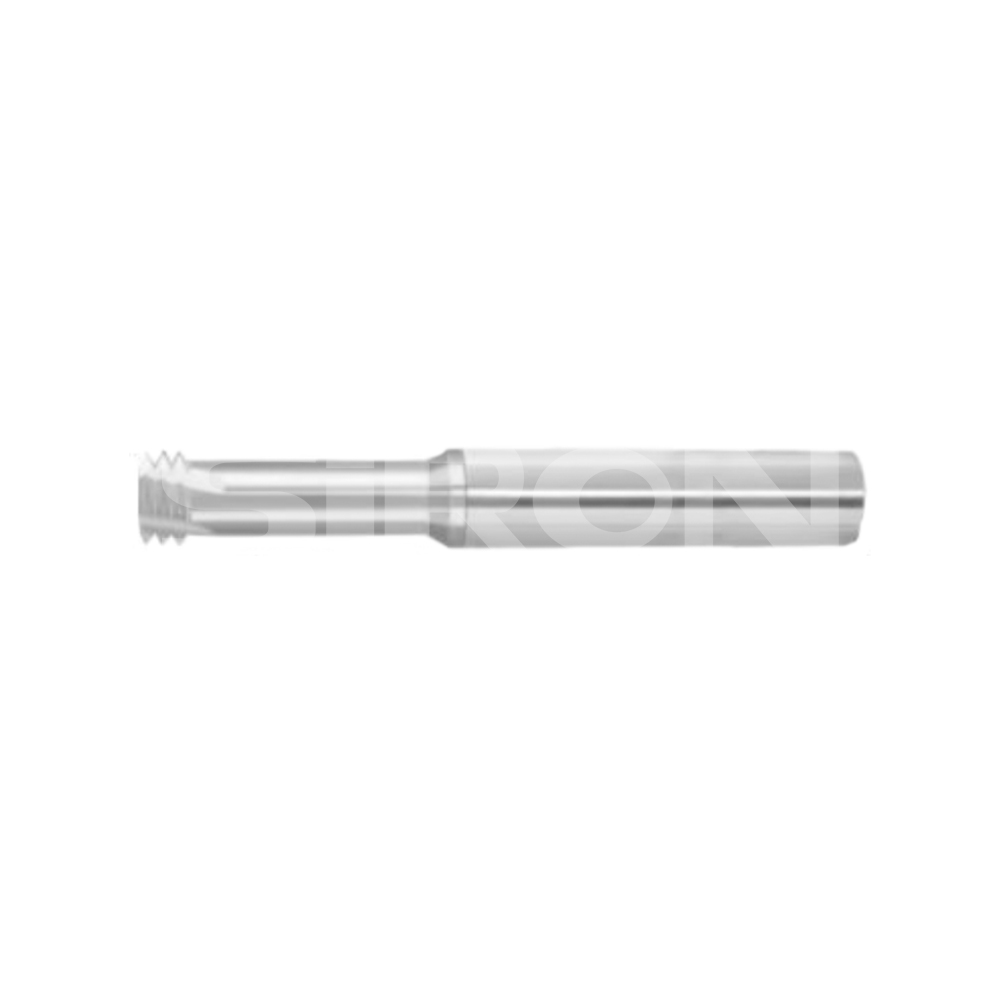

SiRON MT-K-Y Series Three-tooth (single-tooth) thread milling cutter

Features
The traditional thread processing methods are mainly to use thread turning tools to turn threads or to use taps, die and manual tapping and sleeves. With the development of CNC machining technology, especially the emergence of three-axis linkage CNC machining system, a more advanced thread processing method - CNC milling of threads can be realized. Compared with traditional thread processing methods, thread milling has great advantages in processing accuracy and processing efficiency, and it is not limited by the thread structure and thread rotation during processing. For example, a thread milling cutter can process a variety of different rotation directions. Internal and external threads. For threads that do not allow transition buckle or undercut structure, it is difficult to process by traditional turning methods or taps and die, but it is very easy to achieve by CNC milling. In addition, the durability of the thread milling cutter is more than ten times or even dozens of times that of the tap, and in the process of CNC thread milling, the adjustment of the diameter of the thread is extremely convenient, which is difficult to achieve by using the tap and die. Due to the many advantages of thread milling, the milling process has been widely used in mass thread production in developed countries.
Availability:
Quantity:
Inquire Add to Basket

PDF Export
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • MT-K-Y

  • SiRON

  • 8207901000

Product Description

Specification

            企业微信截图_17583533266977     Application Features
企业微信截图_17583533305592
Made of original imported materials and with a high-hardness composite nano-coating, the service life of the cutting tool is significantly prolonged.
The unique unequal spiral design ensures smoother chip removal and offers better shock resistance and wear resistance.
It is used in a wider range of processing environments: copper, steel parts, quenched heat-treated parts, stainless steel, titanium alloys, etc.
The hardness of the machinable material is between HRC35 and 60.。
Model MT-K-Y specification

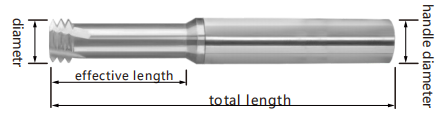

Three-tooth (single-tooth)thread milling cutter screw thread screw pitch effective length handle diameter total length blades
M1*0.25*2.75*D4*50L*3T M1 0.25 2.75 4 50 3
M1.2*0.25*3.3*D4*50L*3T M1.12 0.25 3.3 4 50 3
M1.4*0.3*3.8*D4*50L*3T M1.4 0.3 3.8 4 50 3
M1.6*0.35*4.35*D4*50L*3T M1.6 0.35 4.35 4 50 3
M1.8*0.35*4.35*D4*50L*3T M1.8 0.35 4.35 4 50 3
M2*0.4*4.4*D4*50L*3T M2 0.4 4.4 4 50 3
M2.5*0.45*5.6*D4*50L*3T M2.5 0.45 5.6 4 50 3
M3*0.5*6.5*D4*50L*3T M3 0.5 6.5 4 50 3
M4*0.7*8.7*D4*50L*3T M4 0.7 8.7 4 50 3
M5*0.8*10.8*D6*50L*3T M5 0.8 10.8 6 50 3
M6*1.0*15*D6*50 L*3T M6 1.0 15 6 50 3
M8*1.25*18*D6*60L*4T M8 1.25 18 6 60 4
M10*1.5*22*D8*60L*4T M10 1.5 22 8 60 4
M12*1.75*28*D10*75L*4T M12 1.75 28 10 75 4
M14*2.0*28*D10*75L*4T M14 2.0 28 10 75 A
M16*2.0*28*D12*75L*4T M16 2.0 28 12 75 4
M20*2.0*40*D16*100L*4T M20 2.0 40 16 100 4
M20*2.5*40*D16*100L*4T M20 2.5 40 16 100 4
M24*3*40*D16*100L*4T M24 3 40 16 100 4
M30*3.5*40*D20*100L*4T M30 3.5 40 20 100 4
