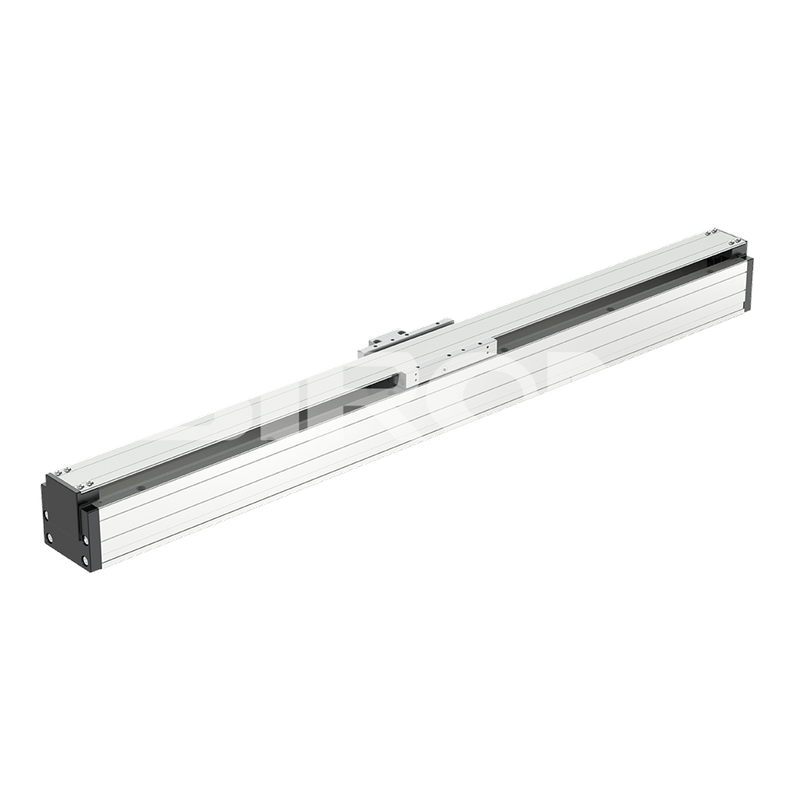

M373-60
SiRON
9001909090
About selection

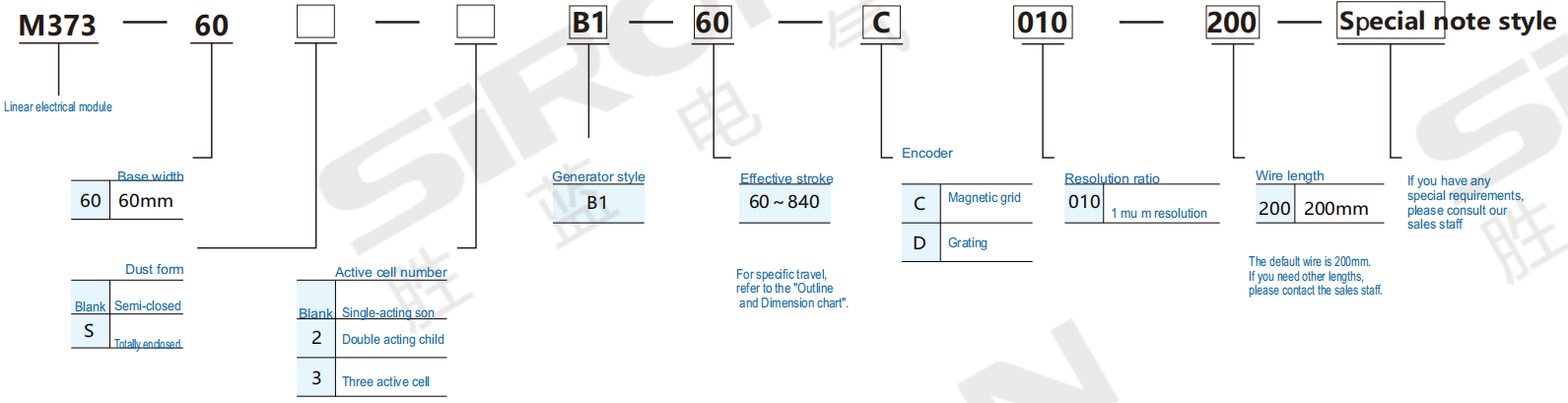

Selection examples: M373-60-B1-540-C010-200: M373 series, base width 60mm, fully enclosed, single actuator, motor type B1, effective stroke 540mm, magnetic gate encoder resolution 1μm, wire length 200mm.
Note:
1. The default value is "encoder magnetic grating (C010), grating (D010)". If you have other precision requirements, please consult our sales staff.
2. If you need the photoelectric switch, please order it separately
Product specification
| Motor model B1-W030 | B1-W030 | |
| Peak thrust | 179.0N | |
| Continue to push | 44.8N | |
| Peak current | 10.0Arms | |
| Sustainedcurent | 2.5Arms | |
| Moto constant @Tmax | 7.0N/(W1/2) | |
| Maximum con finuousdissipated power | 41.2W | |
| Force constant | 17.9N/Arms | |
| Reverseelectromotive force | 14.6Vpeak/(m/s) | |
Feedback | Magnetic grid | 1.0μm resolution cable length:200mm |
| Grating | 1.0μm resolution cable length:200mm | |
| Repeat acuracy | Magnetic grid | ±5μm |
| Grating | ±3μm | |
| Guide | Buil-in double guide rail | |
| Straightness | ±10μm/300mm | |
| Interphaseimpedance @25° | 3.2 ohms | |
| Phase-to-phase inductance | 9.4mH | |
| Electrical time constant | 30.ms | |
| Maximum terminal voltage | 460Vdc | |
| Maximum windingtemperature | 120℃ | |
| Coil weight | 0.35KG | |
| Electrical cyclelength | 20.0mm | |
| Installation method | Honizontal mounting/side mounting | |
| Load | Under conditions of acceleration of 1G, speed of 500mm/s, residence time of 0.2s, and running stroke of 600mm: Horizontal installation: load 6kg; Side-mounted installation: Load 3kg; Maximum operating speed limit: 1000mm/s | |
| Module weight | 60mm stroke 2.0kg(for every additional 60mm stroke,an increase of 0.32kg) | |
| Origin sensor(external) | K016-A3/K016-A4(optional) | |
