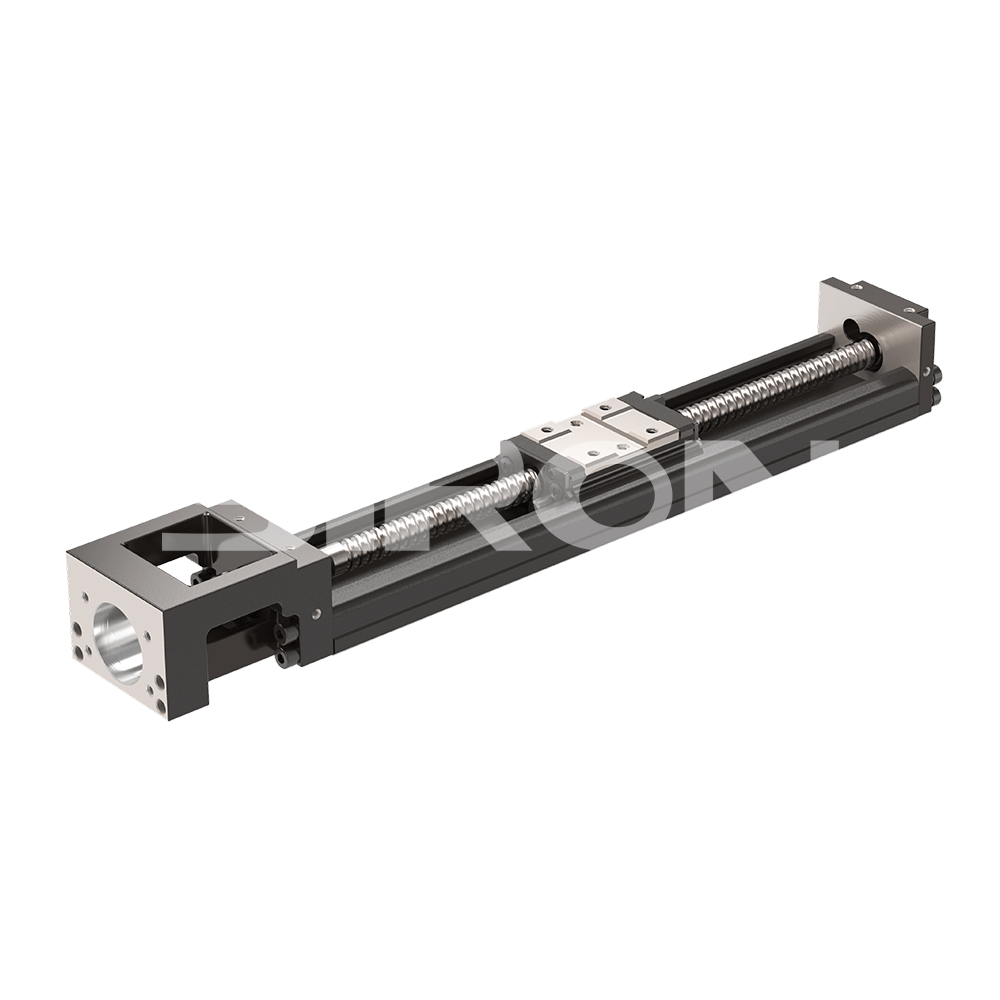

SiRON M369-40 Single Axis Slide Table

Name: SiRON M369-40 Single Axis Slide Table
Brand: SiRON
Rating: 5.0 (53 reviews)

Features:

*Integrating the function of ball screw and rolling guide railAvoid the traditional application selection, installation, debugging complexMiscellaneous, occupy a large space shortcomings.

*The guide bearing system consists of hardened steel balls on both sides Gothic double arc raceway composition, steel ball
and roll The track contact Angle is 45° to ensure that the four directions are the same Carrying capacity

*The body adopts U-shaped section, and the finite element analysis Optimization, so that the product has high rigidity and
knot Compact structure, light weight features.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M369-40
Brand:
SiRON
Code:
9001909090

40mm base 2mm lead 200mm track length 100mm track length 150mm track length

Product Description

About selection

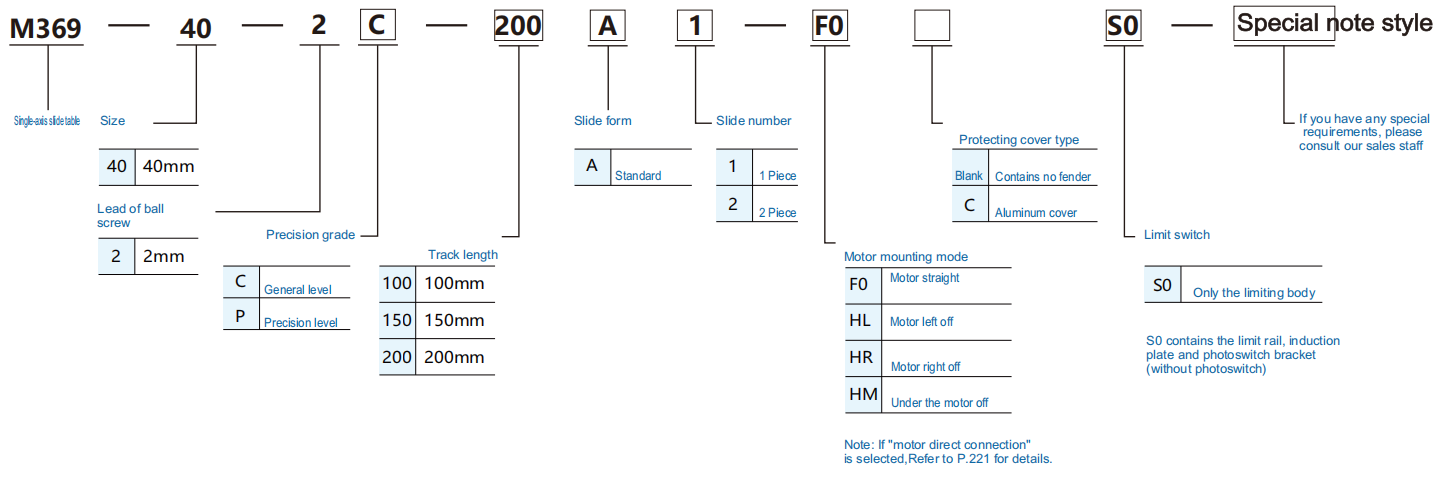

Selection example: M369-40-2C-200A1-F0S0: M369 series, size 40mm, lead 2mm, accuracy grade of general class, body length 200mm, standard sliding seat 1, motor direct connection, no cover, only limit body.

Note: 1. When the length of the main body is 100mm, the number of sliding seats is only applicable to 1.

2. If you need the photoelectric switch, please order it separately

Product specification

Model					M369-40 series
Track length					100	150	200
Accuracy dlass	Reproduciblity of localization	Precision			±0.003
		Gemeral level			±0.01
	Positioning accuracy	Precision			±0.020
	Parallelism of walking	Precision			±0.010
	Maximum starting torque	Precision			1.2
		General level			0.8
Maximum speed	Lead of ball screw				02
	Speed	Precision			270
		Geneal level			270
Load specification	Ball screw	Nominal outer diameter	Precision/General level		8
		Lead	Precision/General level		2
		Basic dynamic load rating	Precision		735
			General level		676
		Basic static load rating	Precision		1538
			General level		1284
	Linear slide	Basic dynamic load rating	Precision/General level	Slide A	3920
		Basic static load rating	Precision/General level	Slide A	6468
		Allowable static moment	Tilt MP(N-m)	Slide A1	33
				Slide A2	182
			Yaw MY(N-m)	Slide A1	33
				Slide A2	182
			Yaw MR(N-m)	Slide A1	81
				Slide A2	162
Home sensor		Outside			K017-A6(Optional)
