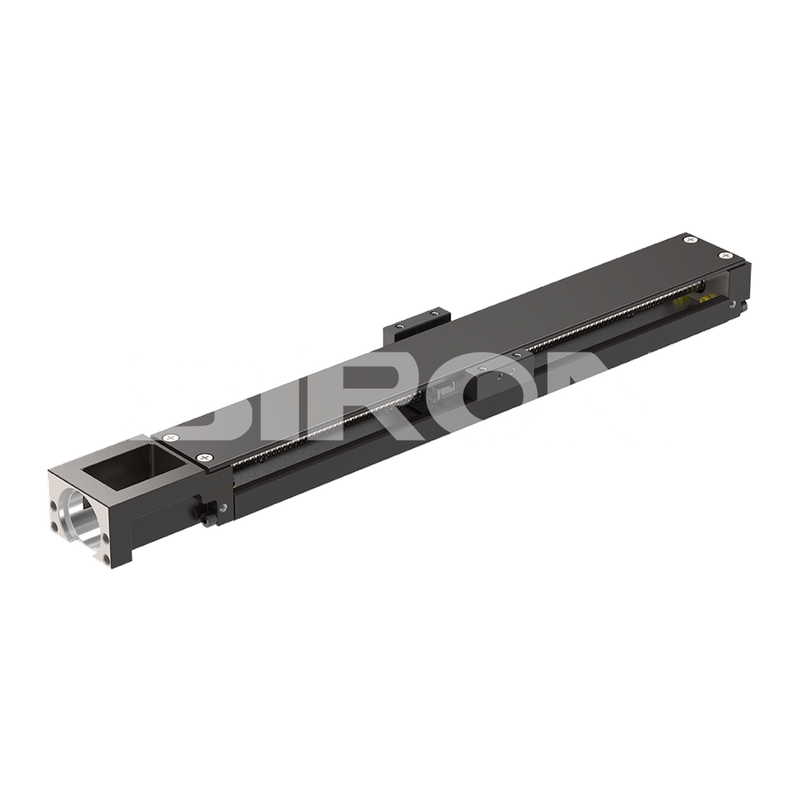

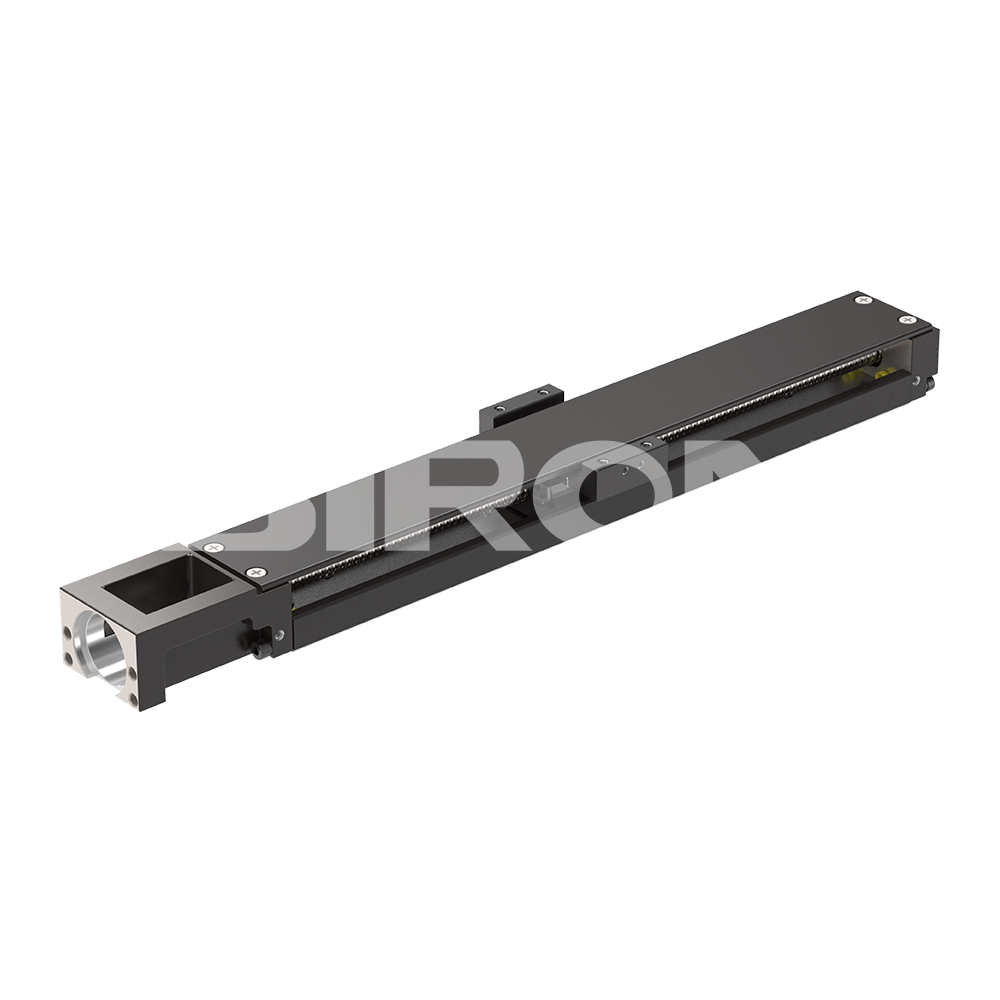

SiRON M369-30 Single Axis Slide Table

Name: SiRON M369-30 Single Axis Slide Table
Brand: SiRON
Rating: 5.0 (10 reviews)

Features:

*Integrating the function of ball screw and rolling guide railAvoid the traditional application selection, installation, debugging complexMiscellaneous, occupy a large space shortcomings.

*The guide bearing system consists of hardened steel balls on both sides Gothic double arc raceway composition, steel ball
and roll The track contact Angle is 45° to ensure that the four directions are the same Carrying capacity

*The body adopts U-shaped section, and the finite element analysis Optimization, so that the product has high rigidity and
knot Compact structure, light weight features.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M369-30
Brand:
SiRON
Code:
9001909090

30mm base 2mm lead 200mm track length 100mm track length 150mm track length

Product Description

About selection

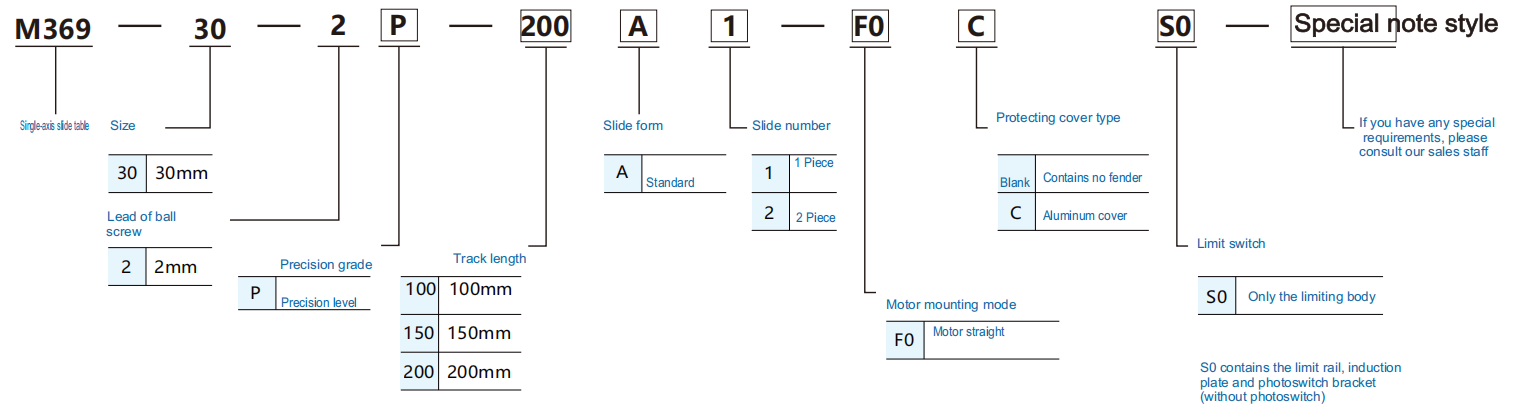

Selection example: M369-30-2P-200A1-F0CS0: M369 series, size 30mm, lead 2mm, precision grade precision, body length 200mm, standard sliding seat 1, motor direct connection, aluminum cover, limit body only.

Product specification

Model					M369-30 series
Track length					100	150	200
Accuracy dlass	Reproduciblity of localization	Precision			±0.003
		Gemeral level			±0.01
	Positioning accuracy	Precision			±0.020
	Parallelism of walking	Precision			±0.010
	Maximum starting torque	Precision			0.8
		General level			0.5
Maximum speed	Lead of ball screw				02
	Speed	Precision			200
		Geneal level			200
Load specification	Ball screw	Nominal outer diameter	Precision/General level		6
		Lead	Precision/General level		2
		Basic dynamic load rating	Precision		645
			General level		615
		Basic static load rating	Precision		1058
			General level		1008
	Linear slide	Basic dynamic load rating	Precision/General level	Slide A	2200
		Basic static load rating	Precision/General level	Slide A	3500
		Allowable static moment	Tilt MP(N-m)	Slide A1	14
				Slide A2	73
			Yaw MY(N-m)	Slide A1	14
				Slide A2	73
			Yaw MR(N-m)	Slide A1	41
				Slide A2	82
Home sensor		Outside			K017-A6(Optional)
