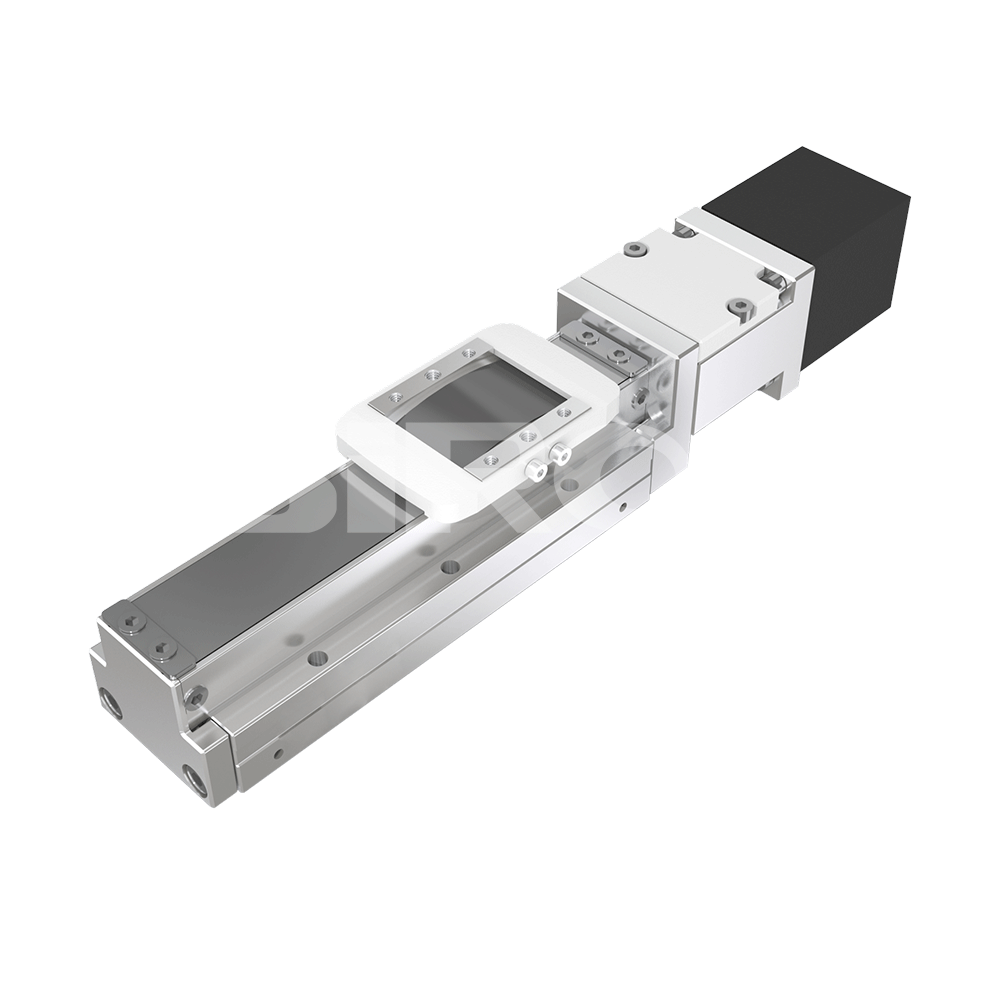

SiRON M300 Embedded Ball Screw Module

Name: SiRON M300 Embedded Ball Screw Module
Brand: SiRON
Rating: 5.0 (75 reviews)

Features:

*Track embedded screw sliding table, using track embedded, equal height straightness greatly improved, sliding table travel up to 1250mm, no removal of the cover, easy assembly,More rigid; Special steel belt structure design, can reduce dust, can be used in clean room environment;

* The width is reduced, so that the equipment installation space is smaller, the body and the slide seat one molding steel, improve the original aluminum slide seat stiﬀness;
* Do not need to remove the steel belt, can be ﬁxed from the top down or from the bottom up ﬁxed; Installation datum dock is added on the side of the body; The bottom of the body has a positioning PIN hole, convenient assembly time;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M300
Brand:
SiRON
Code:
9001909090

200mm Maximum stroke 300mm/s Maximum speed Φ6mm Ball bearing screw

Product Description

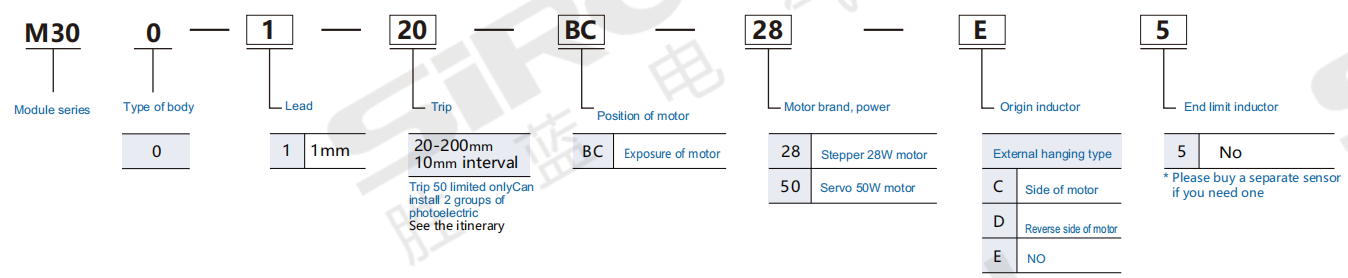

About selection

Selection example: M300-1-20-BC-28-E5 is M300 series, lead range 1mm, stroke 20, motor exposed, stepping 28W motor, no origin sensor, no limit sensor；

Note: If you need other styles, please consult our sales staff.

Origin sensor: the limit of selection stroke 50mm: (1) Origin type limit should be placed on different sides, (2) induction plates should be installed on both sides of the slide seat;

Product specification

Project			Specification
Specificatons	Repeat ability(mm)		±0.01
	Bll screw lead(mm)		1
	Maximum speed(mms)		50
	Maximum payload(kg)	Horizontal	5
		Vertical	3
	Rated thrust(n)		424
	Stroke pitch(mm)		20-200mm/10 interval
Sarts	AC Servo motor output(w)		50/Stepping 28
	Ball screw(mm)		C7φ6
	Coupling(mm)		5×3
