You are here: Home / Products / Motor / Spindle Motor / SiRON M291-A2 6000rpm 5.5Kw HSK/BT Port Grinding Electric Spindle

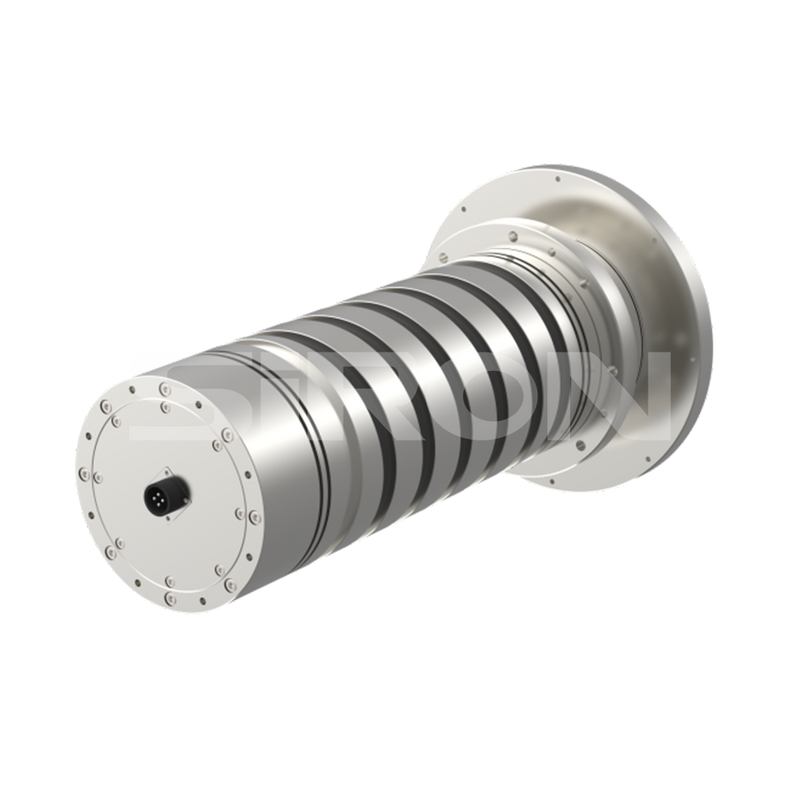

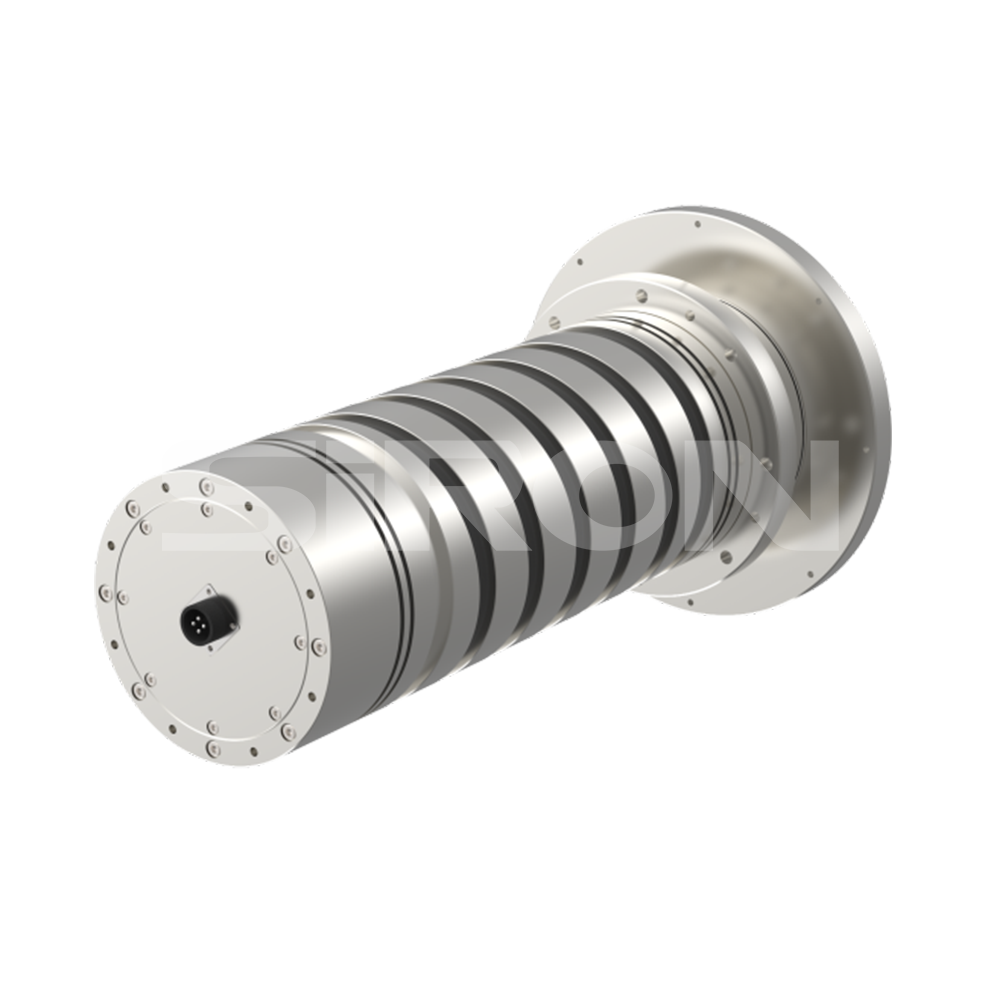

SiRON M291-A2 6000rpm 5.5Kw HSK/BT Port Grinding Electric Spindle

Name: SiRON M291-A2 6000rpm 5.5Kw HSK/BT Port Grinding Electric Spindle
Brand: SiRON
Rating: 5.0 (11 reviews)

Features

*High precision and high stability, paired with a drive motor, make it widely applicable.
*It adopts various tool holder interfaces such as BT and HSK to meet diverse customer needs.
*The labyrinth seal significantly enhances spindle sealing performance, ensuring extended spindle service life.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M291-A2
Brand:
SiRON
Code:
8483109090

6000rpm Grinding Electric Spindle HSK/BT Port Grinding Electric Spindle grease lubrication Grinding Electric Spindle

Product Description

About selection

企业微信截图_17556876219049

Specification

Connection method	HSK/BT port	5.5kw Motor parameters	Ratedspeed	1500
Spindle maximum speed	6000		Maximum speed	6000
Bearings Lubicaion	grease lubrication		Rated woltage	380
Coolingform	water-cooling		Ratedcurrent	35
Installation method	horizontally-mounted		Ratedfrequency	56
Bearing brand	NSK/NTN/SKF(optional)		Ratedtorque	35
Bearing rolling element material	Bearing Steel		Number of poles	4

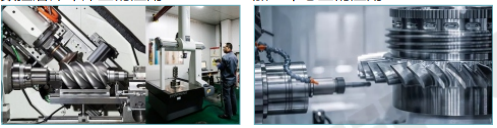

Application

企业微信截图_17556874487410

Application on machining centers

Application on CNC grinding machines

SiRON M291-A2 6000rpm 5.5Kw HSK/BT Port Grinding Electric Spindle
