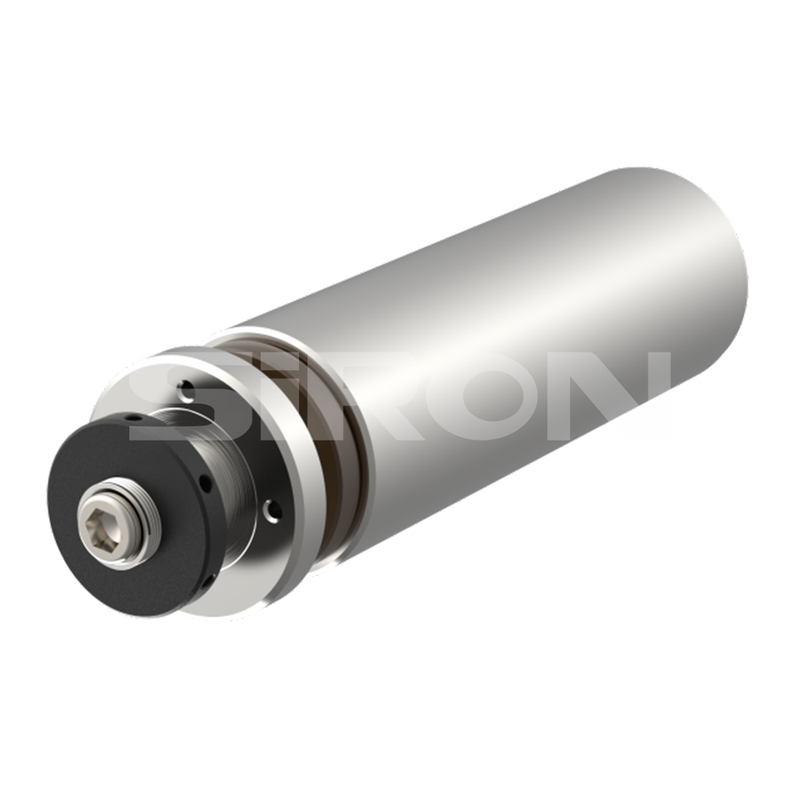

SiRON M290-A4 8000rpm Flange Connector Grinding Spindle

Name: SiRON M290-A4 8000rpm Flange Connector Grinding Spindle
Brand: SiRON
Rating: 5.0 (54 reviews)

Features

*High precision and high stability, paired with a drive motor, make it widely applicable.
*It adopts various tool holder interfaces such as BT and HSK to meet diverse customer needs.
*The labyrinth seal significantly enhances spindle sealing performance, ensuring extended spindle service life.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M290-A4
Brand:
SiRON
Code:
8483109090

8000rpm Grinding Spindle flange connector Grinding Spindle grease lubrication Grinding Spindle

Product Description

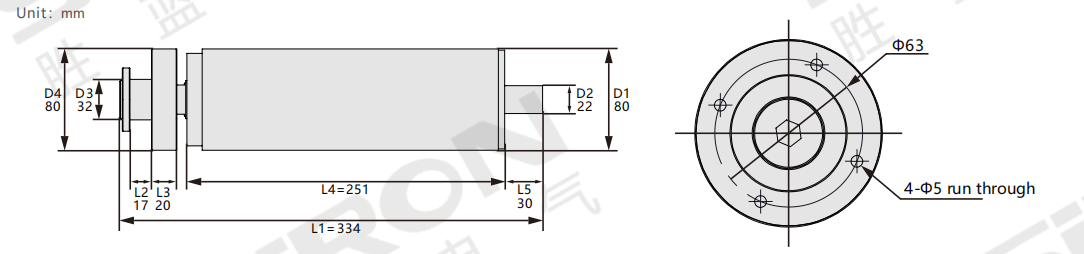

About selection

企业微信截图_17556856092394

Specification

Maximum speed	8000	Balance level	G0.4
Connection method	flange connecto	Installation method	Horizontal/vertical installation
Bearing brand	NSK/NTN/SKF(optional)	Shaft end runout	≤5.0
Bearings Lubrication	grease lubrication	Axial cone runout	≤2.0
Preload mode	Positioning pre-tightening	Axial stifness	≥85
Allowable temperature rise	≤40	Radialstifness	≥100

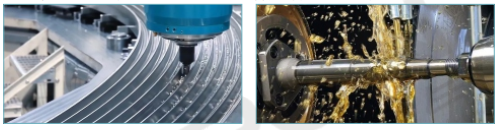

Application

企业微信截图_17556856178037

Application on CNC grinding machines

The application in CNC lathe processing

SiRON M290-A4 8000rpm Flange Connector Grinding Spindle
