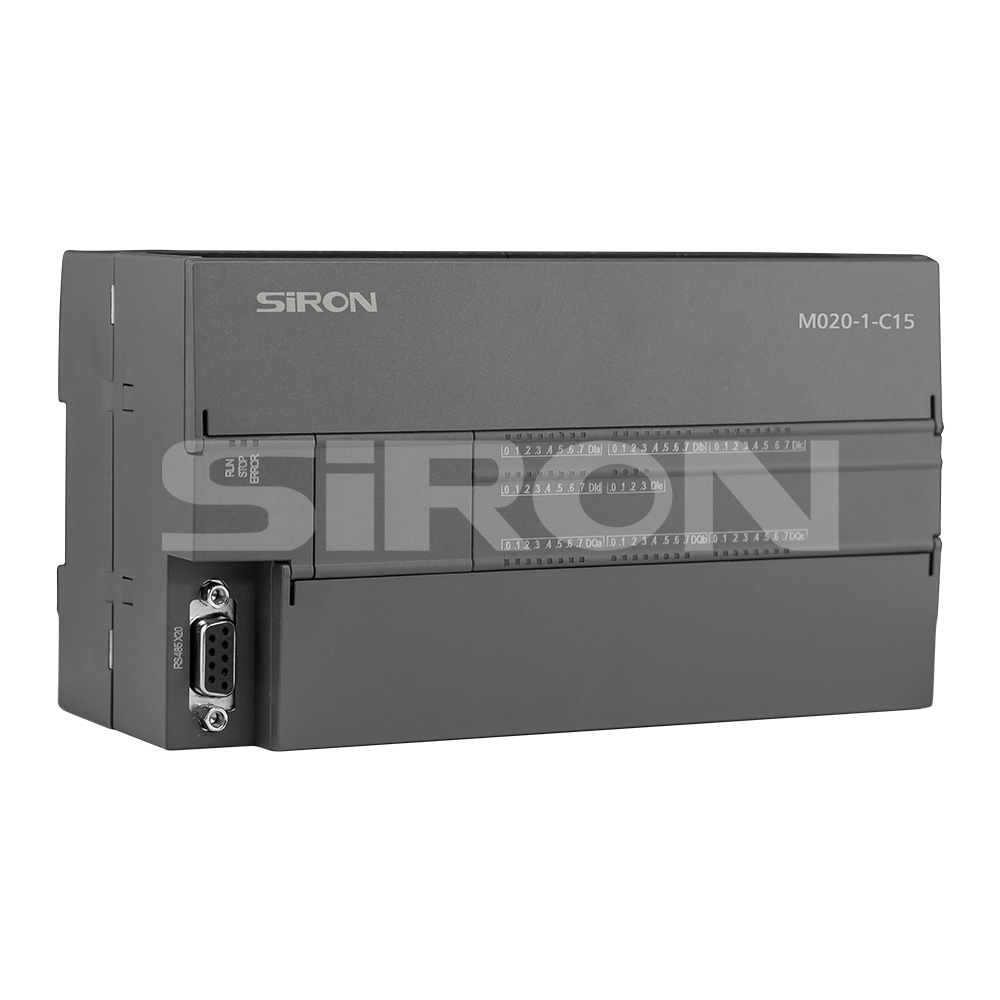

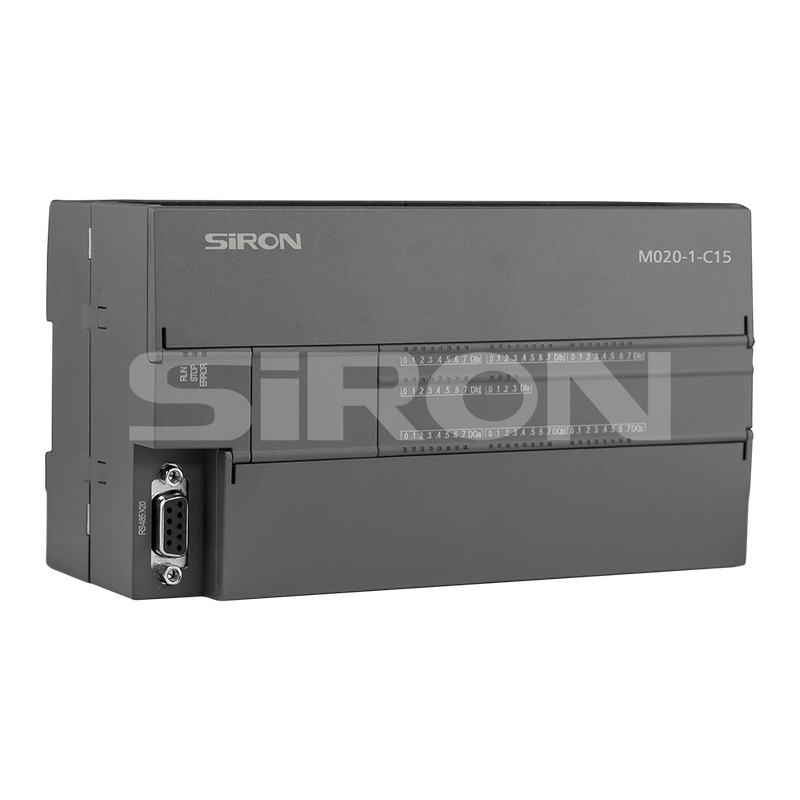

SiRON M020-1-C PLC Programmable Logic Controller, 24V DC 220V AC, Digital/Analog Inputs/Outputs

SiRON M020-1-C PLC Programmable Logic Controller, 24V DC 220V AC, Digital/Analog Inputs/Outputs

Name: SiRON M020-1-C PLC Programmable Logic Controller, 24V DC 220V AC, Digital/Analog Inputs/Outputs
Brand: SiRON
Rating: 5.0 (18 reviews)

Features

* High performance, high integration, cost-effective small PLC.
* CUP offers a variety of points of 20, 30, 40, and 60;
* High-speed processing capacity, high-speed input single-phase support 6 channels 200KHz, AB phase support
4 channels 100KHz; high-speed pulse output support3 channels 200KHz (transistor).
* Support Ethernet communication, standard 10M/100M adaptive Ethernet port, support TCP, UDP, Modbus TCP
communication,PC communication.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M020-1-C
Brand:
SiRON
Code:
8537101101

Programmable Logic Controller Siemens PLC PLC with Ethernet 24V DC PLC 220V AC PLC

Product Description

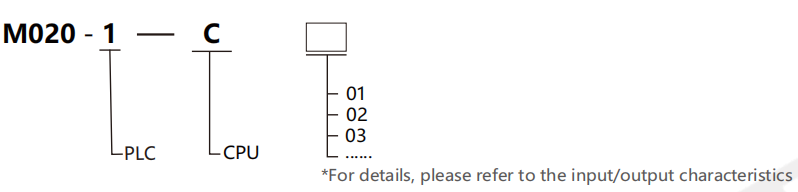

About selection

企业微信截图_17548911388630

code	type	Input/output characteristics
01	relay output	20 pins(12 input/8 output),220V AC power input
02		30 pins(18 input/12 output),220V AC power input
03		40 pins(24 input/16 output),220VAC power input
04		60 pins(36 input/24 output),220VAC power input
05		20 pins(12 input/8 output),220VAC power input,analog 4 input/2 output
11	Transistor output	20 pins(12 input/8 output),24V DC power input,analog 4 input/2 output
12		20 pins(12 input/8 output),24V DC power input
13		30 pins(18 input/12 output),24V DC power input
14		40 pins(24 input/16 output),24V DC power input
15		60 pins(36 input/24 output),24V DC power input

Environmental Conditions

Operating Temperature	-10℃ to 60℃(horizontal installation),-10℃ to 40℃(vertical installation)
TransportAmbient Temperature	-20℃~80℃
Evironmental Relative Humidity	5-95%,no condensation(RH grade 2,in compliance with IEC60068-2)
Protective Grade	IP20
Mechanical Leve(Vibration)	IEC6131-2
Ground	Type D grounding(grounding resistance:below 100Ω)is not allowed to be grounded together with the strong current system
Use Environmental	Locations where corrosive,flammable gases and conductive dust(dust)are not severe
Use High	Below 2000M (Cannot be used in an environment pressurized to above atmospheric pressure,otherwise malfunction may occur)

Specification

Model		M020-1-C01	M020-1-C02	M020-1-C03	M020-1-C04	M020-1-C05
Current supply(24V DC		Maximum 300mA
Digital input current consumption		The input at each point used is 4mA
CPU characteristics	Storage capacity	24KB program memory/ 8KB data storage/ 10KB retention memory	24KBprogram memory/ 12KB data storage/ max 10KB retention memory	24KB program memory/ 16KB data storage/ 10KB retention memory	30KB program memory/ 20KB data storage/ max 10KB retention memory	24KB program memory/ 8KB data storage/ 10KB retention memory
	Plate number I/O	12 input/8 output	18 input/12 output	24 input/16 output	36 input/24 output	12 input/8 output
	Extension quantity	Module expansion:Up to 6 expansion modules;Signal board expansion:Up to 1 signal board
	High Pulse	一
Correspondence	Port Number	Ethemet:1 Serial port:1(RS485)Expansion port:Optional 485 signal board
	Programming Equipment	Serial port:1 connection,Ethernet port:1 connection
	CPU(CPUT/GET)	Ethernet:Total number of client and server connections is 6
Power	nput Voltage Range	Input voltage:85-264V AC,output voltage:20.4-28.8V DC,rated output current(maximum):300mA
Digital Input	nput Point Number	12	18	24	36	12
	Type	NPN/PNP
	Voltage	Rated voltage:Common Dl point:24V Dc at 4mA,rated value;High-speed DI point:24V DC at 6.5mA,rated value. Permissible continuous voltage:up to 30V DC;
	signal(minmum)	Logic 1 signal (minimum)10.0-10.3,10.6-1.1:15V Dc at 3.7mA;Others:15VDC at 2.5mA;Logic 0 signal (maximum)5V DC at 1mA
	Each char Filter Time	nel can be selected independently(click I 02、0.4、0.8、1.6、3.2、6.4和128μs 0.2、0.4、0.8、1.6、3.2、6.4和12.8ms	D.0 to 11.3 a.ch channel can be independently selected(points 10.0 to l1.5)as 02,0.4,0.8,1.6,3.2,6.4 and 12.8μs,0. , 40 ,1 .8 , .63.2,6.4 and 12.8ms,each channel can be selected independently (for 11.6 and larger points):0,6			ach channel can be selected independently (click I0.0 to I1.3). 02、0.4、0.8.1.6、3.2、6.4 and 12.8μs 0.2、0.4、0.8、1.6、3.2、6.4 and 12.

Digital output	Output Point	8	12	16	24	8
	Type	Relay,dry contact
	Voltage Range	5-30V DC or 5-250V AC,rated current(maximum)at each point:2.0A
Simulation buantity	nput/Output	一				4 input/2 output
	Tort simulation address	一				AIWO-AIW6 AQWO-AQW2

Model		M020-1-C11	M020-1-C12	M020-1-C13	M020-1-C14	M020-1-C15
Current supply (24V DC)		max 300mA
Digital input curent consumption		The input at each point used is 4mA
CPU characteristics	Storage Capacity	24KB program memory/ 8KB data storage/ max 10KB retention memory	24KB program memory/ 8KB data storage/ 10KB retention memory	24KB program memory/ 12KB data storage/ max10KB retention memory	24KB program memory/ 16KB data storage/ 10KB retention memory	30KB program memory/ 20KB data storage/ max 10KB retention memory
	Plate number I/O	12 input/8 output		18 input/12 output	24 input/16 output	36 input/24 output
	Extension quantity	Module expansion:Up to 6 expansion modules;Signal board expansion:Up to 1 signal board
	High speed counter	A total of 6;Single-phase:6 channels 200KHz;AB phase4 channels at 100KHz
	High pulse	2 channels 200KHz		3 channels 200KHz
Correspondence	Port Number	Ethernet:1 Serial port:1(RS485)Expansion port:Optional 485 signal board
	Programming equipment	Serial port:1 connection,Ethernet port:1 connection
	CPU(CPUT/GET)	Ethernet:Total number of client and server connections is 6
Power	Input/Output voltage range	20.4-28.8V DC,rated output current(maximum):300mA
Digitallnput	Input Point Number	12		18	24	36
	Type	NPN/PNP
	Fixed Voltage	Common Dl point:24V DC at 4mA,rated value; High-speed Dl point:24V DC at 6.5mA,rated value;
	Allow Continuous Voltage	Max 30VDC
	Signal	Logic 1(minimum)10.0-10.3:4V DC at 12.75mA,I0.6-1.1:15V DC at 3.7mA,others:15V Dc at 2.5mA;Logic 0(maximum):10.0-10.3:1V DC at 1mA
	Fiter Time	Each channel can be independently selected(points 10.0 to 11.99 ·8B0.290.490.898.6323646A和12.8ms		Each channel can be independently selected(points 10.0 to 11.5)as 0.2,0.4,0.8,1.6,3.2, 6.4 and 12.8μs,0.2,0.4,0.8,1.63.2,6.4 and 12.8ms,each channel can be selected indepe
DigialOutput	Output Point	8		ndently (fori16 and larger p	oints):0,6.4,12.8ms	24
	Type	Solid-state -transistor(PNP)
	Voltage Range	20.4-28.8V DCrated current(maximum)0.5A at each point
Analog	Input/Output	4 input/2 output	一
	Tort simulation address	AIWO-AIW6 AQWO-AQW2	一
