SiRON K041-3~K041-6 Series M5 Inductive Proximity Switch Short Type

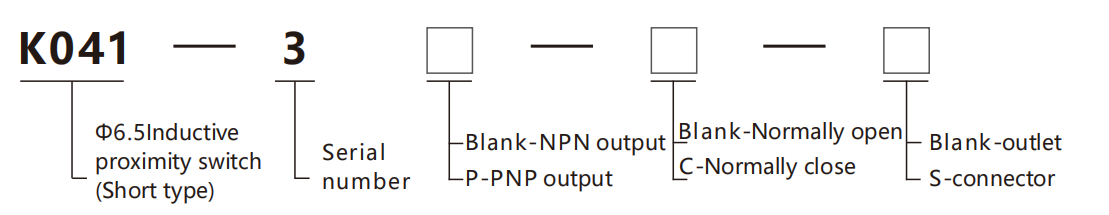

About selection

 Selection example:  K041-3 indicates the K041 series, serial number 3, with NPN output,Normally open, outlet;

                                       K041-3-S  indicates the K041 series, serial number 3, with NPN output,Normally open,connector.

Specifications

Name		Φ6.5 inductive proximity switch (short type)
Model	NPN N.O	K041-3	K041-3-S	K041-4	K041-4-S	K041-5	K041-5-S	K041-6	K041-6-S
	NPN N.C	K041-3C	K041-3C-S	K041-4C	K041-4C-S	K041-5C	K041-5C-S	K041-6C	K041-6C-S
	PNP N.O	K041-3P	K041-3P-S	K041-4P	K041-4P-S	K041-5P	K041-5P-S	K041-6P	K041-6P-S
	PNP N.C	K041-3P-C	K041-3P-C-S	K041-4P-C	K041-4P-C-S	K041-5P-C	K041-5P-C-S	K041-6P-C	K041-6P-C-S

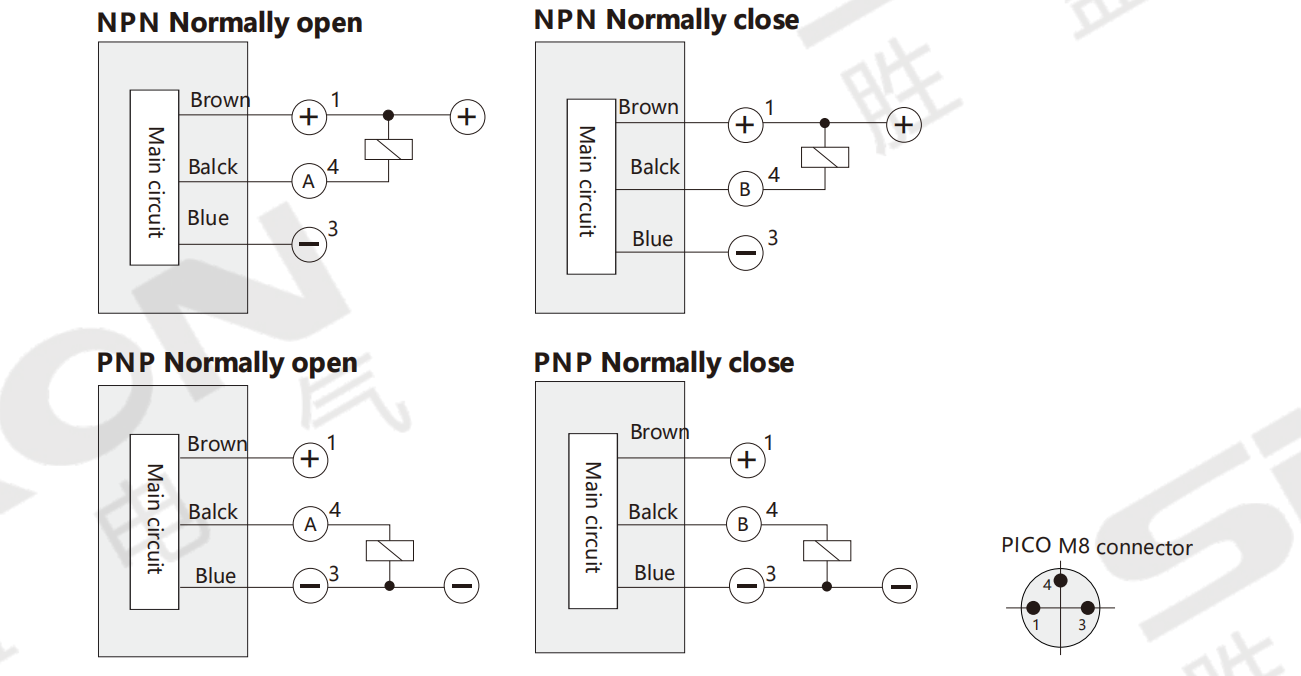

Wiring Form		Outlet	Connector	Outlet	Connector	Outlet	Connector	Outlet	Connector

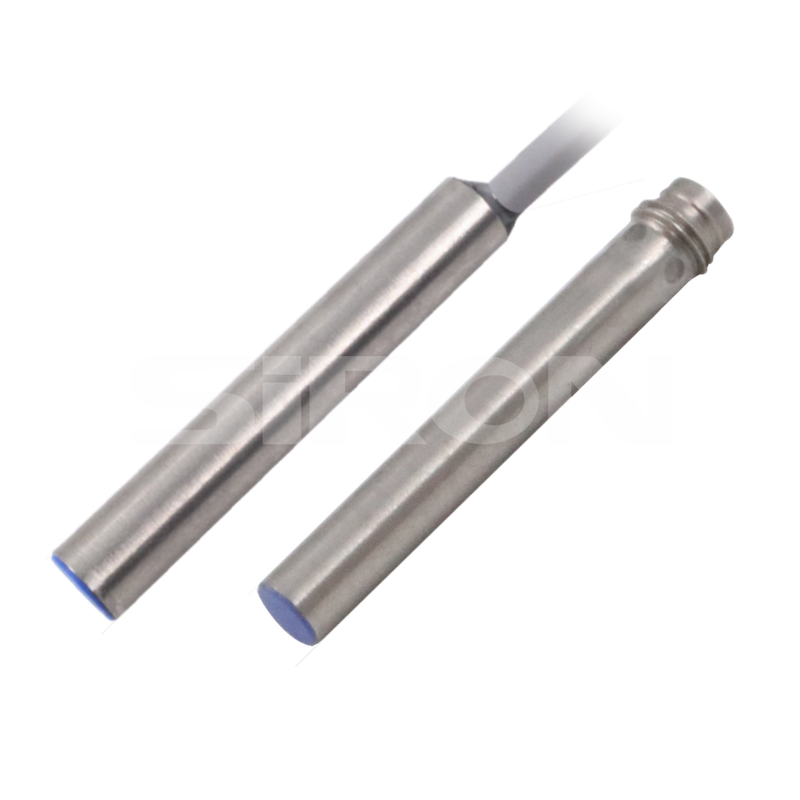

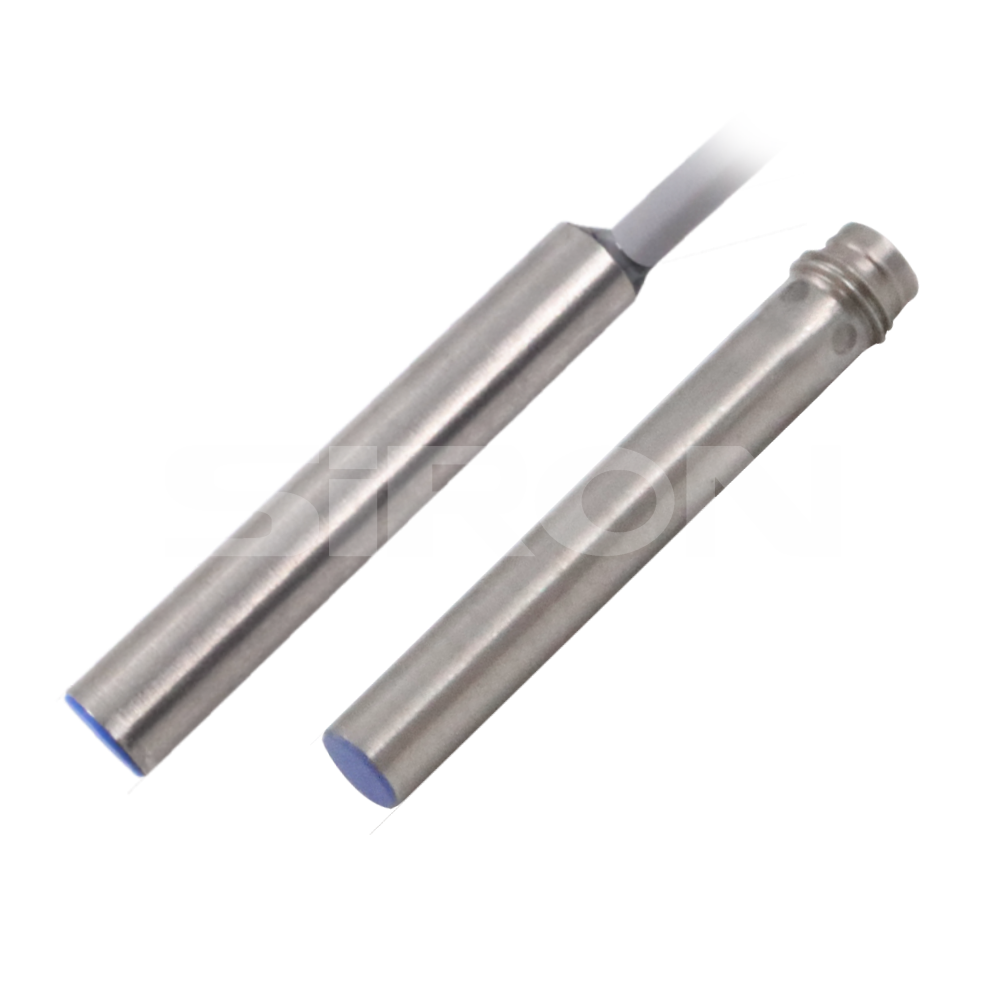

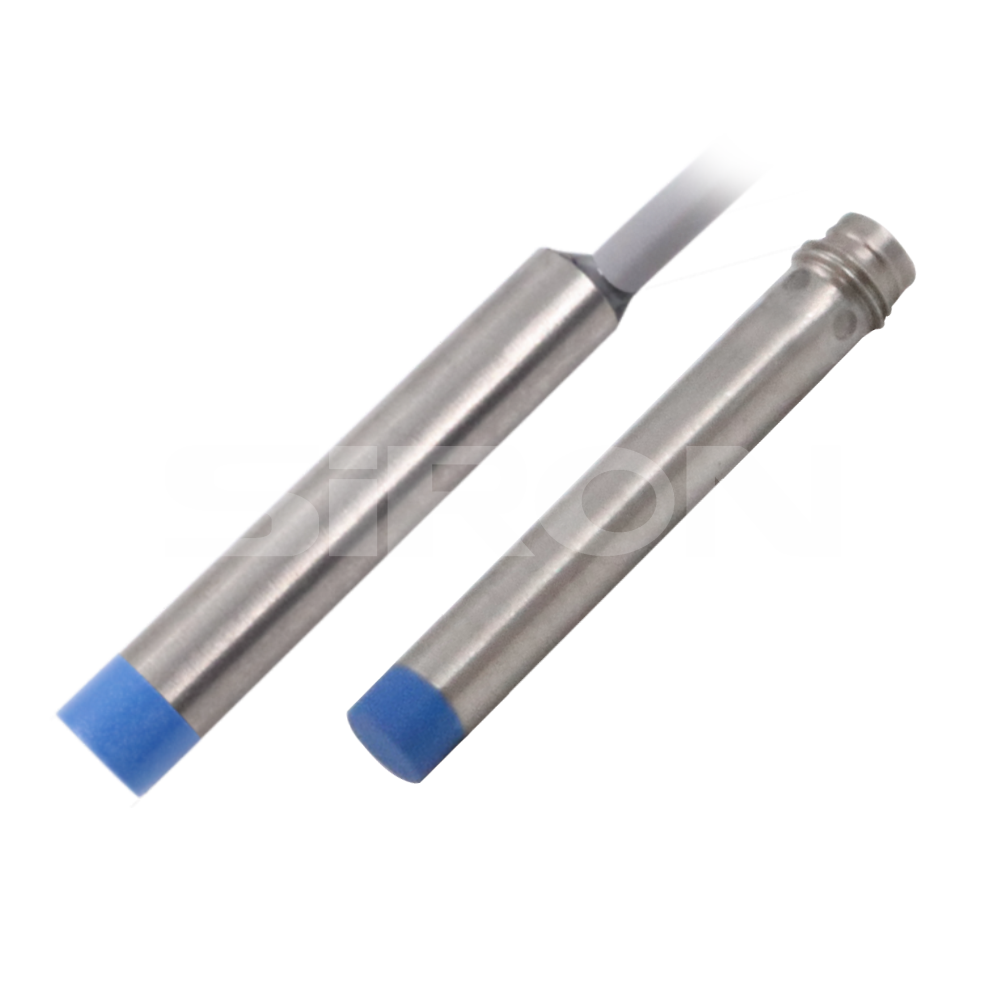

Appearance
Detection distance		2mm		3mm		4mm		6mm
Installation		Flush installation		Quasi-flush installation		Non-flush installation
Diameter		Φ6.5mm
Operating Voltage		10～30V DC
On-oflevel		2000Hz		1000Hz		1000Hz		500Hz
Pressuredrop		≤2.0V
Load current		100mA
No-loadcurrent		≤10mA(24V)
Hysteresis		<15%(Sr)
Repeatability		<1.0%(Sr)
Ambienttemperature		-25～70℃
Enclosurerating		IP67
Material		Sensing surface: POM; Shell: Stainless steel
Cable		Outgoing type: PVC cable; 3×0.18mm² Plug-in type: M8 connector
Cable length		2M

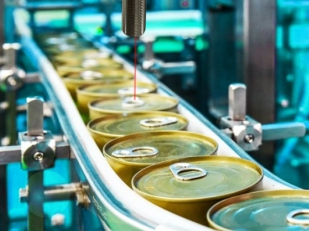

Example
