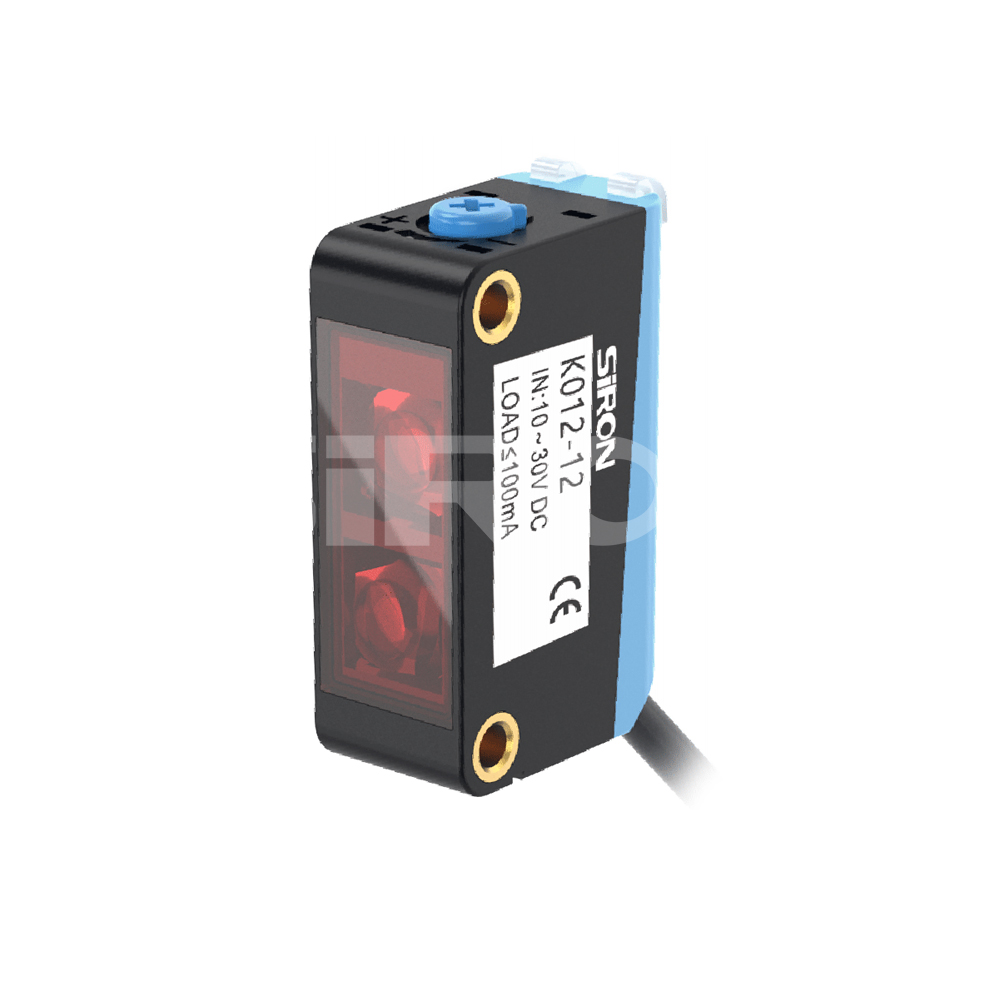

SiRON K012-12 Series Photoelectric Sensor Small Light Spot Background Suppression

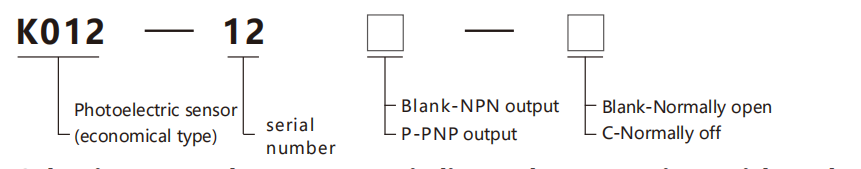

About selection

  Selection example：K012-12 indicates the K012series, serial number 12, with NPN output, normally open;

                                                K012-12P-C indicates K012 series, serial number 12, with PNP output, normally off.

Note: National standard installation hole positions.

Specifications

Name	Photoelectric sensor(economical type)
Model	K012-12	K012-12C	K012-12P	K012-12P-C
Mode of output	NPN    N.O	NPN   N.C	PNP   N.O	PNPN.C
Type	Background suppression type(Small light spot)
Appearance
Detection distance	2~50mm
Blind distance	<1cm
Spot diameter	Approximately 2mm(when the distance is 50mm)
Switching frequency	1000Hz
Operating voltage	10～30V    DC
Type oflight	Red light 6 5 0 n m
Reaction time	<1ms
Load current	100mA
Power-on delay	<300ms
Sensitive regulation	Multi-turn potentiometer
Light interference resistance	<5000lux
Protection class	IP65
Ambient temperature	-25～55℃
Ambient humidity	35～85%
Shell material	ABS
Lens material	PC
LEDindication	Output: Yellow; Power supply: Green
Cable length	2M
interface	P V C cable 3 × 0 . 1 8 m m ⊃2;

Example

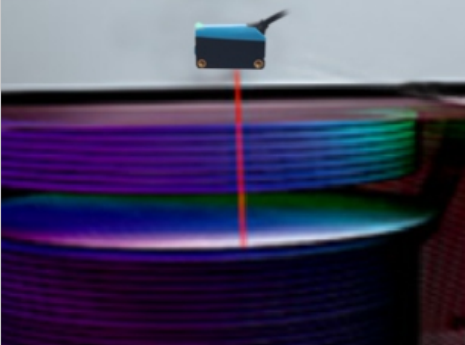

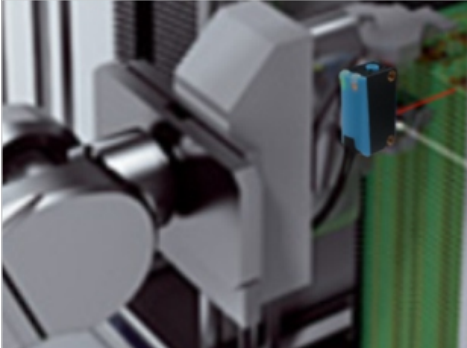

   Wafer inspection                                                                                          Applications on robotic arms

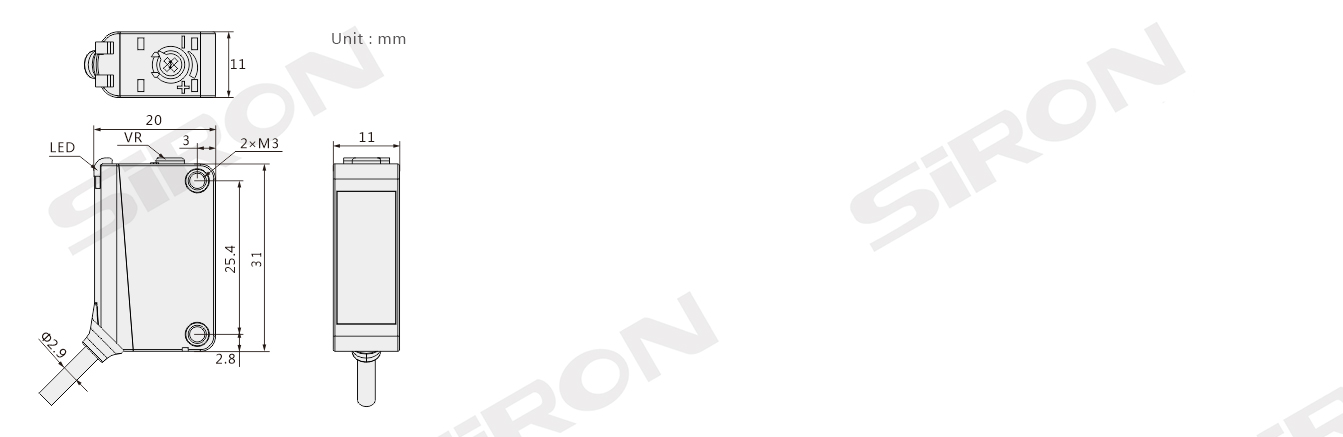

Dimension

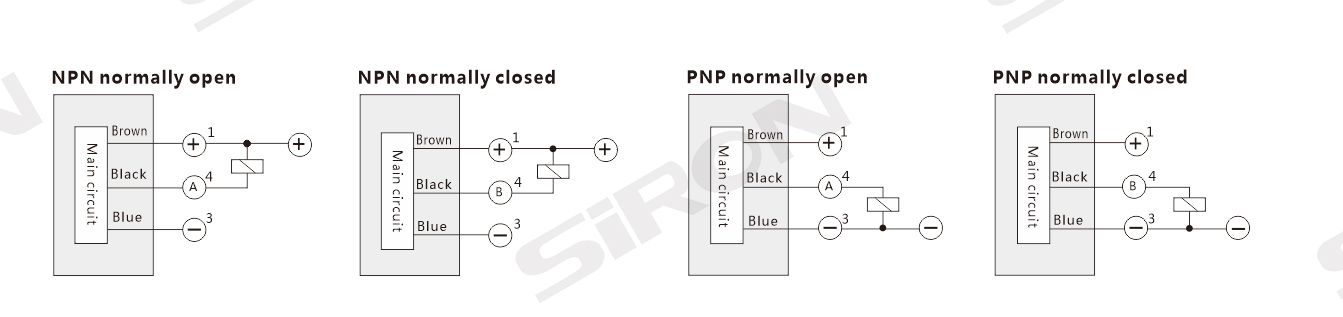

Wiring diagram
