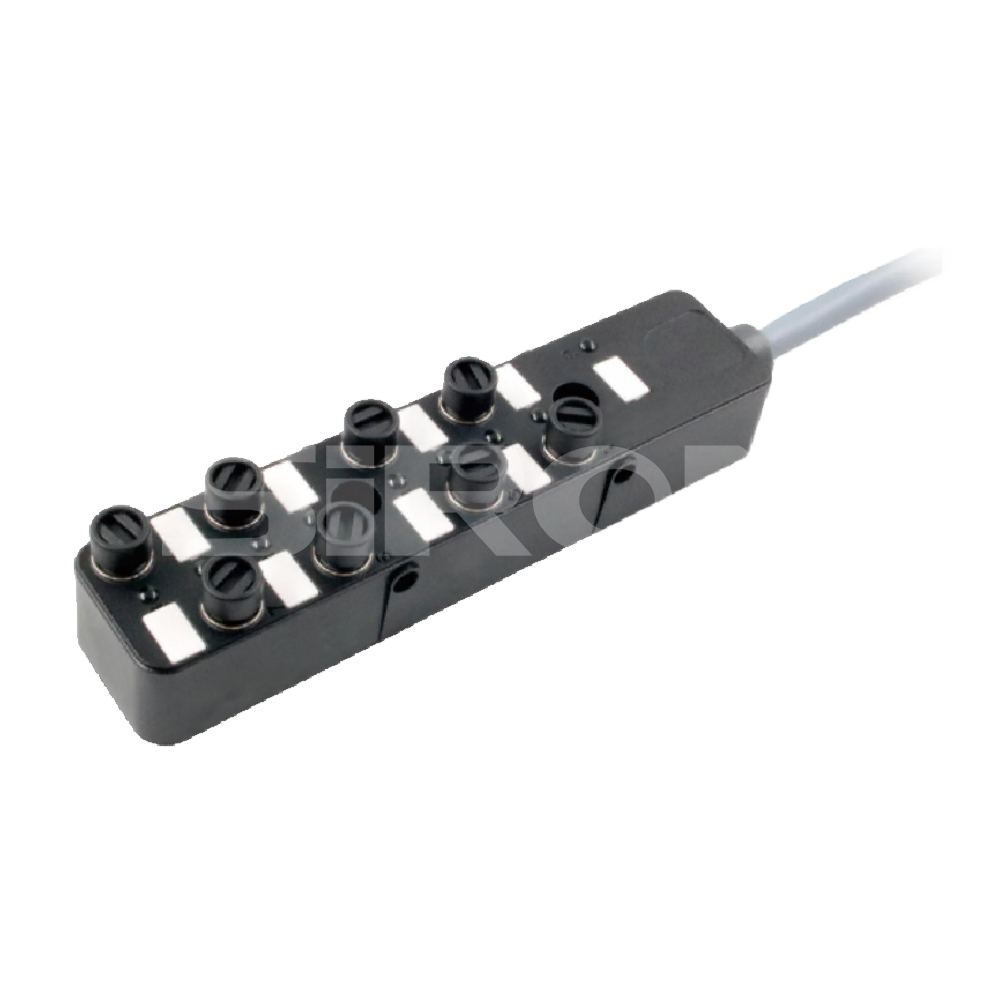

H422-M8
SiRON
8538900000
Order
| Model | Port |
| H422 | M8 |
Specifications
| Model | H422-M8 | H422-M8-P |
| Output function | Single-signal | |
| Outpu type | NPN | PNP |
| Connection specifications | M 8 hole end 3 cores | |
| Connection method | Thread M 8 × 1 | |
| Supply voltage | 10～30V DC(Standard24VDC) | |
| Power Indicator | Green LED | |
| Number of I/O channels | 8 | |
| Output point | 1 | |
| Output indicator | Yellow LED | |
| Supply current | Max.2A | |
| Current parameter | Max.8A | |
| Shell material | Plastic (flame-retardant material）PC+ABS | |
| Protection level | Ip67 | |
| Temperature range | -40～+80℃ | |
| Impedance | Excellent resistance to chemicals and oils | |
| Cable material | Standard P U R | |
| Standard wiring length | 3m | |
3-pin connector
| Model | H422-A3 |
| Stitch count | 3 |
| Wire diameter | 3.5～5mm |
| Rated current/voltage | 4A/60V |
| Temperature range | -25～85℃ |
| Protection grade | IP67 |
1. It is used for sensors, V-O connection, marked with M8 screw connection, pin end connection port, 3 and 4 wire cores can be selected with IP67 protection grade.
2. Screw screw contact point connection, quick and flexible.
3. Welding connection cable single-core connection surface Max 0.25mm.The cross-sectional area of the single-core connection of the screw connection cable is 2 Max 0.5 m.
4. During the installation process, the length of the outer sheath of the cable is 1.2 meters, and the length of the guide wire is 4 meters.
