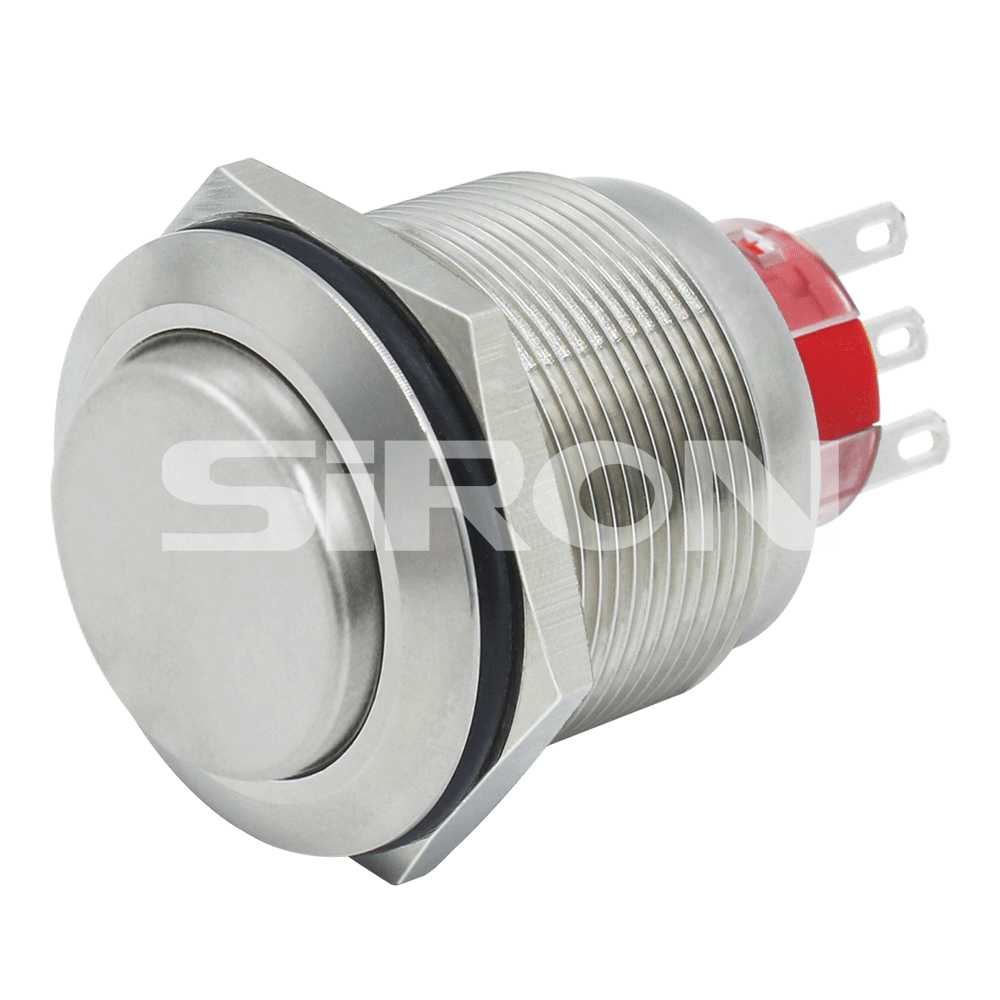

H066/H067
SiRON
8538900000
Order

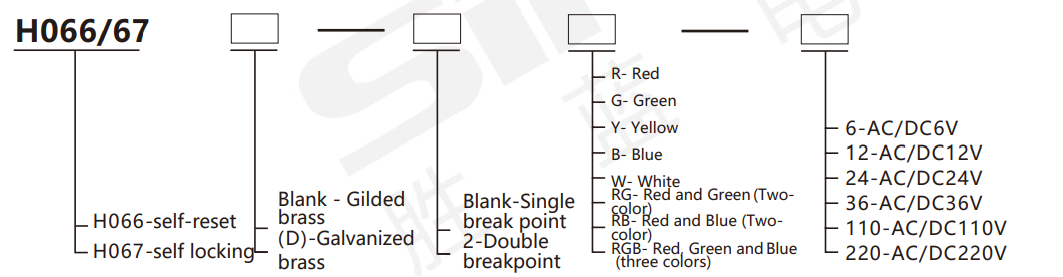

Note: H066-R-24 indicates self-reversing soldering terminal with gold-plated brass material, single-break and red light on, 24V button; H067(D)-2R-24 indicates self-locking soldering terminal with brass zinc-coated material, double-break points, red light on, 24V button.
Pin definition
| Symbol | Diagrammatic drawing | Equivalent circuit of lamp beads | |
 |
| ||
Note: A single-pole quick-acting transfer switch with three terminals | |||
| Note: Utilize the universal AC/DC LED light beads. The terminals have no positive or negative polarity distinction. The light beads are equipped with protective resistors inside and do not require external connection. Dual-color and three-color lighting are of common negative polarity. Other colors and common positive polarity can be customized according to customer requirements. For customization, please contact the sales personnel. | |||
Technical Features
| Foot material | Gold-plated copper | H066-R/G/Y/B/W-24 | H067-R/G/Y/B/W-24 |
| Yellow copper plated with zinc | H066(D)-R/G/Y/B/W-24 | H067(D)-R/G/Y/B/W-24 | |
| Operation type | self-reset | self locking | |
| Switch rating | AC;5A/250V | ||
| The environment temperature | -40℃~+80℃ | ||
| Contact resistance | ≤50MΩ | ||
| Insulation resistance | ≥1000MΩ | ||
| Dielectric strength | AC1780V | ||
| Mechanical life | ≥1000,000time | ||
| Electrical life | ≥50,000time | ||
| Switch structure | Single-breakpoint quick-acting contact | ||
| Switch combination | 1NO 1NC | ||
| Operating pressure | 3~5N | ||
| Operating limits | 3MM | ||
| Nut torque | 5~14N | ||
| LED lights | Lamp bead types | Bidirectional LED beads (AC/DC compatible) | |
| The rated voltage | 2 4 V / 2 2 0 V | ||
| Rated current | about 1 5 m A | ||
| life | 50000Hours (reference value) | ||
