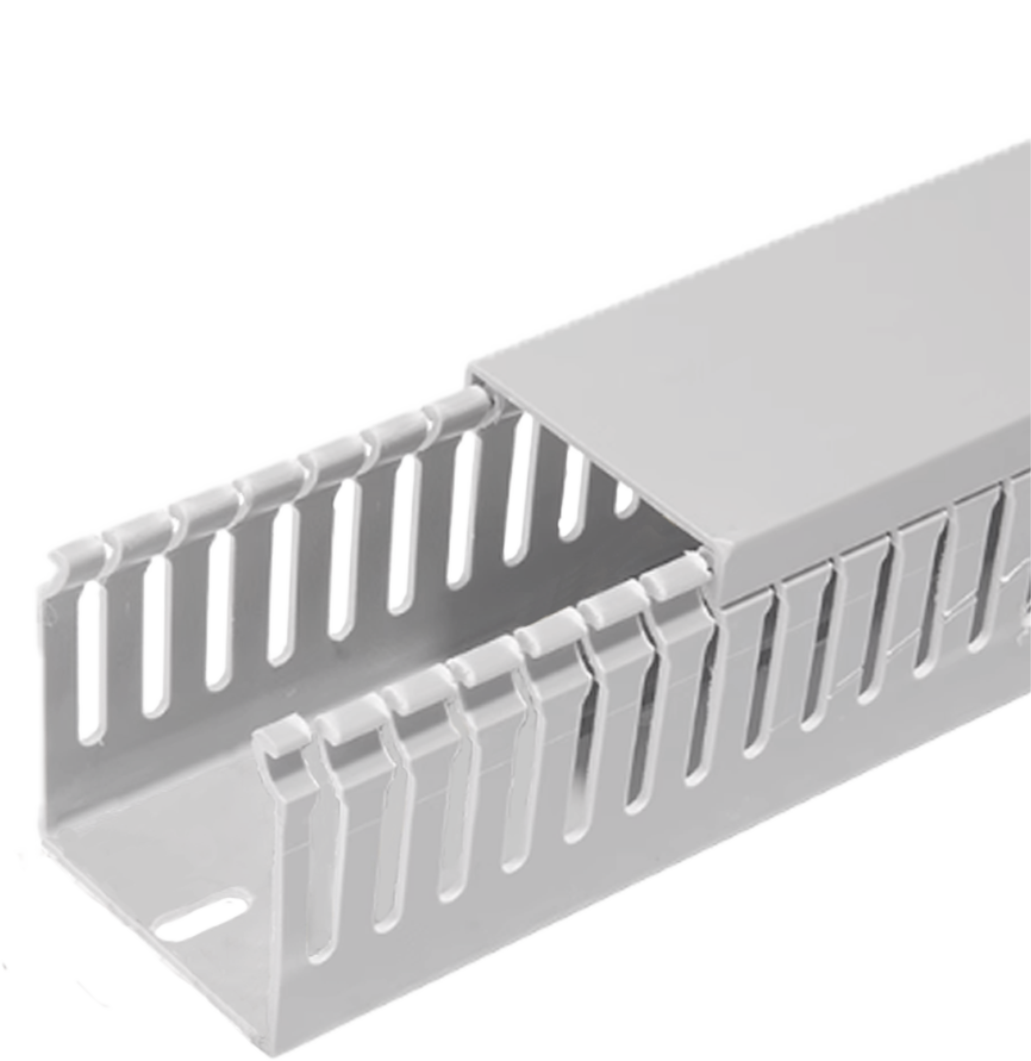

SiRON G012 Series Wide Tooth Plastic Trunking

Features
  • The thick bottom of the upgraded board slot level cover is more firm, and the reverse button designmakes the installation and disassembly simple and efficient.
  • Applications can be used to protect wires and cables from mechanical damage such as cuts, cuts, etcIt has the advantages of good flexibility, good bendability, acid and wear resistance, etc.
  • Plays therole of protecting wire harnesses, wires and cables, and is more suitable for some Corners or bentwires provide protection.

Availability:
Quantity:
Inquire Add to Basket

PDF Export
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • G012

  • SiRON

  • 8538900000

G012 Series Plastic Trunking Flame-retardant rigid PVC trunking Wide Tooth Trunking
Product Description

Specifications

Material Flame-retardant hard P V C
Ambient temperature Static temperature -40℃, continuous high temperature up to 70℃
Crop tool Fix the bottom slot, install the required wires into the slot and cover it
Flammability rating UL94-V0


Model
High xwid


Tooth width
Tooth pitch		 Thickness Article/case Model Highxwidth Tooth width Tooth pitch
  Thickness
G012-2015 20×15 6 4 1 100 G012-5055 50*55 8 6 1.55 50
G012-2020 20×20 1 100 G012-5060 50*60 1.55 40
G012-2025 20×25 1 50 G012-5080 50*80 1.7 30
G012-2525 25×25 1 50 G012-50100 50*100 1.7 30
G012-3015 30×15 1 50 G012-6025 60*25 1.5 50
G012-3020 30×20 1.1 50 G012-6035 60*35 1.5 50
G012-3025 30×25 1.2 50 G012-6040 60*40 1.6 50
G012-3030 30×30 1.2 50 G012-6045 60*45 1.5 50
G012-3035 30×35 1.2 50 G012-6050 60*50 1.5 40
G012-3040 30×40 1.3 50 G012-6060 60*60 1.6 30
G012-3525 35×25 8 6 1.3 50 G012-6525 65*25 1.8 50
G012-3530 35×30 1.3 50 G012-6533 65*33 1.5 50
G012-3535 35×35 1.3 50 G012-6545 65*45 1.6 40
G012-3540 35×40 1.3 50 G012-6565 65*65 10 8 1.5 30
G012-4025 40×25 1.35 50 G012-8025 80*25 1.5 30
G012-4030 40×30 1.35 50 G012-8030 80*30 1.6 30
G012-4035 40×35 1.35 50 G012-8035 80*35 1.6 30
G012-4040 40×40 1.45 50 G012-8040 80*40 1.7 30
G012-4060 40×60 1.5 50 G012-8045 80*45 1.8 30
G012-4525 45×25 1.35 50 G012-8050 80*50 1.8 30
G012-4533 45×33 1.35 50 G012-8060 80*60 1.8 30
G012-4545 45×45 1.35 50 G012-8080 80*80 1.8 18
G012-5025 50×25 1.4 50 G012-80100 80*100 1.8 18
G012-5030 50×30 1.5 50 G012-10040 100*40 12 10 1.65 30
G012-5035 50×35 1.5 50 G012-10050 100*50 1.7 30
G012-5040 50×40 1.5 50 G012-10060 100*60 1.75 30
G012-5045 50*45 1.5 50 G012-10080 100*80 1.9 18
G012-5050 50*50 1.5 50 G012-100100 100*100 1.92 18
