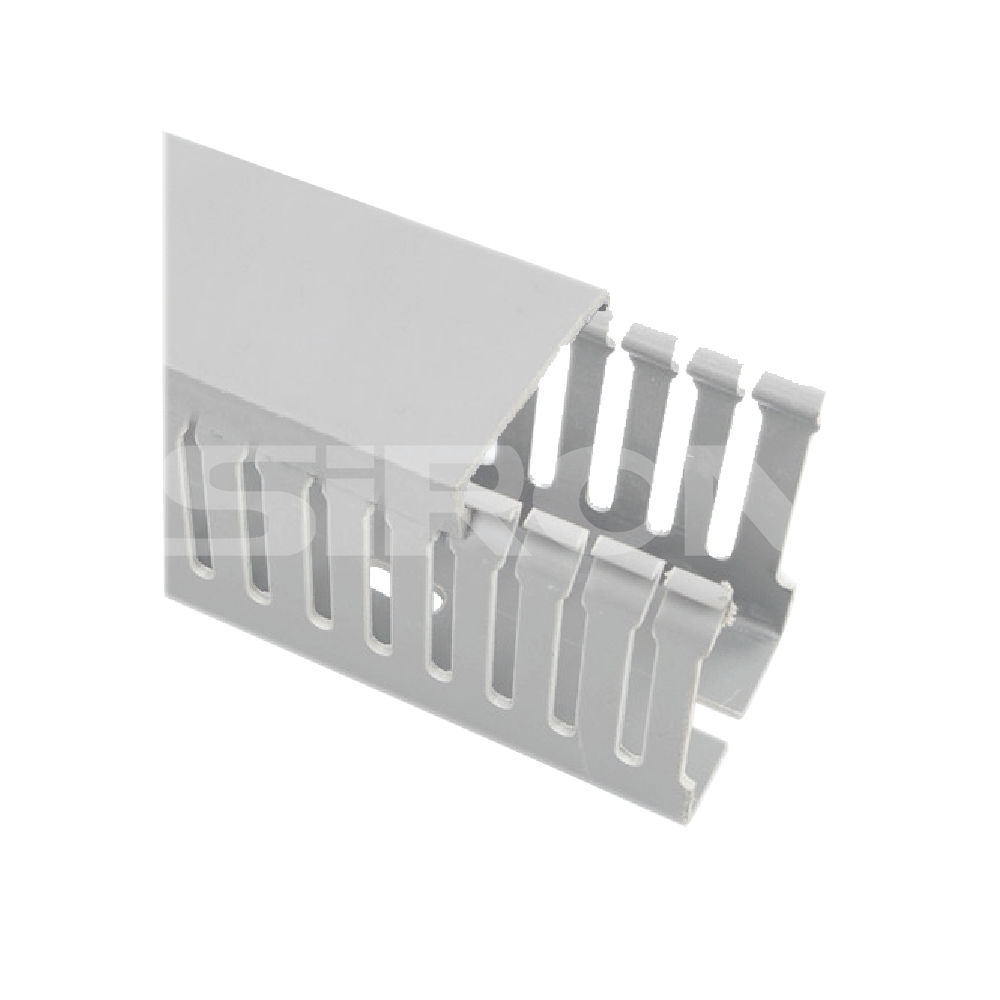

SiRON G011 Series Fine-toothed Plastic Trunking

Features
  • The thick bottom of the upgraded board slot level cover is more firm, and the reverse button designmakes the installation and disassembly simple and efficient.
  • Applications can be used to protect wires and cables from mechanical damage such as cuts, cuts, etcIt has the advantages of good flexibility, good bendability, acid and wear resistance, etc.
  • Plays therole of protecting wire harnesses, wires and cables, and is more suitable for some Corners or bentwires provide protection.

Availability:
Quantity:
Inquire Add to Basket

PDF Export
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • G011

  • SiRON

  • 8538900000

G011 Series Plastic Trunking Flame-retardant rigid PVC trunking Fine-toothed Trunking
Product Description

Specifications

Material Flame-retardant hard P V C
Ambient temperature Static temperature -40℃, continuous high temperature up to 70℃
Crop tool Fix the bottom slot, install the required wires into the slot and cover it
Flammability rating UL94-V0


Model High xwidt Tooth  widfth Tooth  pitch Thickness Article/case Model High xwidth Tooth  widith Tooth pitch Thickness Article/case
G011-3525 35×25 6 4 1.3 50 G011-6035 60*35 6 4 1.5 50
G011-3530 35×30 1.3 50 G011-6040 60*40 1.6 50
G011-3535 35×35 1.3 50 G011-6045 60*45 1.5 50
G011-3540 35×40 1.3 50 G011-6050 60*50 1.5 40
G011-4025 40×25 1.35 50 G011-6060 60*60 1.6 30
G011-4030 40×30 1.35 50 G011-6525 65*25 1.8 50
G011-4035 40×35 1.35 50 G011-6533 65*33 1.5 50
G011-4040 40×40 1.45 50 G011-6545 65*45 1.6 40
G011-4060 40×60 1.5 50 G011-6565 65*65 1.5 30
G011-4525 45×25 1.35 50 G011-8025 80*25 1.5 30
G011-4533 45×33 1.35 50 G011-8030 80*30 1.6 30
G011-4545 45×45 1.35 50 G011-8035 80*35 1.6 30
G011-5025 50×25 1.4 50 G011-8040 80*40 1.7 30
G011-5030 50×30 1.5 50 G011-8045 80*45 1.8 30
G011-5035 50×35 1.5 50 G011-8050 80*50 1.8 30
G011-5040 50×40 1.5 50 G011-8060 80*60 1.8 30
G011-5045 50*45 1.5 50 G011-8080 80*80 1.8 18
G011-5050 50*50 1.5 50 G011-80100 80*100 1.8 18
G011-5055 50*55 1.55 50 G011-10040 100*40 1.65 30
G011-5060 50*60 1.55 40 G011-10050 100*50 1.7 30
G011-5080 50*80 1.7 30 G011-10060 100*60 1.75 30
G011-50100 50*100 1.7 30 G011-10080 100*80 1.9 18
G011-6025 60*25 1.5 50 G011-100100 100*100 1.92 18

RELATED PRODUCTS

SiRON G030 Series Flame-retardant Polypropylene Bellows
SiRON G030 Series Flame-retardant Polypropylene Bellows
SiRON G018 Series Screw Fixation Keel Trunking
SiRON G018 Series Screw Fixation Keel Trunking

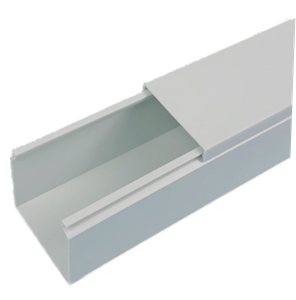

SiRON G014 Series Fully Enclosed Plastic Trunking
