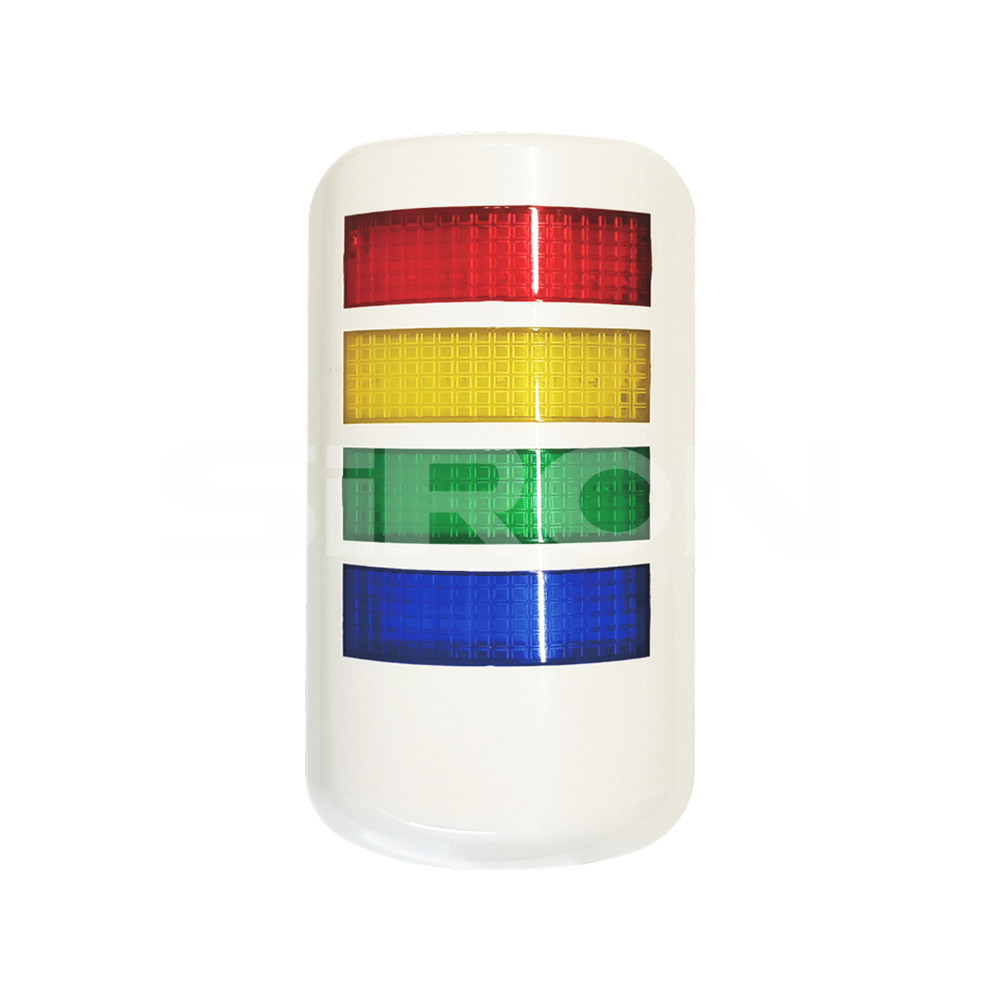

SiRON D183 Series Semi-circular Wall Mounted Warning Light

Name: SiRON D183 Series Semi-circular Wall Mounted Warning Light
Brand: SiRON
Rating: 5.0 (36 reviews)

Features:

*Long service life, ultra-bright LED enhanced lightingLow power consumption improves energy eﬃciency.

*High vibration resistance and unnecessary LED replacement. Make it maintenance-free.

*Wall-mounted to save space. Use a patch board for easy wiring.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

ABOUT SELECTION

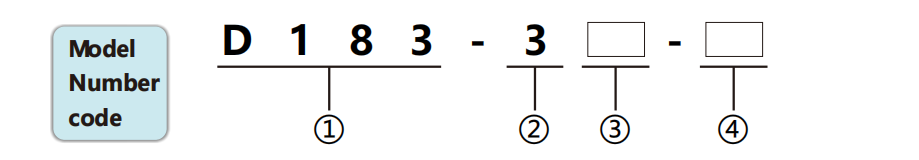

Type analysis
①	Wall-mounted warning light series	D183
②	Color layer	3: red yellow green(RYG) 4: red yellow green blue(RYGB)
③	Working condition	Blank: Constantly On B: Constantly On with Beep S: Blinking / Flashing Q: Blinking/Flashing with Beep
④	Signal polarity	Blank: NPN/PNP Universal

Note: When the working state is flashing/flashing band beeping, the signal polarity is only in PNP mode.

Model examples: D183-3Q-P, D183-3S-P

Specifications

Model	D183-3	D183-4

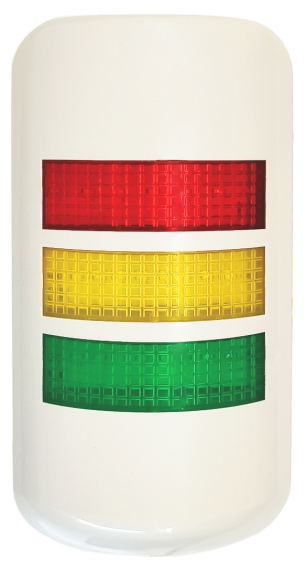

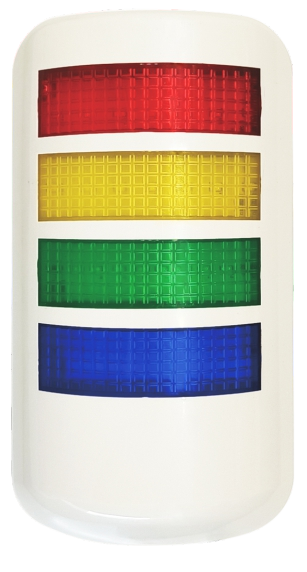

Appearance
Material	Shell: ABS; Lamp cover: PC
Voltage/Electric current	Voltage：24V DC Current: Red light: 0.02A Yellow light: 0.02A Green light: 0.01A Green light: 0.01A
Working condition	Constantly On/ Constantly On with Buzzer / Flashing/ Flashing with Buzzer
Signal polarity	NPN/PNP universal (the polarity of the flashing/flashing with buzzer signal is PNP)
Color layer	three layers	four-layer
Sound intensity/Service life	85dB/50000h
LEDsignal light source	Monochrome LED light-emitting diode
Standard wiring length	Standard configuration: 1 5 0 0 m m
Installation mode	Wall-mounted installation (Can be installed vertically or horizontally according to the requirements of the equipment or application. When installing, to maintain the IP rating of the buzzer, the buzzer should face down.)
Light source color	Red Yellow Green	Red Yellow Green Blue
