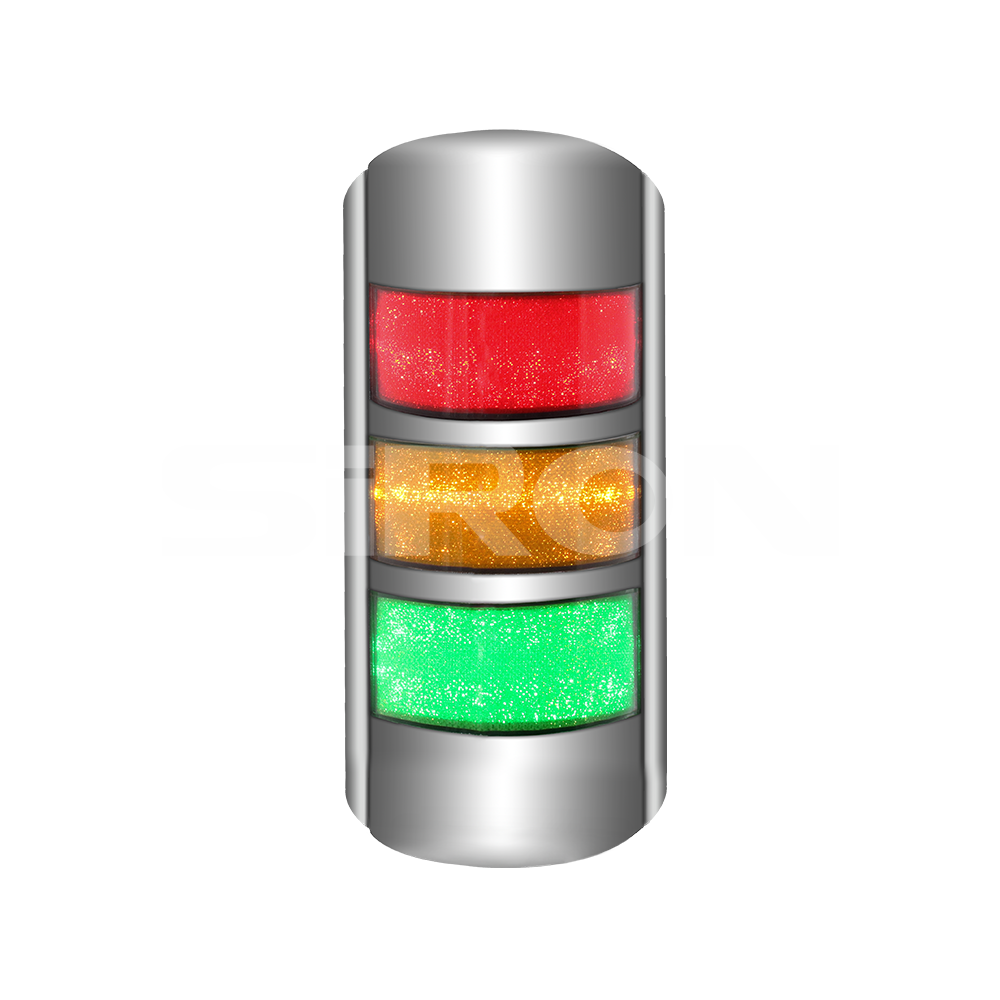

D183-A Series
SiRON
9405410000
ABOUT SELECTION
 | ||

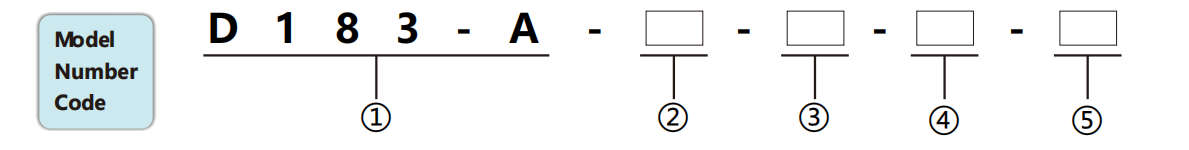

| Type analysis | ||
| ① | Wall-mounted warning light series | D183-A |
| ② | Color layer | Blank : Three ；layers(RYG) |
| ③ | Working condition | Blank: Constantly On B: Constantly On with Beep S: Blinking / Flashing Q: Blinking/Flashing with Beep |
| ④ | Connection mode | Blank: Common positive/negative general C: Contact type |
| ⑤ | Rated voltage | Blank：24VDC 220：220VAC |
Specifications
Model number | D183-A |
Appearance |   |
nput voltage/lnput current | Input voltage: 24V DC/220V AC Input current: 40-120mA |
The material | Lamp shade: PC; Lamp body: ABS |
Color layer | Three layers (red, yellow, green) |
Power/sound intensity/protection level | Power: Single color 1W, total power less than 3W. Sound intensity: Buzzer >95 decibels. Protection grade: IP50 |
Lhigt source/Luminous angle | Light source: 2835 surface mount LED, 0.16W /pcs. Light emission Angle: Single lamp 120° light output, entire lamp 180° visible |
Working condition | Constantly On/ Constantly On with Buzzer / Flashing/ Flashing with Buzzer |
Installation mode/Connection mode | Installation method: Wall-mounted. Wiring method: Direct power input type (common positive/negative universal)/ contact type |
Service life/Standard wiring length | Service life: 50,000 hours. Wiring length: 1,500 mm |
Operating temperature/Storage temperature | Operating temperature: -20 to 45℃ Storage temperature: -40 to 70℃ |
Operating humidity/Storage humidity | Operating humidity: 10% - 90% Storage humidity: 10% - 90% |

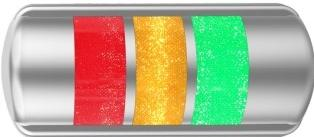

Luminescent lamp source color |
Red Yellow Green |
