SiRON D183-B Series Semi-circular Wall Mounted Warning Light

Name: SiRON D183-B Series Semi-circular Wall Mounted Warning Light
Brand: SiRON
Rating: 5.0 (62 reviews)

Features:

*Semi-circular shell design. It can reduce collisions caused by obstacles;

*Thick PC lampshade. Wear-resistant, shock-resistant and not prone to aging;

*Wall-mounted installation. Save space and facilitate wiring.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

ABOUT SELECTION

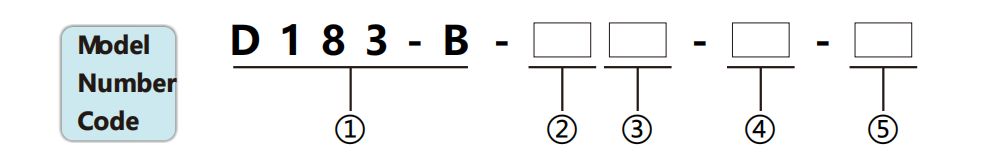

Type analysis
①	Wall-mounted warning light series	D183-B
②	Number of color layers	Blank: Three layers (red, yellow, green)
③	Working condition	B: Constantly On with Beep
④	Rated voltage	Blank: 24V DC

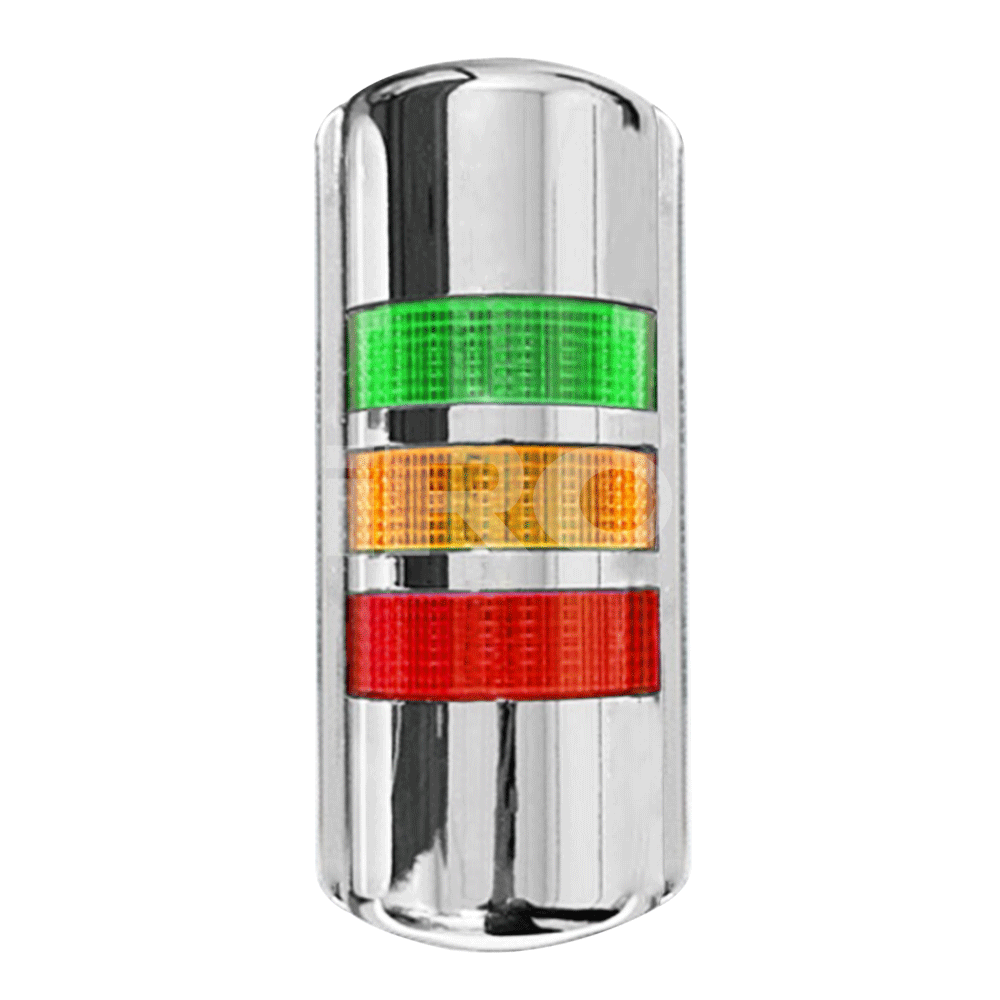

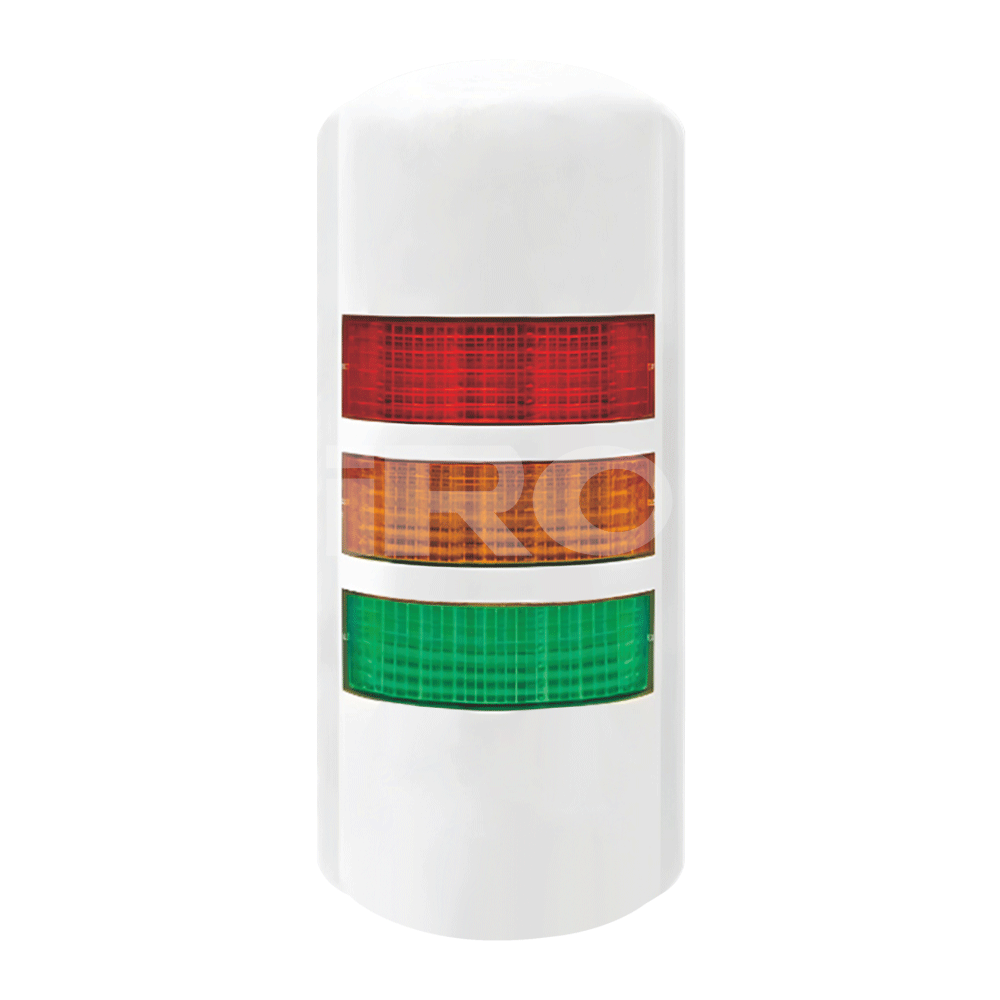

⑤	Shell color	Blank: White S: Silver (electroplating)

Specifications

Model number	D183-B-B	D183-B-B-S
Appearance
Input voltage/Working current	DC 24V/50mA
The matenial	ABS+PC
Luminous angle	180°
Sound intensity	>85dB
Color layer	Three layers (red, yellow, green)
Working condition	Constantly On with Beep
Connection mode	N P N / P N P universal
Protection grade	IP54
Installation mode	Screw Wall Mount Installation
Surface temperature	<60℃
Standard wiring length	500mm
Luminescentlamp source color	Red Yellow Green
