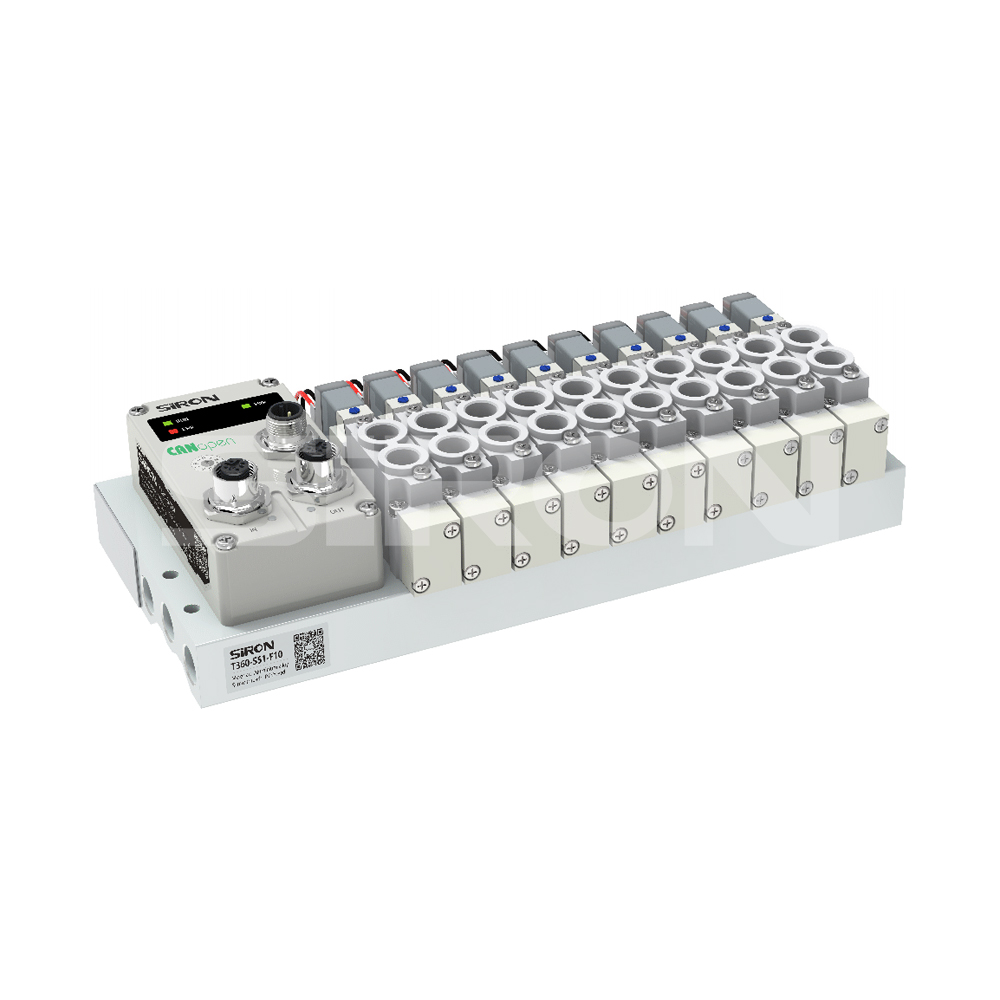

T360-9-S
SiRON
8481901000

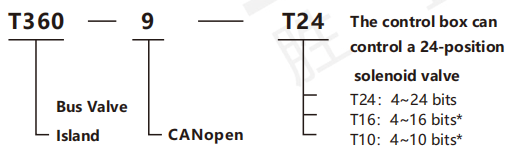

Bus control box selection
Selection example: T360-9-T24 represents the T360 bus valve island, CANopen pr otocol, and the control box can control a 24-bit solenoid valve.
Note: * Unconventional items can be customized.
Bus bus board selection
Selection example: T360-S51-F4 indicates the T360 series bus busbar, which is compatible with the SMC type SY5120 solenoid valve and can be equipped with a 4-position solenoid valve busbar with PT thread.
Note: The standard product does not include solenoid valves. If needed, please purchase them separately.
Specifications
| Control box protocdl | CANopen |
| Transmission distance | ≤100m |
| Transmission rate | 100Mbps |
| Rated operating voltage | 24V DC(21.6V DC～26.4V DC) |
| Static working current | ≤50mA |
| Output current | ≤500mA per coil,3A per module |
| Output delay | ≤100uS |
| Power interface surge protection | Support |
| Power interface reverse protection | Support |
| Channel short-circuit protection | Support |
| Class of protection | IP65 |
| Electrical life | 100,000 times |
| Ambient operating temperature | -20℃~55℃ |
| Ambient working humidity | 10%RH~90%RH,no condensation |
| Use environment | In environments free of corrosive,flammable gases,and conductive dust |

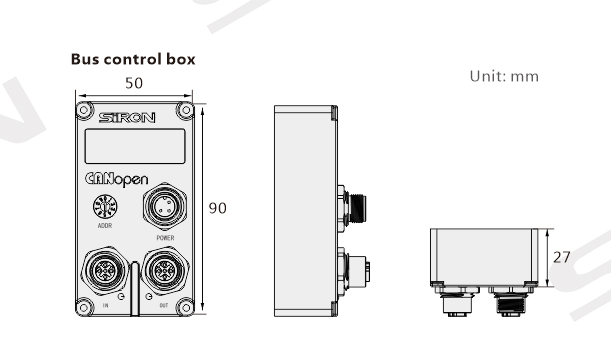

Control Box Outline Drawing

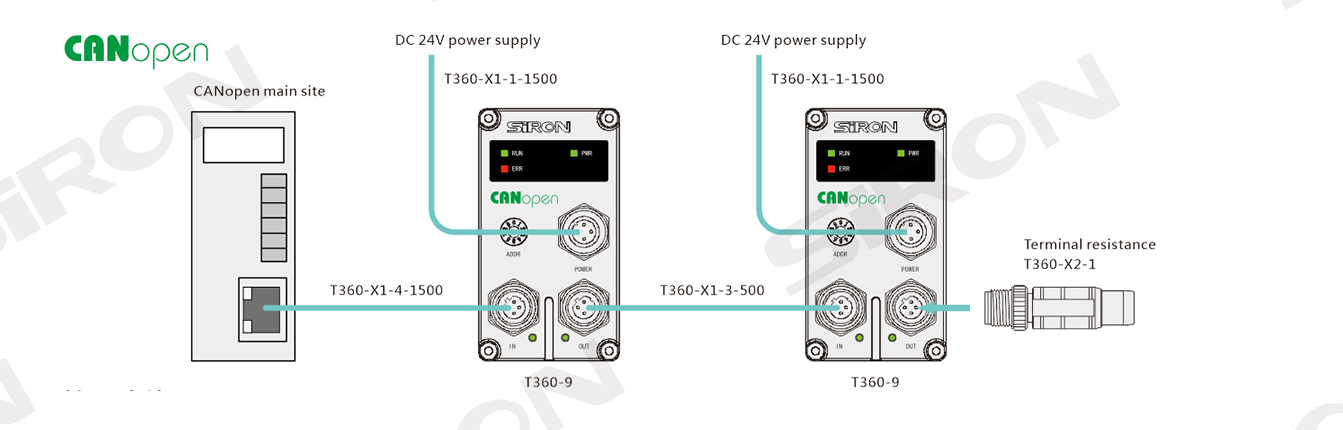

Connection schematic diagram
