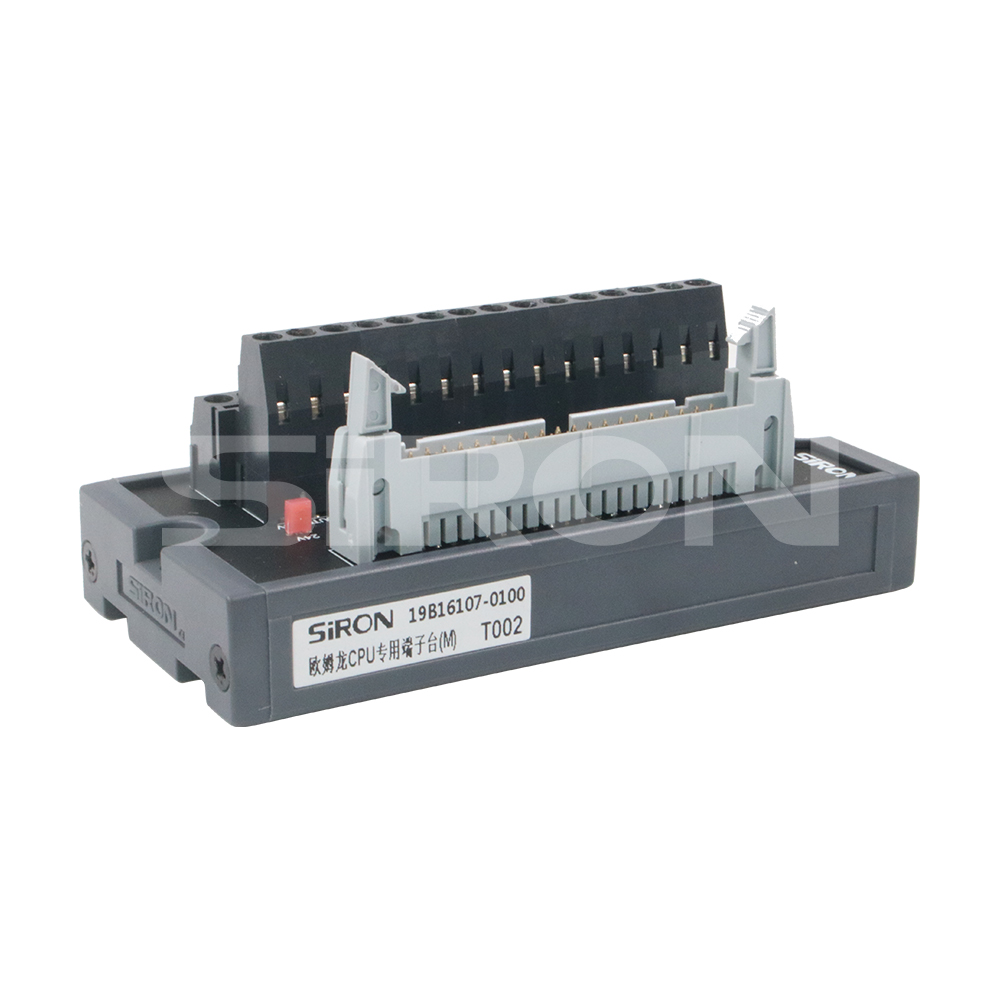

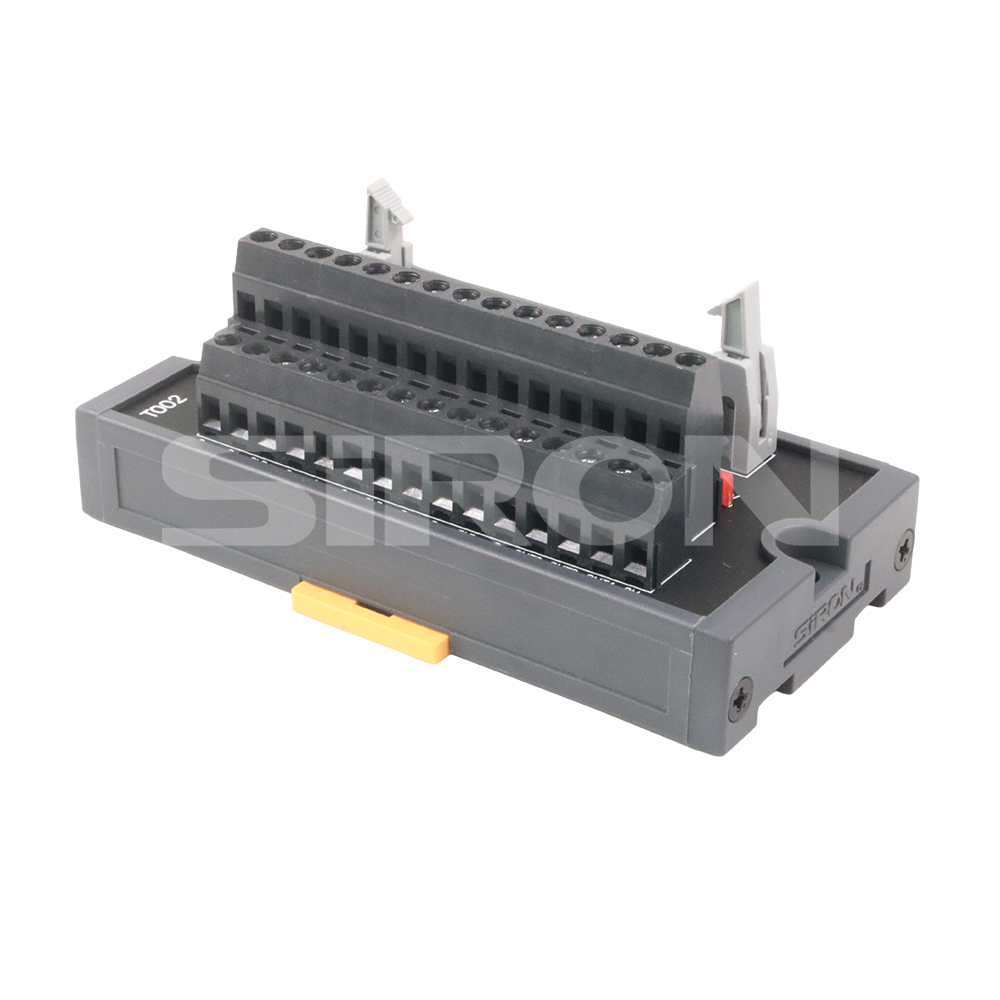

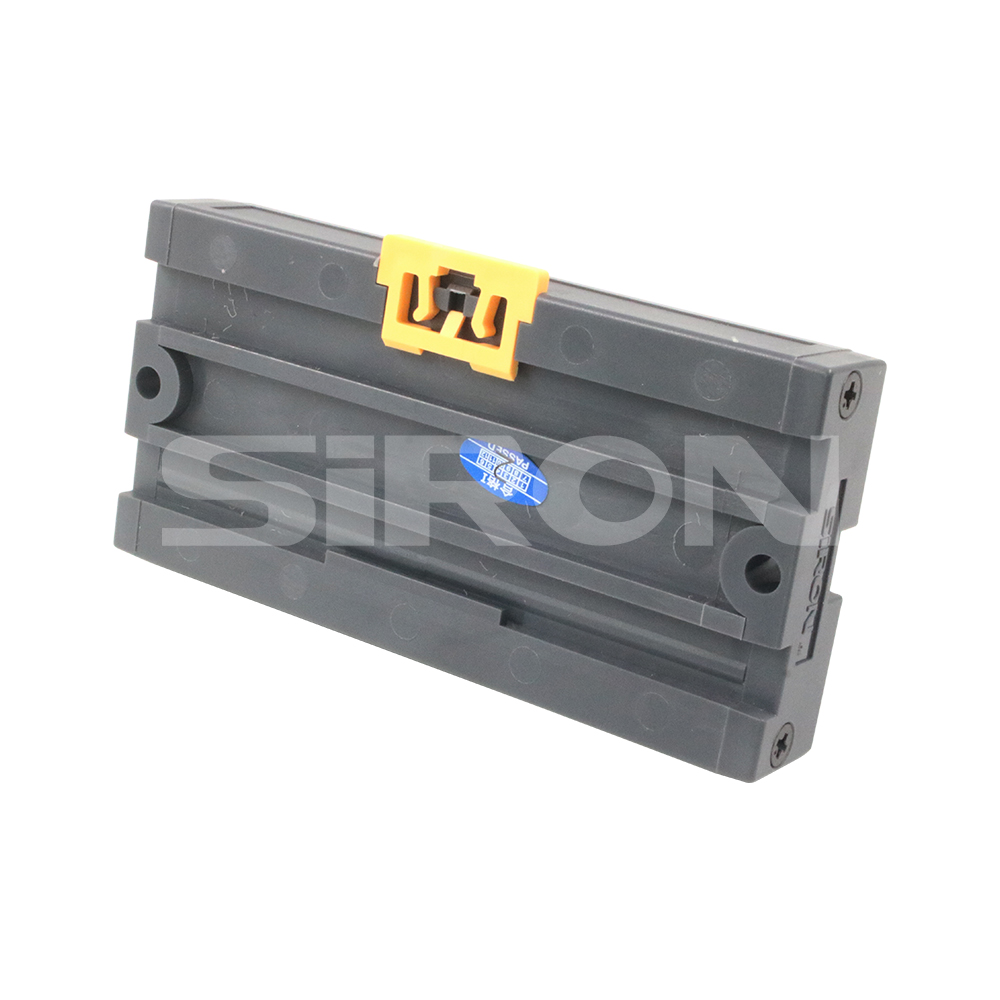

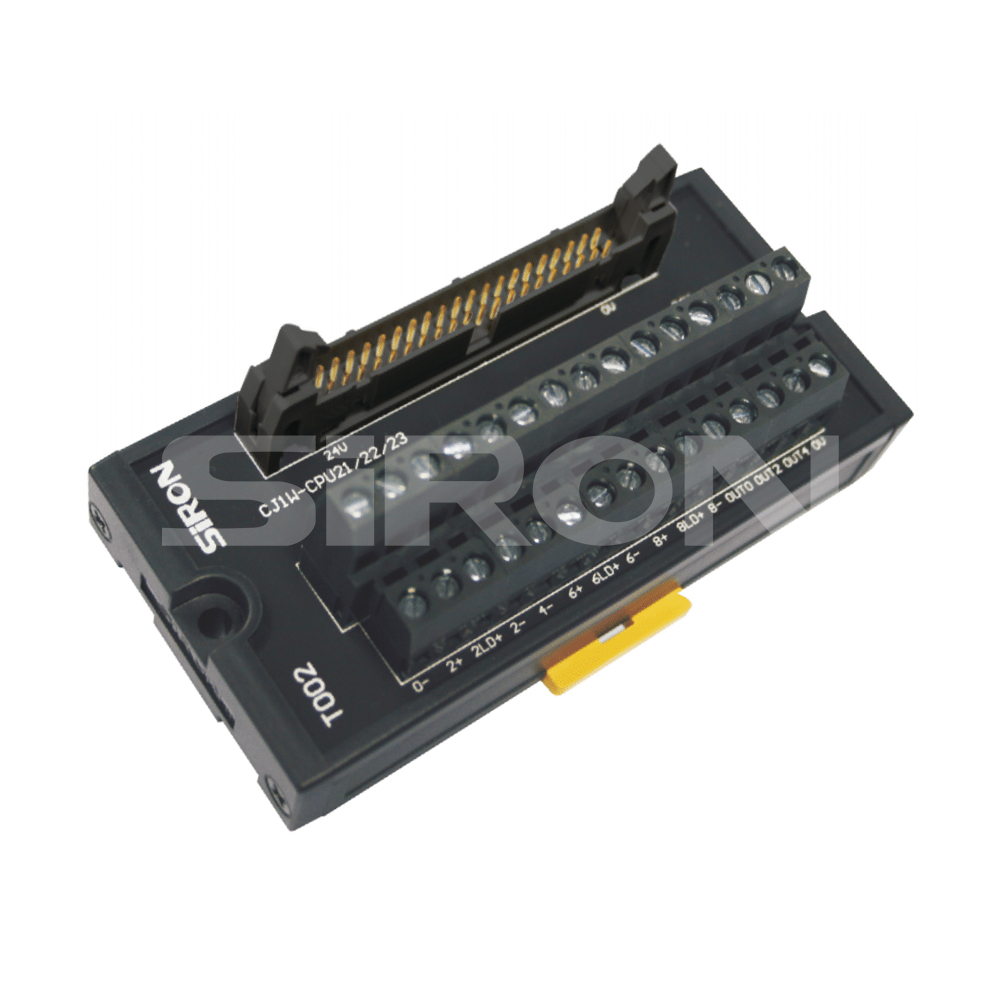

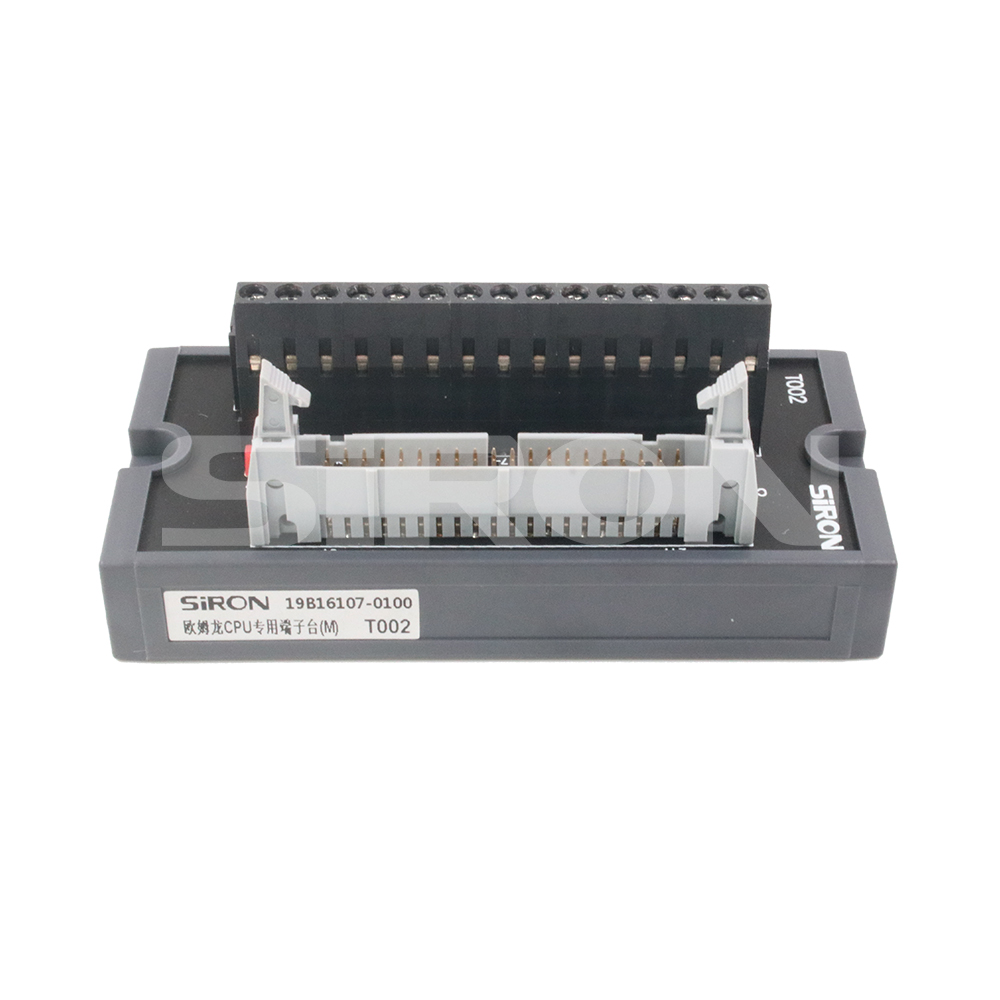

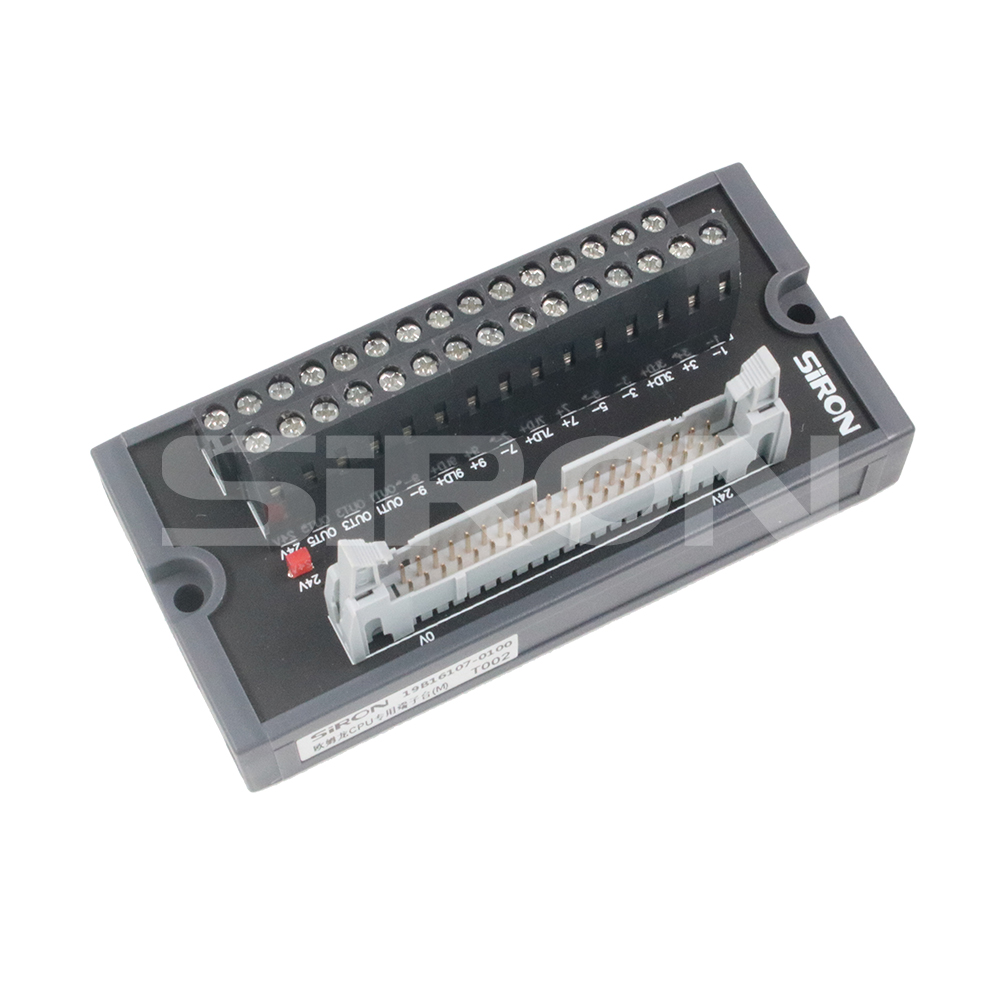

SiRON T002 Series Customized for OMRON CPU Terminal Block

Name: SiRON T002 Series Customized for OMRON CPU Terminal Block
Brand: SiRON
Rating: 5.0 (92 reviews)

Features

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

Suitable wire

主图11端子台

Suitable PLC

OMRON

CJ1M-CPU21 CJ1M-CPU22 CJ1M-CPU23

Suitable cable

Suitable cable:X210-4/X200-4,For details, please refer to the directory cable series

Specifications

lnput	Nominal operating current	1A
lnput	Nominal coil voltage	DC24V
Corresponding output Devices		The input side and output side of the load switching element

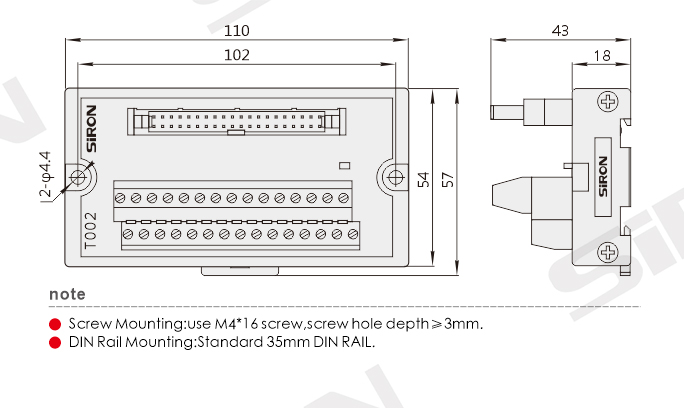

Dimensions

外形图

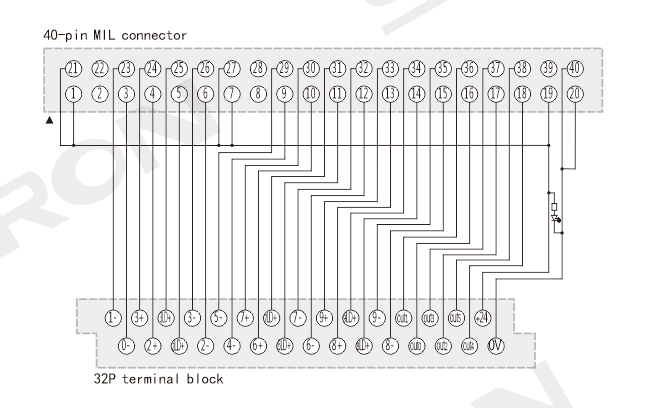

Wiring Diagram

接线图
