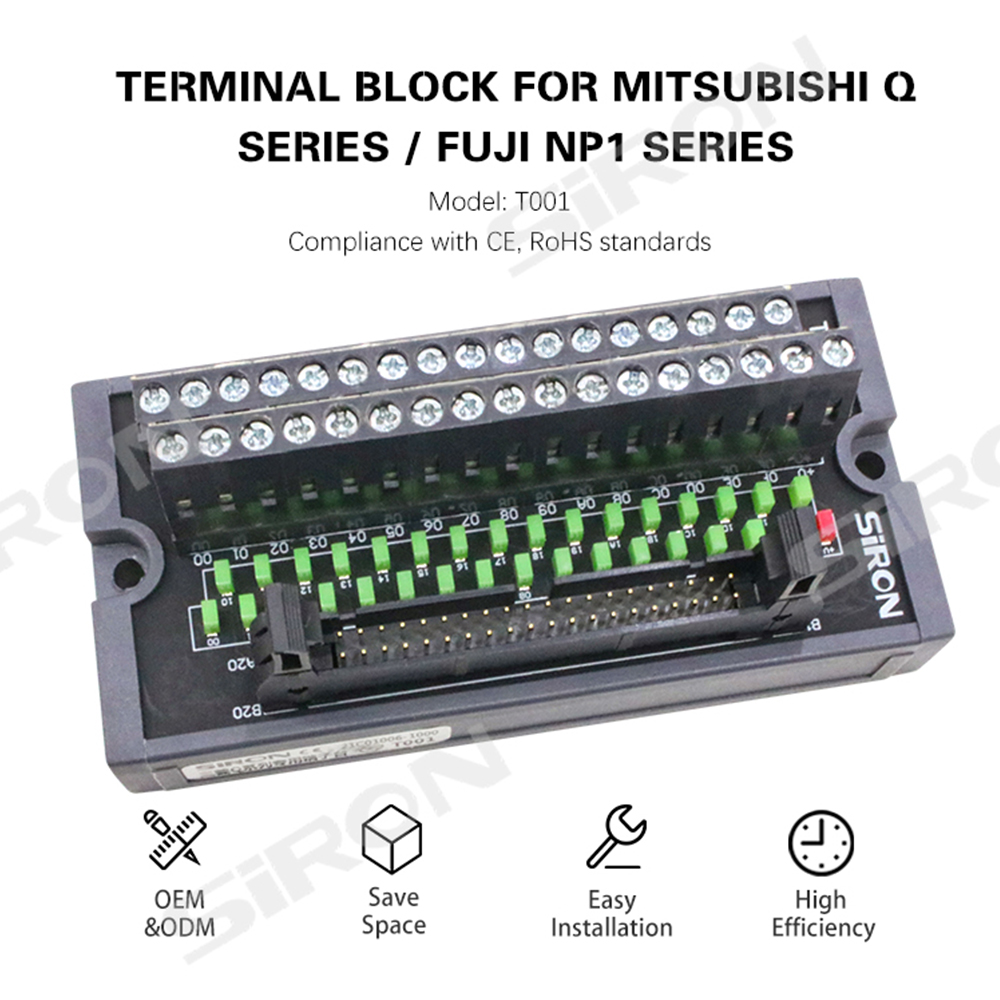

SiRON T001 Series Suitable Mitsubishi Q/Fuji 40PIN Terminal block

Name: SiRON T001 Series Suitable Mitsubishi Q/Fuji 40PIN Terminal block
Brand: SiRON
Rating: 5.0 (99 reviews)

Features

This product is applicable to the CJ1M-CPU21/22/23 module of OMRON

Notes.

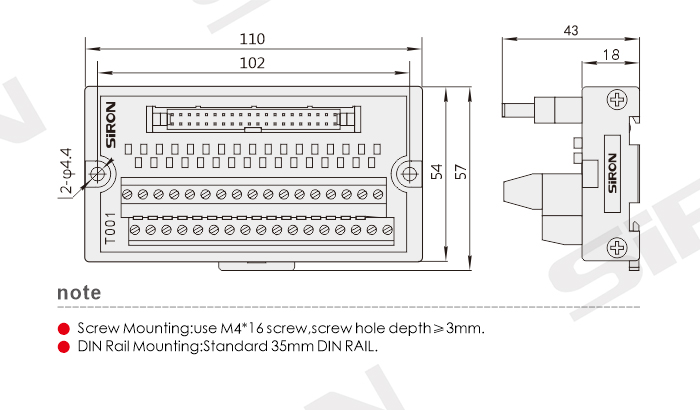

Before ordering,please confirm the PLC pin definition,choose the suitable terminal.When PLC' connection,please be sure to use the company developed and the corresponding special cable.Screw Mounting:use lM4* 16 screw,screw hole depth≥3mmDIN RailMounting:Standard 35mm DIN RAIL.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
T001
Brand:
SiRON
Code:
8536901100

NPN/PNP Terminal block T001 Terminal Connector Block Screw terminal block connector KEYENCE CPU dedicated terminal block

Product Description

Input	Nominal operating current	1A
Input	Nomina coil voltage	DC24V
Corresponding output Devices		The input side and output side of the load switching element
Suitable cable		X210-4X200-4 (For detailsplease refer to the directory cable series)
Suitable PLC (Other brands also apply)	OMRON	CJ1M-CPU21 CJ1M-CPU22 CJ1M-CPU23

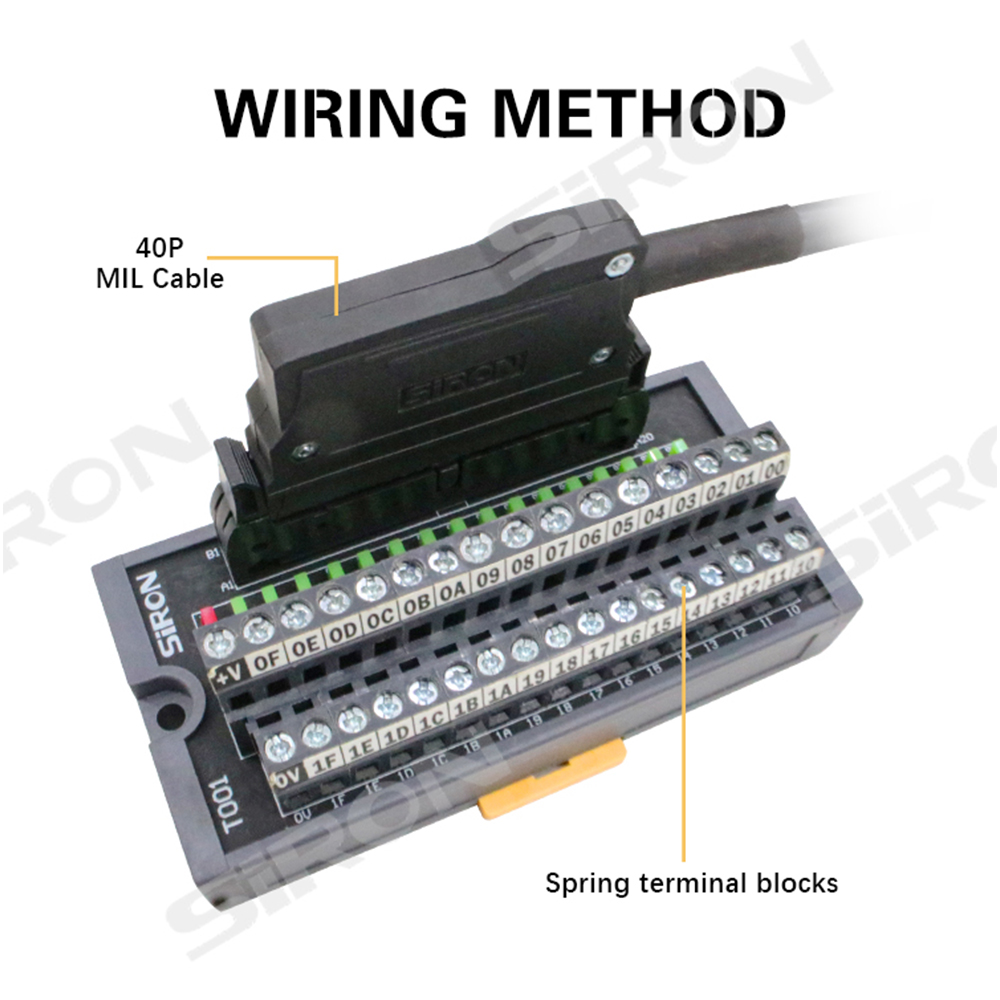

OEM&ODM Save Space Easy Installation High Efficiency	DIN Rail Mounting Screw Mounting MiL Connector Receptacle

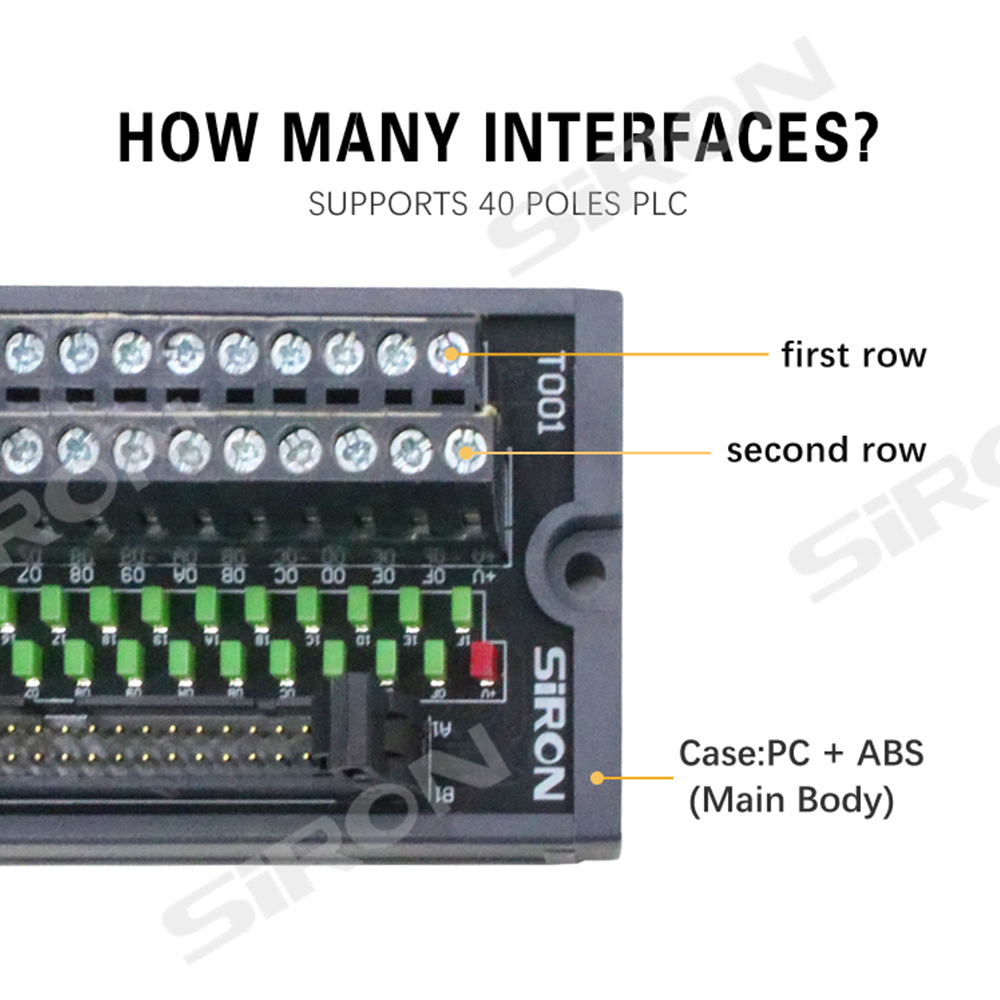

Case:PC+ABS(Main Body)	Spring terminal blocks
