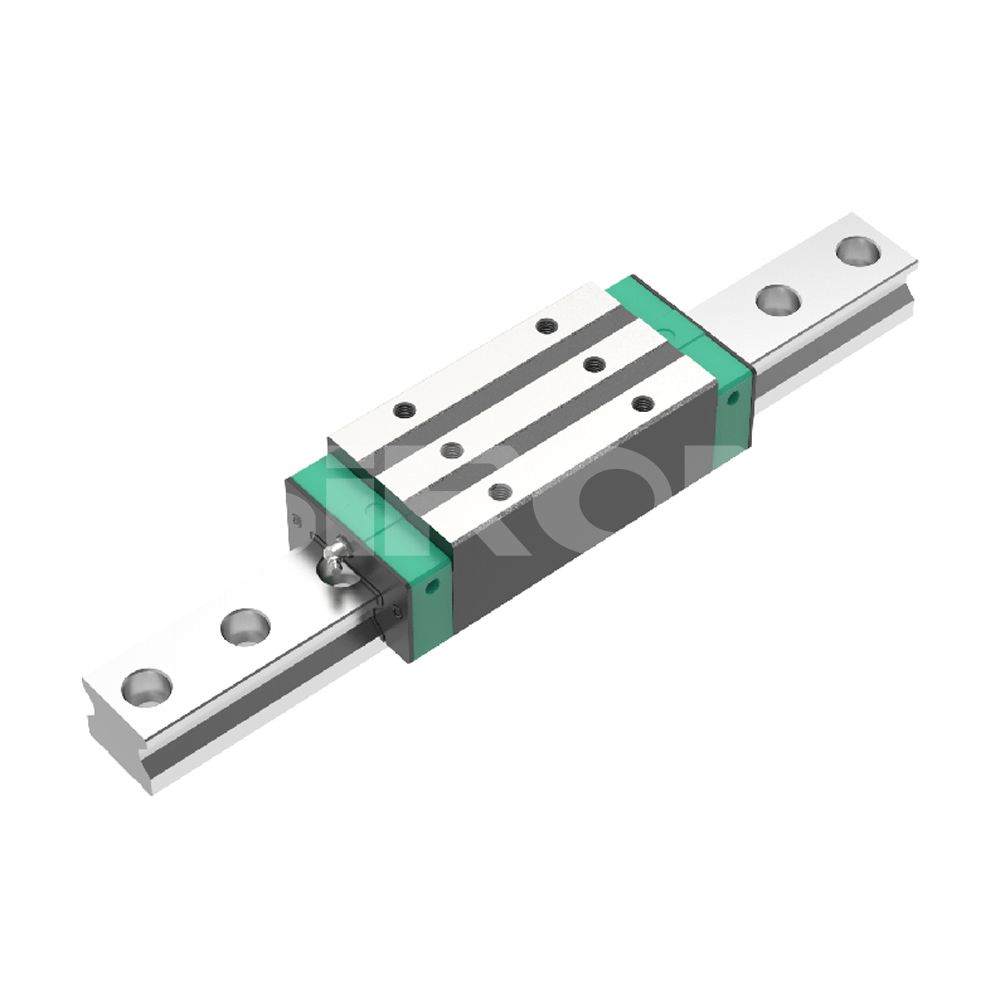

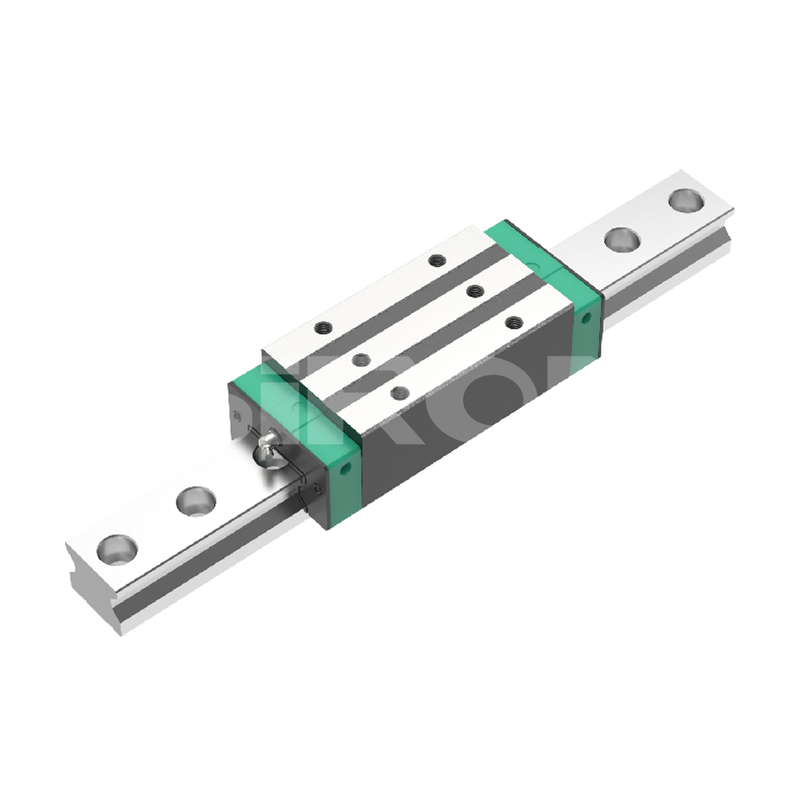

SiRON M390-RG Roller Linear Guide

About selection

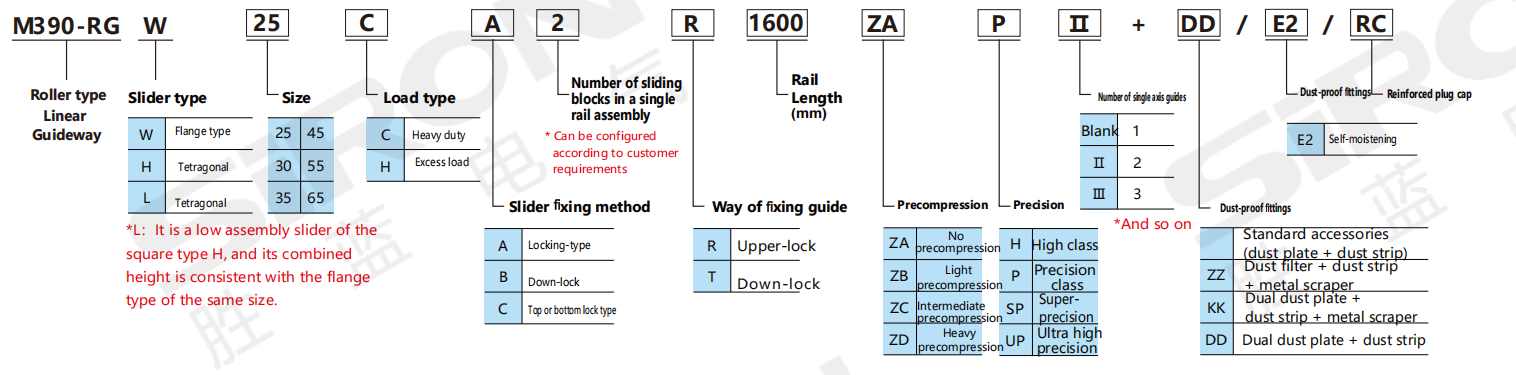

Non-interchangeable linear guide type selection

Selection example：M390-RGW25CA2R1600ZAPⅡ+DD/RC is M390-RG series, slide type is flange type, size is 25, load type is heavy load, slide block fixing mode is locked,  the number of slide blocks assembled by a single guide rail is 2,The guide rail is fixed in lock mode, the length of the guide rail is 1600mm, no prepressure, precision class,  the number of single-axis guide rails is 2, dust proof accessories (double dust plate + dust strip), and reinforced plug cover.

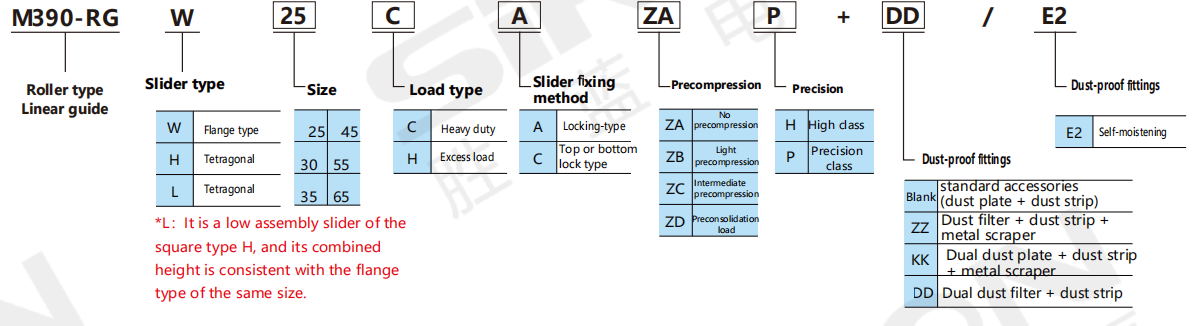

Interchangeable linear guide type selection

Selection example：M390-RGW25CAZAP+DD/E2 is M390-RG series, the slider type is flange type, the size is 25, the load type is heavy load, the slider fixing mode is locked, no preloading, precision grade,Dustproof accessories (double dustproof plate + dustproof strip), dustproof accessories are self-moistening.

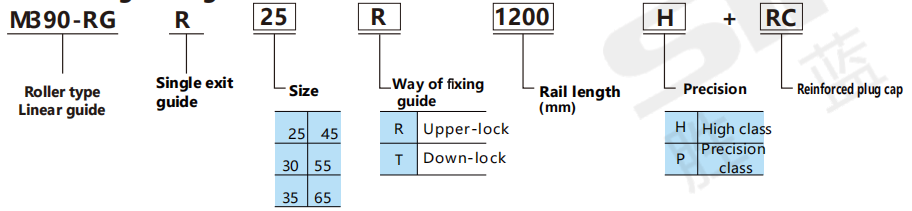

Interchangeable guide rail selection

Selection example：M390-RGR25R1200H+RC is M390-RG series, single guide rail, the size is 25,  the guide rail fixing mode is locked, the guide rail length is 1200mm, advanced, reinforced type plug cover.
