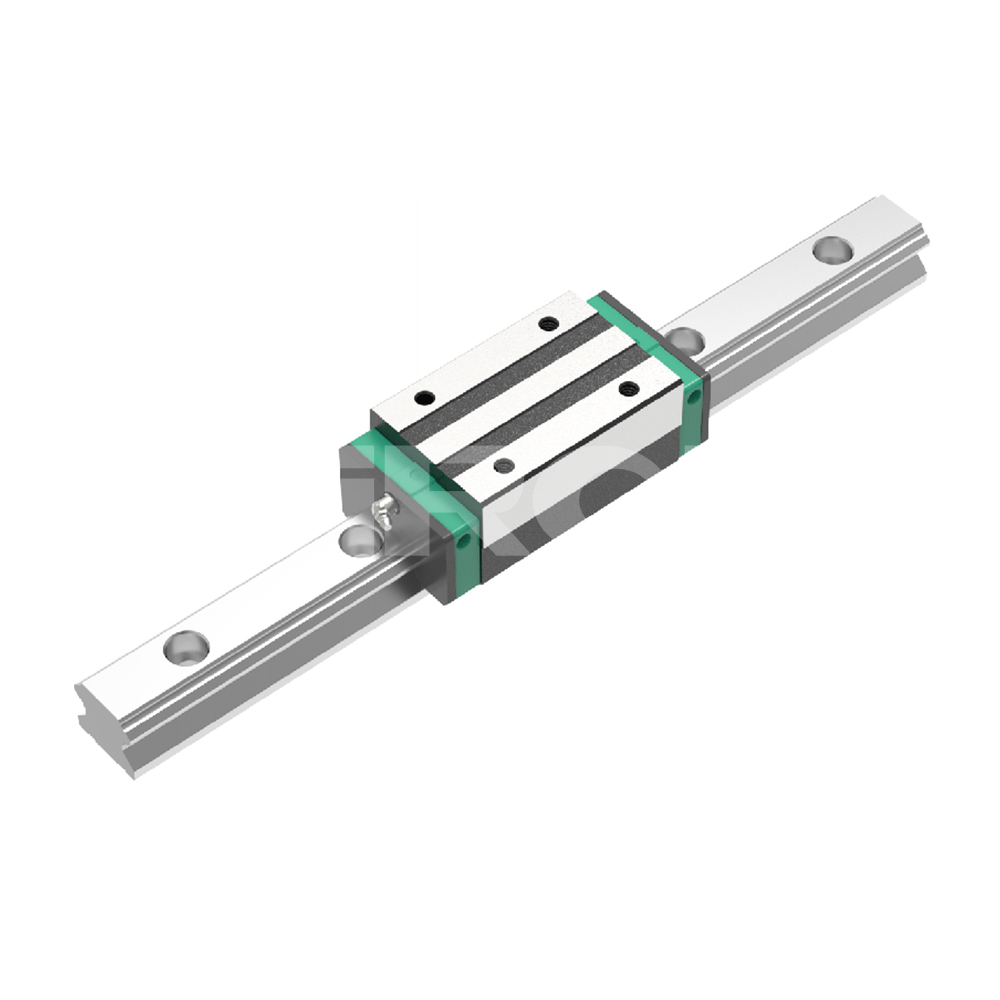

SiRON M390-QH Silent Heavy Load Ball Linear Guide

About selection

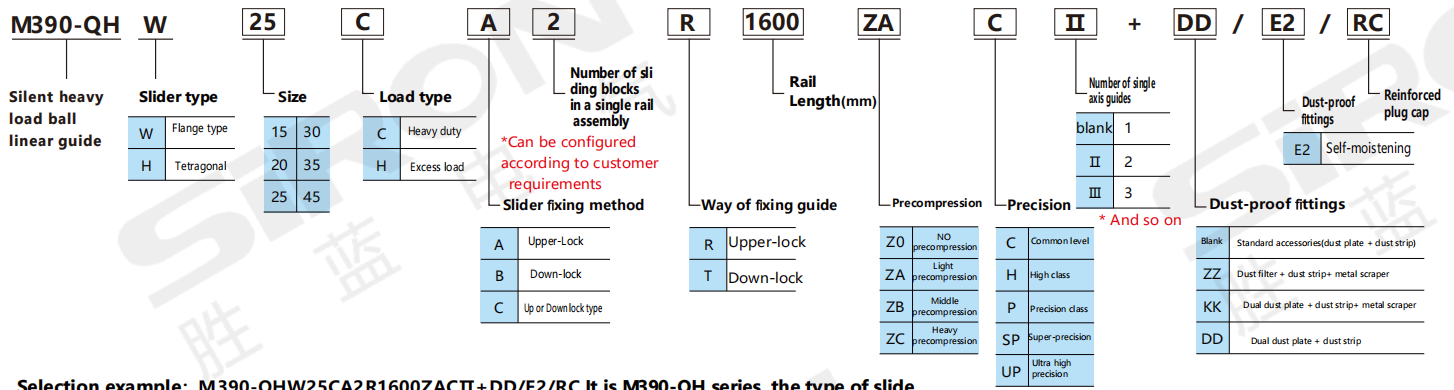

Non-interchangeable linear guide type selection

Selection example：M390-QHW25CA2R1600ZACⅡ+DD/E2/RC It is M390-QH series, the type of slide  block is flange type, the size is 25, the load type is heavy load, the fixing mode of slide block is locked, and the number of slide blocks assembled by a  single guide rail is 2.The guide rail is fixed in lock mode, the length of the guide rail is 1600mm, the length of the guide rail is light preloaded, the ordinary grade,  the number of single-axis guide rail is 2, and the dust proof accessories (double dust plate + dust strip) are self-moistening and reinforced plug cover.

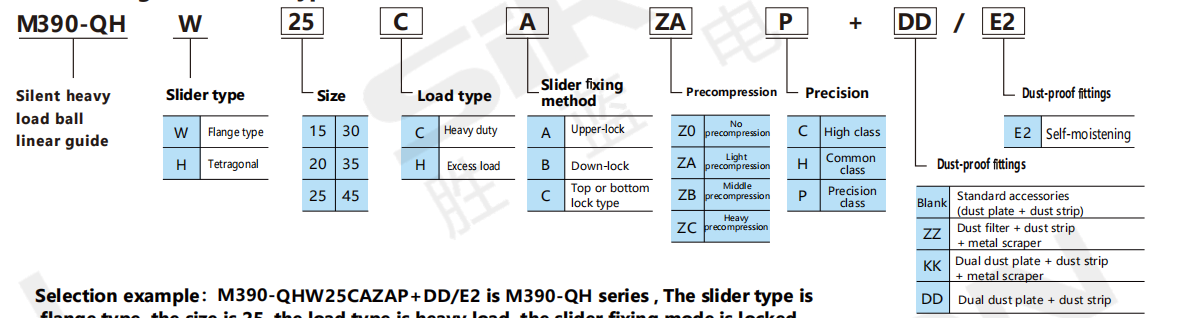

Interchangeable linear guide type selection

Selection example：M390-QHW25CAZAP+DD/E2 is M390-QH series , The slider type is  flange type, the size is 25, the load type is heavy load, the slider fixing mode is locked,  light preloading, precision grade,Dustproof accessories (double dustproof plate +  dustproof strip), dustproof accessories are self-moistening.

Interchangeable guide rail selection

Selection example：M390-QHR25R1200C+RC is M390-QH series ,Single guide rail, the size is 25, the way of fixing  the guide rail is locked, the length of the guide rail is 1200mm, ordinary class, reinforced type plug cover.
