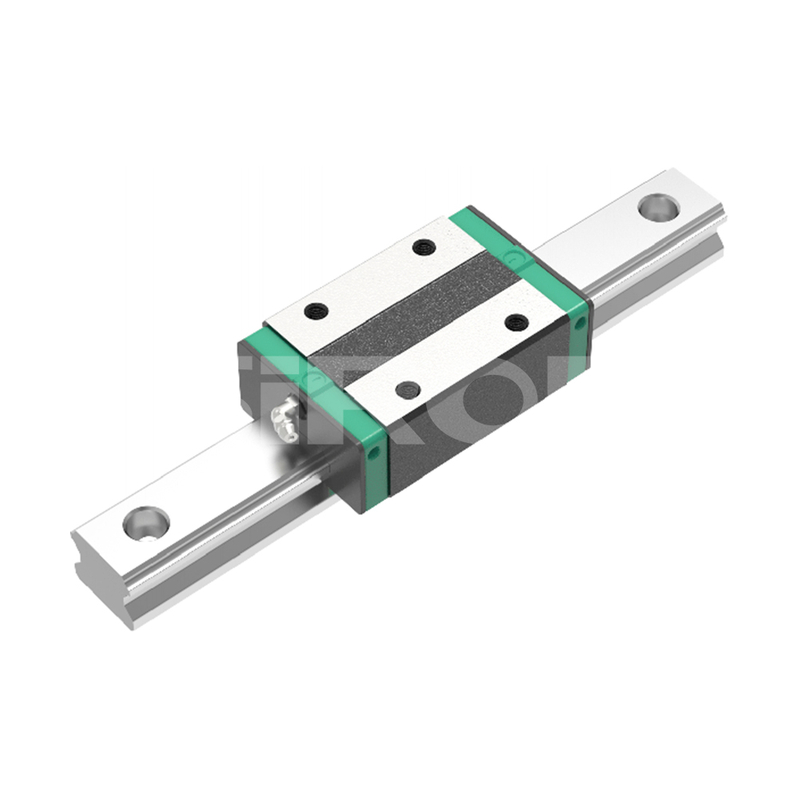

SiRON M390-QE Silent Low Group Ball Linear Guide

About selection

Non-interchangeable linear guide type selection

Selection example：M390-QEW25CA2R1600ZACⅡ+DD/RC Series, the slider type is flange type, the size is 25, the load type is heavy load, the slider fixing mode is locked,  the number of slide blocks assembled by a single guide rail is 2 The guide rail is fixed in lock mode, the length of the guide rail is 1600mm, the length of the guide rail  is light preloaded, the ordinary grade, the number of single-axis guide rails is 2, the dust proof accessories (double dust plate + dust strip), and the reinforced plug cover.

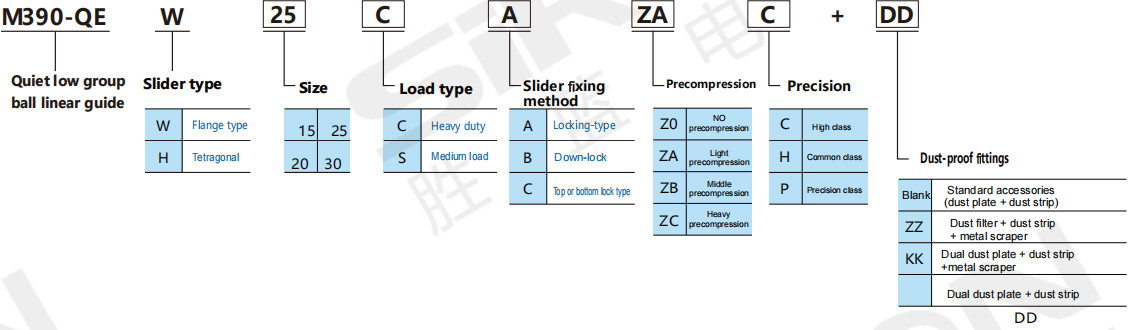

Interchangeable linear guide type selection

Selection example：M390-QEW25CAZAC+DD is M390-QESeries, the slider type is flange type, the size is 25, the load type is heavy load,  the slider fixing mode is locked, light preloading, ordinary grade Dust proof accessories (double dust plate + dust strip).

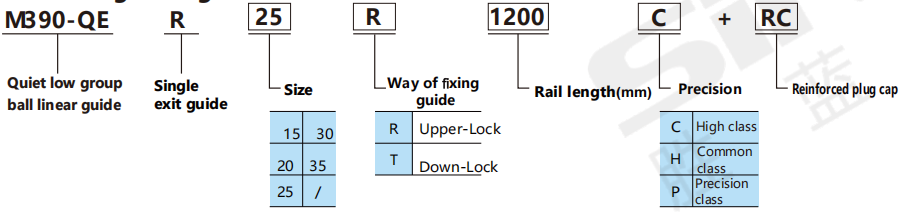

Interchangeable guide rail selection

Selection example：M390-QER25R1200C+RCis M390-QE series, single guide rail, size 25, the way of fixing the guide  rail is locked, the length of the guide rail is 1200mm, ordinary class, reinforced type plug cover.
