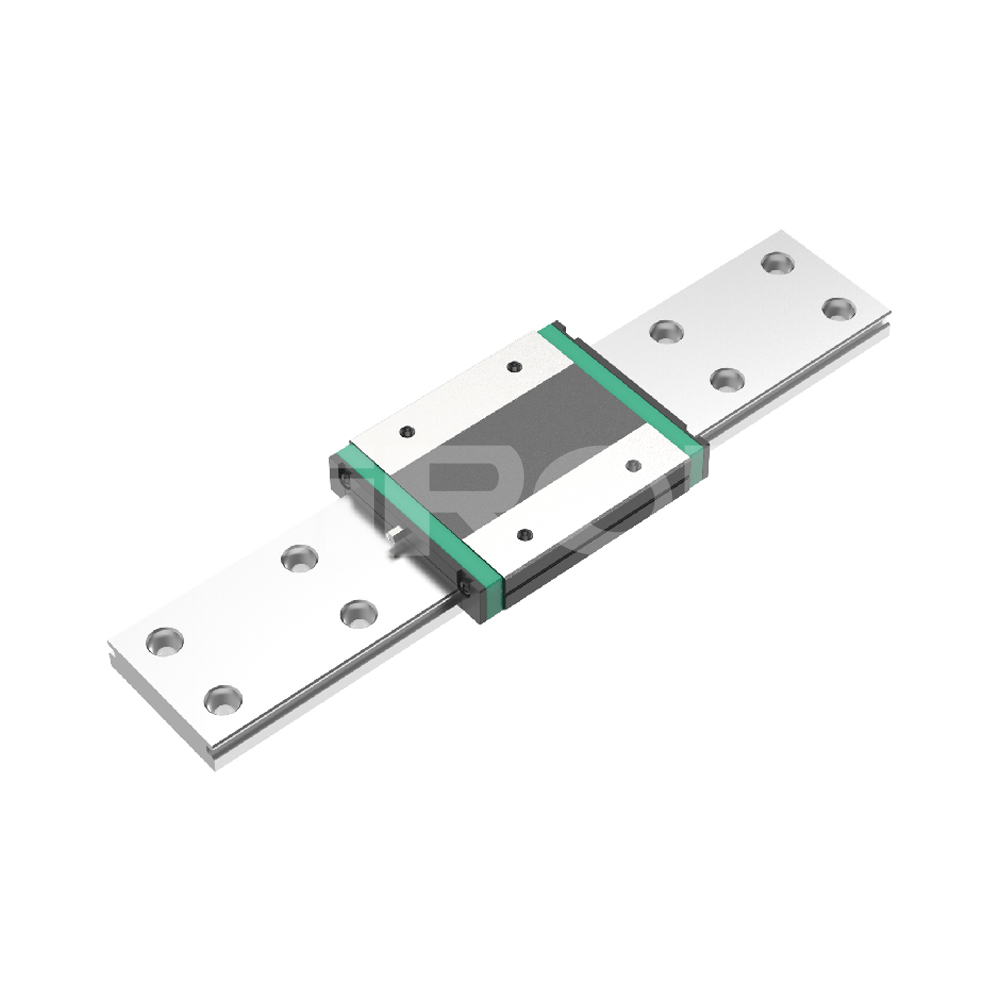

SiRON M390-MG Micro-miniature Ball Linear Guide

Name: SiRON M390-MG Micro-miniature Ball Linear Guide
Brand: SiRON
Rating: 5.0 (32 reviews)

Features

*Low friction resistance

*High positioning accuracy

*Rational mechanical structure

*High speed performance

*Easy installation and maintenance

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M390-MG
Brand:
SiRON
Code:
8466910000

Standard type Ball Linear Guide Wide type Ball Linear Guide Lengthened Ball Linear Guide

Product Description

About selection

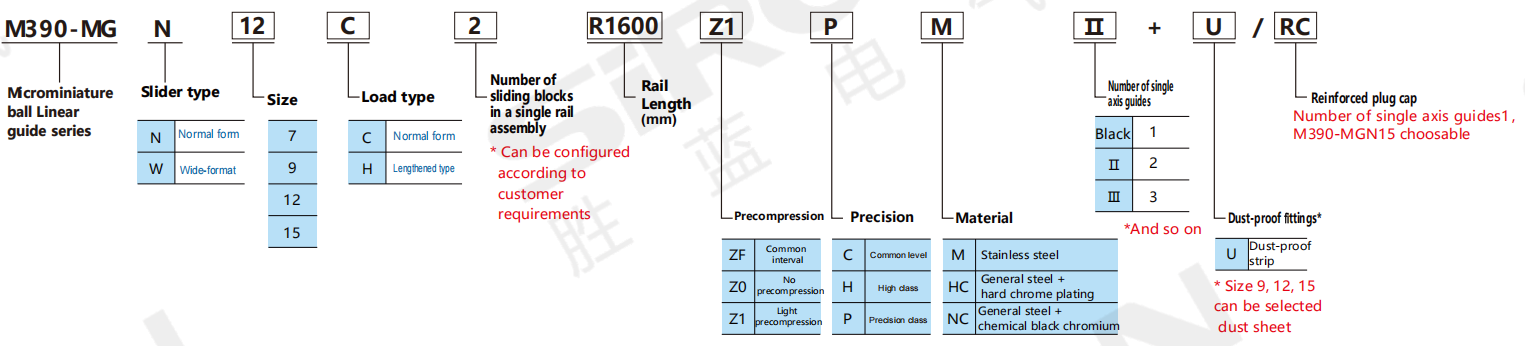

Non-interchangeable linear guide type selection

企业微信截图_17555985078629

Selection example: M390-MGN12C2R1600Z1PMⅡ+U/RC is M390-MGN series, size is 12, load type is standard, the number of sliding blocks assembled by a single guide rail is 2, the length of the guide rail is 1600mm, light preloading, precision grade , stainless steel, the number of single-axis guide rail is Ⅱ, dust strip accessories, strengthened type plug cover.

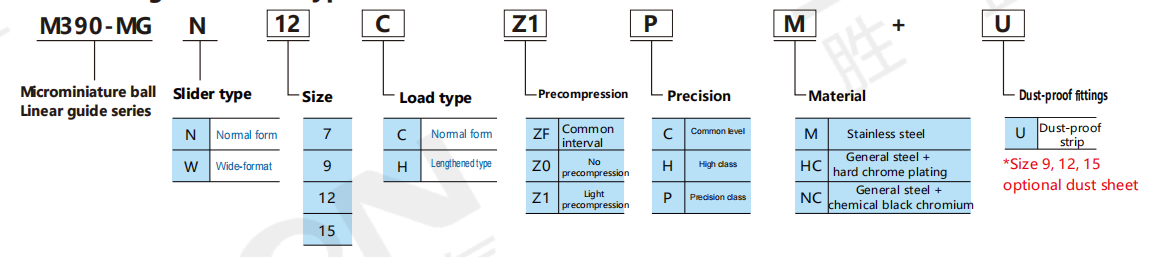

Interchangeable linear guide type selection

企业微信截图_17555985182400

Selection example：M390-M GN12CZ1PM+U is M390-MGN series， The size is 12, the load type is standard, the ordinary clearance, the accuracy is: precision, stainless steel, dust strip accessories.

Interchangeable guide rail selection

Selection example: M390-MGNR12R1600PM+RC is M390-MGN series, single guide rail, the size is 12, the length of guide rail is 1600mm, the accuracy is: precision, stainless steel, reinforced type plug cap.
